Miniature circuit breakers protect your electrical circuits from damage. You use them in homes, offices, and factories to stop problems like overloads and short circuits. If too much current flows, these devices quickly interrupt the power to keep you and your equipment safe. Unlike fuses, you can easily reset miniature circuit breakers when needed.
Key Takeaways
- Miniature circuit breakers protect electrical circuits by stopping power during overloads or short circuits and can be reset easily.
- They respond faster and more reliably than fuses, saving time and money by avoiding replacements.
- Different trip types (B, C, D) suit various needs, from homes to heavy industrial machines, so choose based on your equipment.
- Breakers come in single to four-pole options to protect different circuit setups and fit many electrical systems.
- Always match the breaker’s current, voltage, and pole ratings to your system and check for safety certifications like UL or IEC.
- You can buy breakers at local stores or online, but always verify ratings, certifications, and compatibility before purchasing.
- Install breakers safely by turning off power first and use a professional electrician for complex or risky jobs.
- Regular maintenance, including testing and cleaning, keeps breakers reliable and prevents electrical hazards.

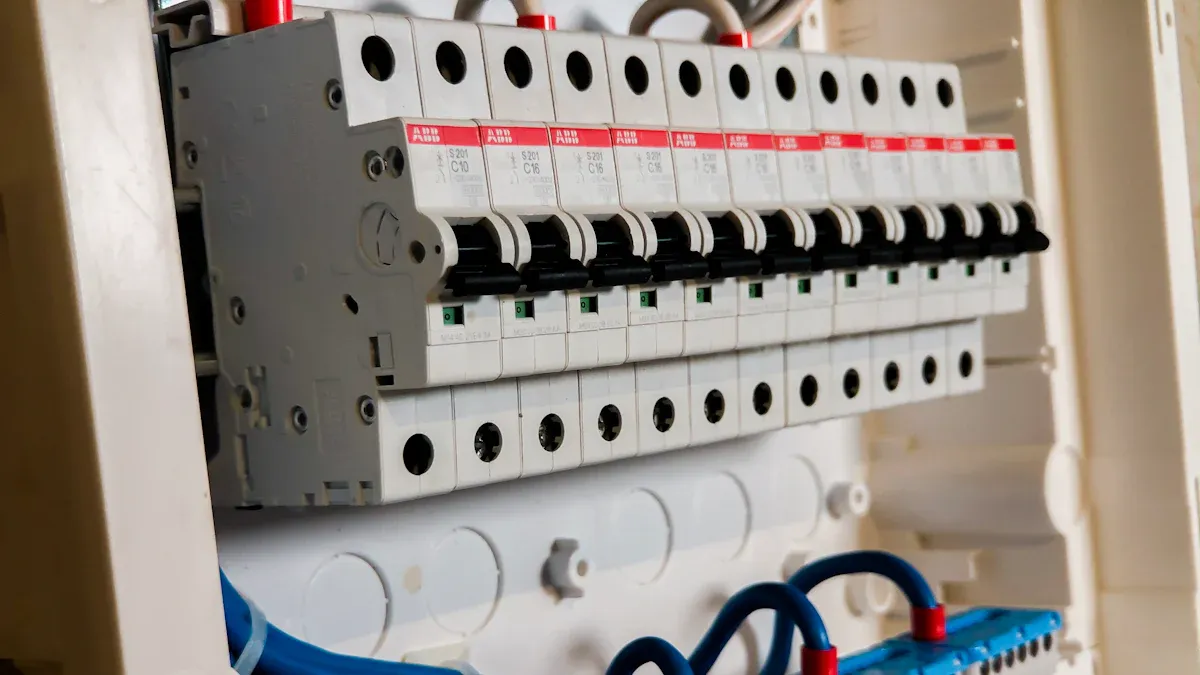

Miniature Circuit Breakers
What They Are
You use miniature circuit breakers as automatic switches that protect electrical circuits. When too much current flows or a short circuit happens, these devices stop the flow of electricity. You find them in homes, offices, and factories. Unlike fuses, you do not need to replace them after they trip. You simply reset them and restore power.
Tip: Miniature circuit breakers help you avoid the hassle of changing fuses every time there is a problem.
Key Features
Miniature circuit breakers come with several important features that make them reliable and easy to use:
- Automatic Protection: They disconnect the circuit when they detect overloads or faults.
- Reset Capability: You can reset them after they trip, which saves time and money.
- High Sensitivity: They respond quickly to changes in current, offering better protection than traditional fuses.
- Consistent Performance: They maintain reliable operation over many cycles, even in tough environments.
- Diagnostic Functions: Some models include self-testing and status indicators, so you can check their condition without removing them.
You can see how these features compare to fuses:
| Feature | Miniature Circuit Breakers | Fuses |
|---|---|---|
| Resettable | Yes | No |
| Sensitivity | High | Medium |
| Maintenance | Low | High |
| Trip Speed | Fast | Medium/Fast |
| Advanced Functions | Available | Not available |
Why They Matter
Miniature circuit breakers play a key role in keeping your electrical systems safe. They protect your home, business, or factory from fires and equipment damage caused by electrical faults. You benefit from their fast response and easy reset. In commercial buildings like offices, hospitals, and retail spaces, reliable circuit protection is essential for safety and smooth operation. In factories, these breakers handle high power loads and complex networks.
The global market for miniature circuit breakers reached $5.10 billion in 2024 and is expected to double by 2033. Most of these devices serve commercial and residential buildings, especially in regions with rapid urban growth. The majority of installations use models rated below 200 amps, which are common in homes and light commercial spaces.
- Miniature circuit breakers trip faster and more reliably than fuses.
- You can use them many times, which lowers replacement costs.
- They support advanced features like remote control and status indication.
- In industrial settings, some models have passed over 800,000 cycles of testing, showing strong reliability and reset capability.
Note: Using miniature circuit breakers helps you keep your electrical system safe, reliable, and easy to maintain.
How They Work
Main Parts
Miniature circuit breakers use two main parts to protect your electrical system: the thermal trip and the magnetic trip. Each part reacts to different problems in the circuit.
Thermal Trip
The thermal trip protects you from overloads. When too much current flows for a long time, a special metal strip inside the breaker heats up and bends. This bending action pushes a lever that opens the circuit and stops the flow of electricity. Engineers use advanced tools to study how this works. For example, they use computer models to see how heat spreads through the metal strip and how it bends under different loads. Laboratory tests show that these models match real-life results, so you can trust the design.
| Evidence Type | Description |
|---|---|
| Finite Element Analysis (FEA) | Models temperature and bending in the thermal trip unit. |
| Laboratory Prototype Testing | Confirms that the thermal trip works as designed. |
| Analytical Modeling | Helps engineers size and calibrate the metal strip for safety. |
| Thermal Loss Reduction | Shows that new designs use less power and create less heat. |
| Monolithic Construction | Fewer parts mean better reliability and easier manufacturing. |
Magnetic Trip
The magnetic trip protects you from short circuits. If a sudden surge of current happens, a small electromagnet inside the breaker creates a strong magnetic force. This force pulls a metal plunger, which quickly opens the circuit. Engineers use simulations to see how the magnetic force changes with different currents. They also test how the spring inside the breaker resets the plunger after a trip.
| Evidence Type | Description |
|---|---|
| 3D Finite Element Analysis (FEA) | Simulates the magnetic forces that move the plunger. |
| Magnetic Force-Current Relationship | Shows how higher current creates more force, causing a faster trip. |
| Spring Mechanism Behavior | Models how the spring returns the plunger after the breaker trips. |
| Material Nonlinearity Analysis | Studies how different metals affect the magnetic force and trip speed. |
Operation
You use a miniature circuit breaker by simply switching it on. When your circuit works normally, electricity flows through both the thermal and magnetic trip units. If you plug in too many devices and the current rises slowly, the thermal trip heats up and bends, opening the circuit. If a wire touches another wire and causes a short circuit, the magnetic trip reacts almost instantly, snapping the circuit open in a fraction of a second. This fast action keeps you and your equipment safe.
Resetting
After a trip, you do not need to replace anything. You just switch the breaker back to the “on” position. The internal parts reset automatically. This makes it easy for you to restore power without special tools or skills. If the breaker trips again right away, you should check for problems in your wiring or devices before resetting it.
Tip: Always find and fix the cause of a trip before you reset the breaker. This helps prevent damage and keeps your system safe.
Types of Miniature Circuit Breakers
When you choose miniature circuit breakers, you will see different types. Each type works best for certain jobs. You can pick the right one by looking at trip types, pole options, and how you plan to use them.
Trip Types
Miniature circuit breakers use trip types to control how quickly they react to electrical problems. The three main trip types are Type B, Type C, and Type D.
Type B
Type B breakers trip when the current goes above three to five times the rated value. You often use these in homes or offices. They protect lights, outlets, and small appliances. Type B gives you fast protection for sensitive devices.
Type C
Type C breakers trip when the current reaches five to ten times the rated value. You use these in places with equipment that draws more power when starting, like motors or air conditioners. Type C works well in small businesses or workshops.
Type D
Type D breakers trip at ten to twenty times the rated current. You use these for heavy machines or equipment with high starting currents, such as industrial motors or transformers. Type D is best for factories or large commercial buildings.
| Trip Type | Typical Trip Range | Common Uses |
|---|---|---|
| Type B | 3–5 × rated current | Homes, offices, lighting |
| Type C | 5–10 × rated current | Small businesses, motors |
| Type D | 10–20 × rated current | Industry, heavy machinery |
Tip: Always match the trip type to your equipment to avoid nuisance tripping or poor protection.
Pole Options
You can find miniature circuit breakers in several pole options. These include single-pole, double-pole, triple-pole, and even four-pole versions. A single-pole breaker protects one circuit. Double-pole breakers protect two circuits or both wires in a 240-volt system. Triple-pole and four-pole breakers handle three-phase systems or add a neutral connection.
Manufacturers design these breakers to fit many systems. You can use them in heating, air conditioning, or lighting. The modular design lets you mount them on DIN rails or attach them directly to panels. You do not need to change your existing setup. You can pick from adjustable trip settings, usually from 0.5 to 63 amps, or choose a fixed rating like 63 amps. This flexibility helps you protect many types of circuits.
Applications
You use miniature circuit breakers in many places. In homes, you protect lights, outlets, and kitchen appliances. In offices, you keep computers, printers, and air conditioners safe. In factories, you guard motors, pumps, and control panels. The modular design and different pole options let you install these breakers in almost any electrical system. You can quickly add or replace them without special tools.
Note: Miniature circuit breakers are compact and easy to install. You can use them right away, even in older systems.
Where They’re Used
Homes
You use miniature circuit breakers in your home to keep your family and property safe. These devices sit inside your main electrical panel. They protect every room, from your kitchen to your bedroom. When you plug in too many devices or a wire gets damaged, the breaker trips and stops the flow of electricity. You can reset it with a simple switch. Most homes use single-pole or double-pole breakers. You often see them mounted on a DIN rail inside the panel. This setup makes it easy for you to add or replace breakers when you need to upgrade your system.
Tip: Always check your electrical panel if your lights go out or an outlet stops working. A tripped breaker may be the cause.
Businesses
You find miniature circuit breakers in offices, stores, and schools. These places need reliable power for computers, lights, and air conditioning. You use breakers to protect each part of the building. For example, you might have one breaker for the lighting system and another for the server room. Businesses often use both single-pole and multi-pole breakers. You can mount them on DIN rails in commercial electrical panels. This design helps you organize and manage many circuits in one place. Some breakers have special features, like status lights or remote control, to help you monitor your system.
- Protects computers, printers, and other office equipment
- Keeps lights and HVAC systems running safely
- Allows easy upgrades and changes to your electrical setup
Industry
Factories and large buildings use miniature circuit breakers to protect heavy machines and complex systems. You need strong protection for motors, pumps, and control panels. Industrial panels often use triple-pole or four-pole breakers. You can mount these on DIN rails or special racks. Some environments, like chemical plants or food factories, need breakers that resist dust, moisture, or chemicals. You choose breakers with higher ratings for these tough jobs. You also find breakers with advanced features, such as remote monitoring or automatic reset, to keep your operations running smoothly.
Note: In industry, you must select breakers that match the power needs and safety rules for your equipment.
You can use miniature circuit breakers in almost any setting. They fit into electrical panels, mount on DIN rails, and work in special environments. You keep your home, business, or factory safe by choosing the right breaker for each job.
Choosing MCBs
What to Consider
When you choose miniature circuit breakers, you need to look at several important factors. Each factor helps you match the breaker to your electrical system and keeps everything safe.
- Current Rating: This tells you how much current the breaker can handle before it trips. You must pick a rating that matches the devices and wires in your circuit. If you choose a breaker with a rating that is too high, it may not protect your system. If you pick one that is too low, it may trip too often.
- Voltage Rating: This shows the highest voltage the breaker can safely interrupt. You need to check your system’s voltage and make sure the breaker matches it.
- Pole Number: The number of poles tells you how many wires the breaker can protect. Single-pole breakers protect one wire. Double-pole breakers protect two wires, and so on. You must match the pole number to your system.
- Interrupting Capacity: This is the highest fault current the breaker can safely stop. You need to know the possible fault current in your system and choose a breaker with a high enough interrupting capacity.
You can see the main parameters in the table below:
| Parameter | Details |
|---|---|
| Rated Current | Up to 100 A |
| Voltage Ratings | Up to 440 V (including marine applications) |
| Pole Configurations | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Breaking Capacity | Up to 25 kA |
| Application Examples | Residential, industrial, marine, rail |
| Compliance Standards | IEC, UL, CSA |
| Tripping Mechanisms | Thermal (overload) and magnetic (short circuit) |
You must also think about the environment. High temperatures or enclosed spaces can lower the breaker’s effective current rating. For example, a breaker rated at 40 A may only handle 30.5 A in a hot, closed panel. You may need to choose a higher rating to keep your system safe.
Tip: Always check the installation conditions before you pick a breaker. This helps you avoid problems and keeps your equipment safe.
Matching to System
You need to match the miniature circuit breaker to your system’s needs. Start by checking if your system uses AC or DC power. Some breakers work for both, but others do not. You should also look at the type of load, such as lights, motors, or computers. Each load may need a different trip type or pole number.
In some systems, like IT networks, you may need two-pole breakers for both the live and neutral wires. This helps protect against faults and meets safety rules. You should always follow local codes and standards when you choose a breaker.
You also need to think about the application. For homes, you may use single-pole or double-pole breakers. For factories, you may need triple-pole or four-pole breakers for three-phase equipment. Some breakers have extra features, like remote control or status lights, which help you monitor your system.
Note: Matching the breaker to your system ensures proper protection and helps prevent damage or fire.
Safety Standards
You must choose miniature circuit breakers that meet safety standards. In North America, you often see UL 489 and UL 1077 certifications.
- UL 489: This standard requires strict testing. Breakers with this mark can protect main circuits, like service panels and main boards. They must handle high fault currents and tough conditions.
- UL 1077: This standard is for supplementary protection. Breakers with this mark protect devices or sub-circuits, not the main system. They go through less strict tests but still offer good protection for smaller loads.
Manufacturers like ABB, Eaton, and Schneider Electric design breakers to meet these standards. For example, ABB’s ST 200 M series uses strong thermoplastic housing and can handle high interrupt ratings. These features help the breaker pass UL 1077 tests and work well in control panels.
You should always check for certification marks before you buy a breaker. Certified breakers go through tough tests to make sure they work safely and reliably.
- UL 489 breakers protect main circuits and must pass strict tests.
- UL 1077 breakers protect devices or sub-circuits and have lighter requirements.
- Certified breakers help you meet local codes and keep your system safe.
You should also consider the brand. Electricians and users often trust brands like Eaton, Hager, and ABB for their durability and performance. Some brands, like Legrand, may have issues with dust or test buttons. Others, like LC or Kanlux, may fail more often. Proper installation and regular checks also help your breaker last longer.
Tip: Always choose certified breakers from trusted brands. This helps you avoid problems and keeps your electrical system safe.
Where to Find Miniature Circuit Breakers
Local Stores
You can find miniature circuit breakers at many local stores. Hardware stores often carry them in the electrical aisle. You may also visit electrical supply shops. These stores usually have a wider selection and staff who can answer your questions. Some home improvement centers stock popular brands and sizes. When you shop in person, you can look at the packaging and check the ratings. You can also ask for help if you are not sure which breaker fits your needs.
Tip: Bring a photo or the old breaker with you. This helps store staff find the right match for your panel.
Online
You can buy miniature circuit breakers from many online retailers. Large websites like Amazon and Home Depot offer a wide range of options. You may also visit specialty electrical supply websites. These sites often list detailed product information, such as current rating, voltage, and certifications. Shopping online lets you compare brands and prices quickly. You can read reviews from other buyers to see how well each breaker works. Some manufacturers sell directly from their own websites, which can help you find the latest models.
Here is a table of common online sources:
| Online Retailer | Features |
|---|---|
| Amazon | Wide selection, fast shipping |
| Home Depot | Trusted brands, store pickup |
| Grainger | Industrial-grade products |
| ONESTOP Manufacturer Website | Latest models, full specs |
Note: Always check the return policy before you buy online. This helps if you order the wrong size or type.
Buying Tips
When you buy miniature circuit breakers, you need to check a few key things. Look at the current and voltage ratings on the label. Make sure the breaker matches your system. Check for safety certifications, such as UL or IEC marks. These show that the breaker passed important safety tests. Choose a reliable supplier or brand. Trusted brands often last longer and work better. If you buy online, read the product description and reviews. Make sure the breaker fits your panel and meets your local code.
- Check ratings and certifications before you buy.
- Compare prices and features from different sellers.
- Choose trusted brands for better safety and performance.
- Ask questions if you are not sure which breaker to pick.
Tip: Never use a breaker that does not match your system’s needs. The right choice keeps your home or business safe.
Installation and Care

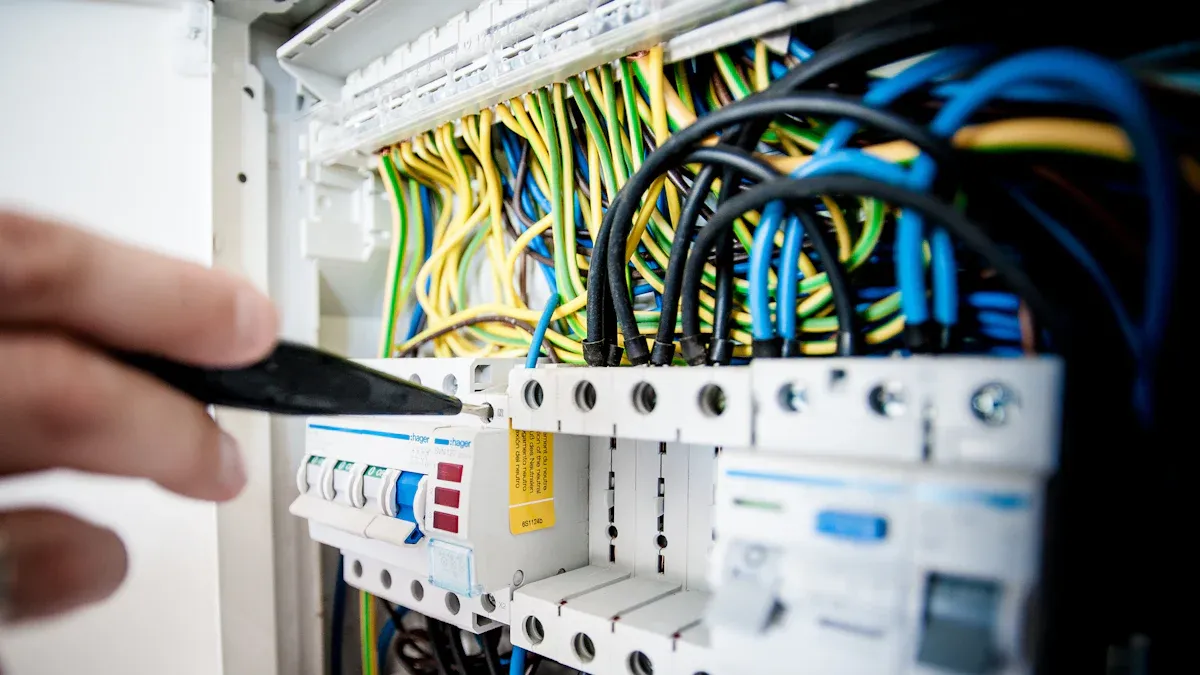

Basic Steps
You can install a miniature circuit breaker safely by following a few important steps. First, always turn off the main power before you start. This keeps you safe from electric shock. Next, use a lockout device to make sure no one turns the power back on while you work. You should check that the breaker matches your panel and system. Place the breaker onto the DIN rail or panel slot. Make sure it fits tightly and lines up with the other breakers. Connect the wires to the correct terminals. Tighten each screw to the manufacturer’s recommended torque. After you finish, double-check all connections. Turn the main power back on and test the breaker by switching it on and off.
Tip: Always use insulated tools and wear safety gloves when working with electrical panels.
When to Call a Pro
Some jobs need a licensed electrician. You should call a professional if you feel unsure about any step. If your panel looks old or damaged, a pro can check for hidden problems. You also need expert help for three-phase systems or when you add new circuits. Electricians know how to follow local codes and safety rules. They use special tools to test the system after installation. A professional can spot issues that you might miss, such as loose connections or faulty wiring.
| Situation | What You Should Do |
|---|---|
| Unsure about wiring | Call a licensed electrician |
| Upgrading main service panel | Hire a professional |
| Installing in commercial/industrial | Use expert services |
| Signs of damage or overheating | Get a safety inspection |
Note: Never try to fix a breaker if you see burn marks, melted parts, or a strong smell. These signs mean you need a professional right away.
Maintenance
You keep your miniature circuit breakers working well by following a regular maintenance schedule. Start by recording the initial settings and configuration in a digital logbook. You should test the breaker’s trip function every two years under normal conditions. Use software tools to automate testing and reduce mistakes. Share digital test reports with your team to keep everyone informed.
You can follow these routine checks:
- Inspect the breaker visually for dust, corrosion, or loose wires.
- Test overcurrent detection and mechanical operation.
- Perform insulation resistance testing before returning a breaker to service.
- Use contact resistance testing to find early signs of wear or contamination.
- Run thermographic inspections to spot hot spots from bad connections.
- Clean the breaker and remove any debris.
- Lubricate moving parts to prevent sticking or failure.
- Tighten all electrical connections and record the torque values.
Maintenance schedules depend on the breaker type and environment. Low-voltage breakers need checks every one to three years. Medium-voltage breakers need annual inspections. High-voltage breakers require checks every six months. You should keep digital records of all tests, cleaning, lubrication, and repairs. This helps you track the health of your breakers and plan future maintenance.
Tip: Following a set maintenance plan helps you avoid unexpected failures and keeps your electrical system safe.
Miniature circuit breakers help you protect your electrical system from overloads and short circuits. You can choose the right one by checking ratings, certifications, and matching it to your needs. These devices support smart grids and improve safety in homes, businesses, and factories. Their digital features reduce outages and support cleaner energy. If you face complex wiring or large systems, ask a professional for help.
| Market Aspect | Details |
|---|---|
| Market Size (2024) | USD 20.92 billion |
| Projected Size (2034) | USD 30.15 billion |
| Key Role | Improves safety, reduces outages |
| Top Application Sectors | Residential, commercial, industrial |
Tip: Always follow safety rules and check your breaker regularly to keep your system reliable.
FAQ
What does a miniature circuit breaker do?
You use a miniature circuit breaker to stop too much electricity from flowing in a circuit. It protects your wires and devices from damage caused by overloads or short circuits. You can reset it after it trips.
What types of miniature circuit breakers can you find?
You can find Type B, Type C, and Type D miniature circuit breakers. Each type works best for different jobs. Type B protects homes, Type C fits small businesses, and Type D handles heavy machines.
What should you check before buying a miniature circuit breaker?
You should check the current rating, voltage rating, and number of poles. Look for safety certifications like UL or IEC. Make sure the breaker matches your electrical panel and system.
What happens if your breaker keeps tripping?
If your breaker trips often, you may have too many devices on one circuit or a wiring problem. You should unplug some devices or call an electrician to check for faults.
What is the difference between a fuse and a miniature circuit breaker?
A fuse melts and needs replacing after it trips. A miniature circuit breaker just switches off. You can reset it and use it again. This saves you time and money.
What maintenance does a miniature circuit breaker need?
You should inspect your breaker for dust or loose wires. Test its trip function every two years. Clean it and tighten connections. If you see damage, call a professional.
What should you do if you see burn marks on your breaker?
You should turn off the power right away. Do not touch the breaker. Call a licensed electrician to check your panel. Burn marks mean a serious problem.
What are the main brands of miniature circuit breakers?
You can find trusted brands like ABB, Eaton, Siemens, and Schneider Electric. These brands offer reliable products that meet safety standards.
