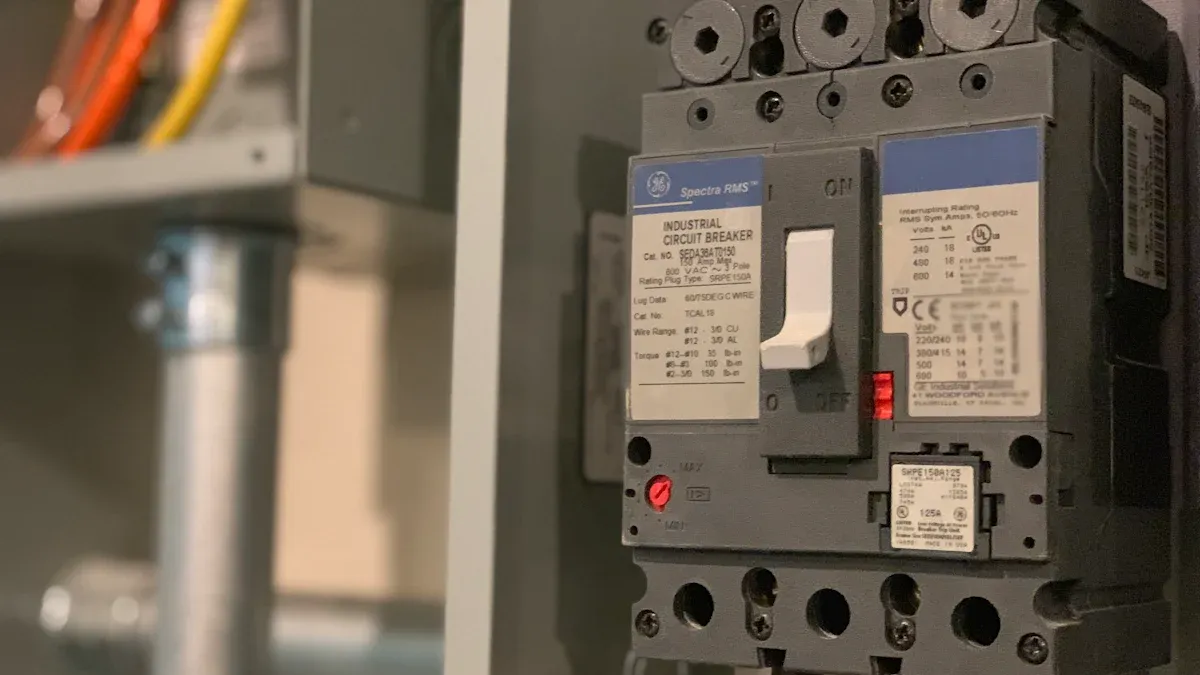

A bipolar circuit breaker disconnects both the live and neutral wires at the same time when it detects a fault. You use this device to protect AC circuits from overloads or short circuits. This type of breaker keeps you safe by cutting off power fully, which helps prevent electric shocks and equipment damage. You find bipolar circuit breakers in homes, offices, and factories because they offer strong protection for many types of electrical systems.
Key Takeaways
- A bipolar circuit breaker disconnects both live and neutral wires simultaneously to protect electrical circuits from overloads and short circuits.
- This breaker offers better safety than single-pole breakers by fully cutting off power, reducing the risk of electric shock and equipment damage.
- Bipolar breakers come in various types and ratings to fit different systems, including homes, commercial buildings, and industrial plants.
- The internal mechanism links two switches that open together instantly when a fault is detected, ensuring complete disconnection.
- These breakers protect against overloads and short circuits quickly and reliably, even in noisy or complex electrical environments.
- Choosing the right breaker involves matching voltage, current rating, breaking capacity, and trip curve to your specific load and system.
- Proper installation and regular maintenance are essential to ensure the breaker works safely and lasts a long time.
- If your breaker trips often or won’t reset, check for wiring issues, correct ratings, or call a licensed electrician for help.
Definition
Bipolar Circuit Breaker Basics
A bipolar circuit breaker protects your electrical system by disconnecting both the live and neutral wires at the same time. You use this device to stop the flow of electricity when it senses a problem, such as an overload or a short circuit. This action helps keep you and your equipment safe.
Tip: You can find bipolar circuit breakers in many types, including thermal-magnetic, hydraulic-magnetic, and digital models. Each type uses a different method to detect and stop faults.
Here are some important features you should know about bipolar circuit breakers:
- They are two-pole devices that interrupt current in both wires.
- You can choose from models with current ratings from 0.1 A up to over 125 A.
- Voltage ratings cover both AC and DC systems, such as 230 V AC or up to 1000 V DC.
- Trip mechanisms include thermal, magnetic, and hydraulic-magnetic types.
- You can find options with manual reset, automatic, or modular designs.
- Many models offer plug-in terminals and different mounting options for easy installation.
- These breakers meet safety standards like IEC60947-2, which ensures reliable operation.
A bipolar circuit breaker works in many settings. You might use one in your home, in a commercial building, or in an industrial plant. Some models, like the hydraulic-magnetic D2P series, offer a primary current range from 0.5 A to 70 A and come with different trip curves for various needs.
Comparison with Single-Pole Breakers
You may wonder how a bipolar circuit breaker differs from a single-pole breaker. The main difference lies in how each device controls the flow of electricity.
| Feature | Bipolar Circuit Breaker | Single-Pole Breaker |
|---|---|---|
| Number of Poles | 2 | 1 |
| Wires Disconnected | Live and Neutral (or both phases) | Only Live |
| Protection Level | Higher (disconnects both wires) | Lower (disconnects one wire) |
| Typical Use | 240V circuits, AC/DC systems | 120V circuits, basic loads |
| Safety | Prevents electric shock and equipment damage | May leave neutral energized |
When you use a single-pole breaker, it only disconnects the live wire. The neutral wire stays connected, which can leave parts of the circuit energized. In contrast, a bipolar circuit breaker disconnects both wires at once. This feature gives you better protection, especially in systems where both wires carry current.
Bipolar circuit breakers also play a key role in advanced electrical systems. For example, in inverter circuits, bipolar switching helps create a smooth output voltage. This process uses special switching methods to control the flow of electricity and keep your devices running safely.
Note: You should choose a bipolar circuit breaker when you need to protect both wires in a circuit or when safety codes require full disconnection.
How It Works
Internal Mechanism
A bipolar circuit breaker uses a special design to disconnect both the live and neutral wires at the same time. You can see this in the way the internal mechanism links two switches together. When a fault happens, both switches open together. This action stops all current flow and keeps your circuit safe.
Simultaneous Disconnection
You get full protection because the breaker disconnects both wires at once. The internal parts include a pair of contacts for each pole. These contacts connect to a shared tripping mechanism. When the breaker senses a problem, it moves both sets of contacts apart at the same time. This prevents any part of the circuit from staying energized.
When you use a bipolar circuit breaker, you lower the risk of electric shock and equipment damage. The design ensures that no current can flow through either wire after a trip.
Tripping Process
The tripping process starts when the breaker detects too much current or a short circuit. Inside, a sensor reacts to the fault. This sensor can be thermal, magnetic, or a mix of both. The sensor triggers the tripping mechanism, which forces the contacts open. Both poles disconnect instantly.
Performance data from short-circuit tests show how well this process works. During a fault, the magnetic field near the breaker rises quickly. The peak magnetic field strength can reach 109 A/m, with a maximum rising rate of about 350 A/m/ms. The breaker interrupts the fault current right when the magnetic field peaks. This shows that the breaker acts fast and reliably to protect your equipment.
Some advanced breakers use hybrid technology. These combine mechanical switches with electronic controls. The electronic part redirects the fault current and reduces arcing when the contacts open. This makes the breaker safer and more durable.
- Hybrid DC circuit breakers use mechanical switches and power electronics to prevent arcing.
- The breaker redirects fault current back to the source, which lowers arcing and voltage spikes.
- A surge arrester sits in parallel with the switch. It absorbs extra energy and protects the contacts.
- Tests show that these features help the breaker interrupt faults with less arcing and lower voltage stress.
Other research looks at how air and heat move inside the breaker. Engineers use simulations to study fluid flow, heat transfer, and arc movement. They find that adding dual air outlets and special splitter plates improves gas flow and heat transfer. These changes help the breaker handle faults better and stay safe.
- Simulations show how airflow and magnetic forces affect arc movement.
- Improved designs with dual air outlets and splitter plates increase pressure and heat transfer.
- These upgrades lower arc energy and make the breaker safer.
- Tests confirm that these changes work well in real breakers.
Overload and Short-Circuit Protection
You rely on a bipolar circuit breaker to protect against both overloads and short circuits. The breaker senses when current goes above safe levels. It then trips and disconnects both wires. This keeps your wiring and devices safe from damage.
The table below shows how effective these breakers are at protecting your system:
| Parameter | Value / Description |
|---|---|
| Fault detection capability | Up to 900 Ω fault resistance in grid-integrated mode; up to 1,300 Ω in islanded mode |
| Operating time | 0.64 milliseconds (ms), independent of fault resistance |
| Noise robustness | Effective operation under noisy conditions with SNR of 40 dB |
| Immunity to external faults | No false tripping during AC side faults or close-in external faults |
| Selectivity in non-fault conditions | No malfunction during grid outages, load switching, DG uncertainties, or line disconnections |
| Real-time validation | Confirmed by OPAL-RT simulator with consistent fault detection and trip signaling |
| Comparative performance | Faster and more sensitive than existing methods; superior stability and adaptability in both modes |
You can see that the breaker works fast, even in noisy or complex systems. It avoids false trips and only acts when a real fault happens. This makes it a reliable choice for protecting your circuits.
Tip: Hydraulic magnetic and hybrid types offer even more precise protection. They work well in both AC and DC systems and handle tough conditions without losing accuracy.
Features
Poles and Ratings
You can identify a bipolar circuit breaker by its two-pole design. This means the breaker disconnects both the live and neutral wires at the same time. You often see these breakers rated for different voltages and currents. The table below shows common specifications:
| Parameter | Specification Details |
|---|---|
| Rated Voltage | 240/415V AC |
| Rated Current | Options from 10A to 63A |
| Breaking Capacity | 6 kA |
| Frequency | 50/60 Hz |
| Number of Poles | 2 (Bipolar) |
| Trip Curve | B, C, or D depending on model |
| Operating Temperature | -5°C to +40°C |
| Mounting Type | DIN Rail (35mm) |
| Standards Compliance | IEC 60898-1, IEC 60947-2 |
You can choose a breaker with the right current and voltage rating for your needs. The trip curve tells you how quickly the breaker will react to different fault levels. For example, a B-curve trips faster than a D-curve. You also need to check the breaking capacity, which shows how much fault current the breaker can safely interrupt.
ABB and other manufacturers offer a wide range of bipolar circuit breakers. These products meet strict safety standards and come in different models for homes, factories, and special uses. You can find breakers with high breaking capacity and special trip curves for motors or sensitive equipment.
Standards and Compliance
You want to make sure your breaker meets international safety standards. Bipolar circuit breakers often comply with IEC 60898-1 and IEC 60947-2. These standards set rules for performance, safety, and reliability. When you see these marks, you know the breaker has passed tough tests for electrical safety.
Always check for compliance labels before you install a breaker. This helps you avoid unsafe products and ensures your system meets local codes.
Manufacturers test their breakers using advanced simulations and real-world trials. For example, some hybrid HVDC circuit breakers use MATLAB Simulink® to prove their fast interruption times and safe operation. These tests show that the breaker can stop a fault in less than 1.8 milliseconds and reset in under 3 milliseconds.
Design and Installation
You will notice that bipolar circuit breakers use a compact design. Most models fit on a standard 35mm DIN rail, which makes installation easy in most panels. The two-pole layout keeps wiring simple and clear. You connect one wire to each terminal, and the breaker handles both at once.
Some advanced designs use hybrid technology. These breakers combine mechanical switches with electronic parts like Insulated Gate Bipolar Transistors (IGBTs) and surge arresters. This setup manages energy during a fault and prevents dangerous electric arcs. Current-limiting inductors slow the rise of fault current, giving you extra protection.
- Fast interruption time (less than 1.8 ms)
- Quick reset (under 3 ms)
- Efficient energy management with IGBTs and surge arresters
- Instant commutation of fault current to prevent arcing
- Current-limiting inductors for safer operation
You can trust these features to keep your system safe and reliable. Always follow the manufacturer’s instructions for mounting and wiring. Proper installation ensures the breaker works as designed and protects your equipment.
Specifications
Voltage and Current Range
You can find bipolar circuit breakers with a wide range of voltage and current ratings. These ratings help you match the breaker to your system’s needs. Most miniature circuit breakers (MCBs) work at low voltages, usually less than 1,000 volts AC. Their current ratings go up to 125 amperes. Molded case circuit breakers (MCCBs) also operate below 1,000 volts but can handle much higher currents, up to 1,600 amperes. For larger systems, low-voltage power circuit breakers can manage several hundred to thousands of amperes.
| Circuit Breaker Type | Voltage Rating Range | Current Rating Range |
|---|---|---|
| Miniature Circuit Breaker (MCB) | < 1,000 VAC | Up to 125 A |
| Molded Case Circuit Breaker (MCCB) | < 1,000 VAC | Up to 1,600 A |
| Low-voltage Power Circuit Breaker | < 1,000 VAC | Several hundred to thousands A |
| Medium-voltage Circuit Breaker | Up to 40,500 V | Up to 6,300 A or higher |
| Bipolar DC Circuit Breaker (HVDC) | ±350 kV (DC systems) | Several kA |
You may also see bipolar circuit breakers in high-voltage DC (HVDC) systems. These can operate at ±350 kV and handle very large currents. This makes them suitable for power transmission and industrial uses.
Tip: Always check the voltage and current ratings before you choose a breaker. Using the wrong rating can lead to unsafe conditions.
Breaking Capacity
Breaking capacity tells you how much fault current a breaker can safely interrupt. This value is important because it shows the maximum current the breaker can stop without damage. You need to select a breaker with a breaking capacity higher than the possible fault current in your system.
You can use the following table to understand the key aspects of breaking capacity and related performance:
| Specification Aspect | Quantitative Measure / Description |
|---|---|
| Fault current capacity | Must be less than the DC circuit breaker (DCCB) capacity |
| Fault current estimation accuracy | Deviation as low as 3.15% with AC infeed considered |
| Impact factors | Submodule capacitance, number of submodules, control modes |
| Fault detection speed (bipolar) | ~5.1 ms for faults up to 900 km and 500 Ω resistance |
You can see that the breaker’s design considers many factors, such as submodule capacitance and control modes. These factors affect how quickly and accurately the breaker responds to faults.
A higher breaking capacity means better protection for your equipment and wiring.
Tripping Curves
Tripping curves show you how fast a breaker will trip at different current levels. Each curve type fits a specific application. For example, a B-curve trips quickly at lower overcurrents, which works well for lighting or small appliances. A C-curve trips at higher overcurrents, making it better for motor loads. D-curves handle even larger surges, such as those from transformers.
You can also find detailed specifications for tripping performance:
- Threshold current for bipolar mode: 0.25 (unitless, based on system design)
- Threshold current for monopolar mode: 0.5 (twice the bipolar threshold)
- Time delay in monopolar mode: 5 milliseconds before trip signal
- Fault detection speed in bipolar mode: about 5.1 milliseconds
You should choose the tripping curve that matches your load type. This helps prevent nuisance trips and ensures reliable protection.
Tripping curves and thresholds come from extensive simulations. Engineers test different fault locations and resistance levels to set the best values. This process helps you get a breaker that works well in real-world conditions.
Applications
Residential Use
You often find bipolar circuit breakers in homes. These breakers protect your appliances and wiring from overloads and short circuits. When you use a bipolar breaker, you disconnect both the live and neutral wires at once. This feature keeps your family safe from electric shocks. You also prevent damage to devices like refrigerators, air conditioners, and washing machines.
Many modern homes use bipolar circuit breakers for high-power circuits. You might see them in kitchen ranges, water heaters, or central air systems. These devices need more protection because they draw more current. You can install these breakers in your main electrical panel. They fit on standard DIN rails, so electricians can add or replace them easily.
Tip: Always check the breaker’s rating before you use it for large appliances. The right rating ensures safe operation and long-lasting protection.
Commercial and Industrial Use
You see bipolar circuit breakers in many commercial and industrial settings. These places need strong protection because they use more power and have complex equipment. Factories, office buildings, and data centers rely on these breakers to keep machines and systems safe.
Market research shows that the demand for solid-state circuit breakers, including bipolar types, is growing fast in these sectors. The table below gives you a clear picture of the market:
| Metric/Aspect | Details |
|---|---|
| Market Size (2023) | USD 7,341.07 Million |
| Projected Market Size (2031) | USD 14,861.58 Million |
| CAGR (2024-2031) | 9.26% |
| Application Segments | Power Distribution, Energy Storage, Electric Vehicles, Industrial Equipment, Data Centers |
| End-User Industries | Utilities, Industrial, Residential, Commercial, Transportation |
| Key Drivers | Automation, electrification, renewable energy, EV infrastructure, smart grids |
You find these breakers in power distribution panels, energy storage systems, and renewable energy setups. Many companies use them for electric vehicle charging stations and smart grid projects. Bipolar circuit breakers help prevent downtime and protect expensive equipment.
Note: The growing use of automation and renewable energy increases the need for reliable circuit protection in these environments.
AC and DC Systems
You can use bipolar circuit breakers in both AC and DC systems. In AC systems, they protect circuits by disconnecting both the phase and neutral wires. This is common in homes and offices. In DC systems, such as solar power setups or battery storage, you need to break both positive and negative lines. This prevents dangerous currents and keeps your system safe.
Bipolar circuit breakers work well in renewable energy projects. You see them in solar farms, wind turbines, and battery banks. They also protect circuits in electric vehicles and charging stations. You get flexible protection for many types of electrical systems.
You should always match the breaker type to your system—AC or DC—to ensure the best safety and performance.
Advantages
Safety Benefits
You want to keep your home and workplace safe. A bipolar circuit breaker helps you do that. This device disconnects both the live and neutral wires at the same time. When a fault happens, you get full isolation from the power source. This feature lowers the risk of electric shock. You also protect your appliances from damage. If you touch a wire after the breaker trips, you stay safe because no part of the circuit stays energized.
You also avoid fire hazards. Overloaded wires can get hot and start fires. The breaker senses this and cuts off power before things get dangerous. You can trust this device to act fast and keep your family or coworkers safe.
Tip: Always check that your breaker trips both wires. This gives you the best protection.
Code Compliance
You need to follow electrical codes when you install or upgrade wiring. Many codes require you to use a breaker that disconnects both wires in certain circuits. For example, in some countries, codes say you must use a bipolar circuit breaker for 240V appliances or for circuits that power outdoor equipment.
Using the right breaker helps you pass inspections. It also means your system meets safety rules. If you use the wrong type, you might fail an inspection or face fines. You also risk leaving parts of your system unsafe. Always check your local code before you choose a breaker.
| Requirement | Why It Matters |
|---|---|
| Full disconnection | Stops all current flow for safety |
| Code compliance | Meets legal and insurance standards |
| Inspection ready | Helps you pass safety checks |
When to Use a Bipolar Circuit Breaker
You should use a bipolar circuit breaker when you need to protect both wires in a circuit. This is common for large appliances like ovens, dryers, and water heaters. You also need one for circuits that use 240V or for special equipment outdoors. If your system uses both AC and DC power, this breaker works well in both cases.
You might also need this breaker in solar power systems or battery banks. These setups often require full isolation for safety. If you want to upgrade your home or business to meet modern safety standards, this breaker is a smart choice.
Note: Always ask a licensed electrician if you are not sure which breaker to use.
Troubleshooting
Common Issues
You may face some common problems when using a bipolar circuit breaker. Knowing what these issues are helps you keep your electrical system safe and working well.
1. Nuisance Tripping
Sometimes, your breaker trips even when there is no real fault. This can happen if you use a breaker with the wrong rating or trip curve for your devices. You should check the current rating and make sure it matches your load.
2. Breaker Will Not Reset
If your breaker will not reset, you might have a real fault in your wiring or device. You should unplug all devices and try again. If the breaker still trips, you may need to call an electrician.
3. Overheating
A breaker that feels hot to the touch could signal an overload or loose wiring. You should turn off the power and inspect the connections. Tighten any loose screws and make sure wires fit snugly.
4. Mechanical Failure
Sometimes, the switch on your breaker feels stuck or loose. This could mean the internal parts are worn out. You should replace the breaker if you notice this problem.
5. False Tripping in Noisy Environments
Electrical noise from nearby equipment can sometimes cause false trips. You can solve this by using a breaker designed for high-noise areas, such as a hydraulic-magnetic type.
Tip: Always turn off the main power before you inspect or replace a breaker. Safety comes first.
Here is a quick checklist for troubleshooting:
| Issue | What to Check | What to Do |
|---|---|---|
| Nuisance Tripping | Load rating, trip curve | Match breaker to load |
| Will Not Reset | Devices, wiring, real faults | Unplug, test, call expert |
| Overheating | Wire connections, breaker rating | Tighten, replace if needed |
| Mechanical Failure | Switch movement, age of breaker | Replace breaker |
| False Tripping | Electrical noise, breaker type | Use noise-resistant model |
Myths and Misconceptions
You may hear some myths about bipolar circuit breakers. Knowing what is true helps you make better choices.
- Myth 1: Bipolar breakers are only for large buildings.
You can use bipolar breakers in homes, offices, and factories. They work well in any place that needs to disconnect both wires for safety. - Myth 2: You do not need to match the breaker rating to your device.
You must always match the breaker’s current and voltage rating to your devices. Using the wrong rating can cause nuisance tripping or leave your system unprotected. - Myth 3: All breakers trip both wires.
Single-pole breakers only disconnect one wire. Only bipolar breakers disconnect both the live and neutral wires at the same time. - Myth 4: Breakers never wear out.
Breakers can wear out over time, especially if they trip often. You should check them regularly and replace them if needed.
Note: Understanding what a bipolar circuit breaker does helps you avoid mistakes and keeps your system safe.
If you have questions or doubts, you should always ask a licensed electrician. This ensures you use the right breaker for your needs and follow safety rules.
Selection Tips
Choosing the Right Breaker
You want to choose a bipolar circuit breaker that matches your needs. Start by checking the voltage and current ratings. These numbers tell you what the breaker can handle. If you pick a breaker with the wrong rating, you risk damage or poor protection.
Here is what you should look for:
- Voltage Rating: Make sure the breaker matches your system voltage. For homes, this is often 240V AC.
- Current Rating: Choose a breaker that matches the maximum current your devices will use. For example, if your appliance uses 20 amps, select a breaker rated for at least 20A.
- Breaking Capacity: This shows how much fault current the breaker can safely stop. Pick a breaker with a breaking capacity higher than the possible fault current in your system.
- Trip Curve: Select the right trip curve for your load type. Use a B-curve for lights and small appliances, a C-curve for motors, and a D-curve for heavy equipment.
- Compliance: Look for breakers that meet standards like IEC 60898-1 or IEC 60947-2. These marks show the breaker passed safety tests.
Tip: Always check the label on the breaker. The label gives you important details about ratings and standards.
You can use this table to help compare options:
| Feature | What to Check | Why It Matters |
|---|---|---|
| Voltage Rating | Matches your system | Prevents under/over-voltage |
| Current Rating | Meets or exceeds your load | Avoids nuisance tripping |
| Breaking Capacity | Higher than fault current | Ensures safe interruption |
| Trip Curve | Suits your equipment | Prevents false trips |
| Compliance | Certified standards | Meets safety codes |
Installation Best Practices
You want your bipolar circuit breaker to work safely and last a long time. Good installation helps you get the best results.
Follow these best practices:
- Turn Off Power: Always shut off the main power before you start. This keeps you safe from electric shock.
- Use the Right Tools: Use insulated screwdrivers and pliers. These tools protect you from live wires.
- Check the Panel: Make sure your electrical panel supports two-pole breakers. The panel should have enough space and the correct slots.
- Connect Wires Correctly: Attach the live and neutral wires to the correct terminals. Tighten all screws so the wires do not come loose.
- Mount Securely: Snap the breaker onto the DIN rail or secure it in the panel. The breaker should not move or wiggle.
- Label the Breaker: Write the circuit name on the breaker. This helps you and others know what it controls.
- Test the Breaker: After installation, turn the power back on and test the breaker. Press the test button if your breaker has one.
Note: If you feel unsure about any step, call a licensed electrician. Safety always comes first.
You should also check your breaker every year. Look for signs of wear, loose wires, or overheating. Replace the breaker if you see any problems.
By following these tips, you make sure your bipolar circuit breaker protects your home or business as it should.
You now know what a bipolar circuit breaker is and how it works to protect your electrical system. Choosing the right breaker and installing it correctly keeps you safe from electric shocks and equipment damage. If you have questions or face problems, talk to a licensed electrician. For more details, check guides from trusted manufacturers or local safety codes.
FAQ
What is the main job of a bipolar circuit breaker?
A bipolar circuit breaker disconnects both the live and neutral wires at the same time. You use it to protect your electrical system from overloads and short circuits.
What makes a bipolar circuit breaker different from a single-pole breaker?
You get protection for both wires with a bipolar breaker. A single-pole breaker only disconnects one wire. This means a bipolar breaker gives you better safety.
What types of systems use bipolar circuit breakers?
You find bipolar circuit breakers in homes, offices, factories, and renewable energy systems. They work in both AC and DC setups.
What should you check before choosing a bipolar circuit breaker?
You should check the voltage and current ratings, breaking capacity, and trip curve. Make sure the breaker meets safety standards for your system.
What happens if you use the wrong breaker rating?
If you use the wrong rating, your breaker may trip too often or not trip at all. This can leave your system unprotected or cause nuisance trips.
What does “breaking capacity” mean?
Breaking capacity tells you the highest fault current your breaker can safely stop. You need a breaker with a breaking capacity higher than your system’s possible fault current.
What is a trip curve?
A trip curve shows how fast your breaker will trip at different current levels. You pick the right curve based on your equipment and load type.
What should you do if your bipolar breaker keeps tripping?
First, unplug your devices and reset the breaker. If it trips again, you may have a wiring problem or faulty device. You should call a licensed electrician for help.
The following information may be of interest to you
Single Pole vs Double Pole Circuit Breakers
What Makes Fused Circuit Breakers Safer Than Non-Fused Ones
How to replace the circuit breaker correctly
How to safely remove circuit breakers from distribution boxes
