You usually need a specific circuit breaker size based on your well pump’s horsepower and voltage. For example, a 25 HP well pump at 480 volts often uses a 45-amp breaker. Always check your pump’s nameplate for the right information and follow the manufacturer’s recommendations. Using the wrong breaker can lead to safety issues or damage.
⚠️ Choosing the correct breaker helps you stay safe and meet electrical code requirements.
Key Takeaways
- Always check your well pump’s nameplate and follow the manufacturer’s breaker size recommendations to keep your system safe.
- Use a 2-pole breaker for 240V well pumps to ensure both wires disconnect together and meet safety codes.
- Match your breaker size to your pump’s horsepower, voltage, and the wire gauge to prevent tripping or damage.
- Use thicker wire for longer distances to avoid voltage drop and help your pump run smoothly.
- If you notice flickering lights, frequent trips, or burning smells, call a licensed electrician to inspect your system.
Circuit Breaker Size Guide
Breaker Size Chart
Choosing the right circuit breaker size for your well pump depends on the horsepower and voltage of your system. You can use the following chart as a general guide for 220V/240V well pumps:
| Pump Horsepower | Typical Breaker Size |
|---|---|
| ½ HP | 15-amp |
| ¾ HP | 20-amp |
| 1 HP | 25-amp |
| 1.5–2 HP | 30-amp |
| 3–5 HP | 40–50-amp |
- For 120V pumps:
- ½ HP: 15-amp breaker
- ¾ HP: 20-amp breaker
- 1 to 1.5 HP: 25-amp breaker
- For 240V pumps:
- ½ HP: 15-amp breaker
- ¾ HP: 15- to 20-amp breaker
- 1 to 1.5 HP: 20-amp breaker
💡 Always check your pump’s nameplate and follow the manufacturer’s recommendations. These are general guidelines and may not fit every situation.
You should also match the breaker size to the wire ampacity. For example, 12 AWG copper wire works for up to 20 amps, and 10 AWG copper wire works for up to 30 amps. If your wire run is longer than 100 feet, you may need a thicker wire to prevent voltage drop.
The National Electrical Code allows you to size the breaker up to 250% of the motor’s full-load current. This helps the breaker handle the surge of electricity when the pump starts. For example, a 1.5 HP pump with a full-load current of 9.8 amps can use a 30-amp breaker (9.8 × 2.5 = 24.5, rounded up to 30 amps). However, you must never use a breaker larger than the wire rating.

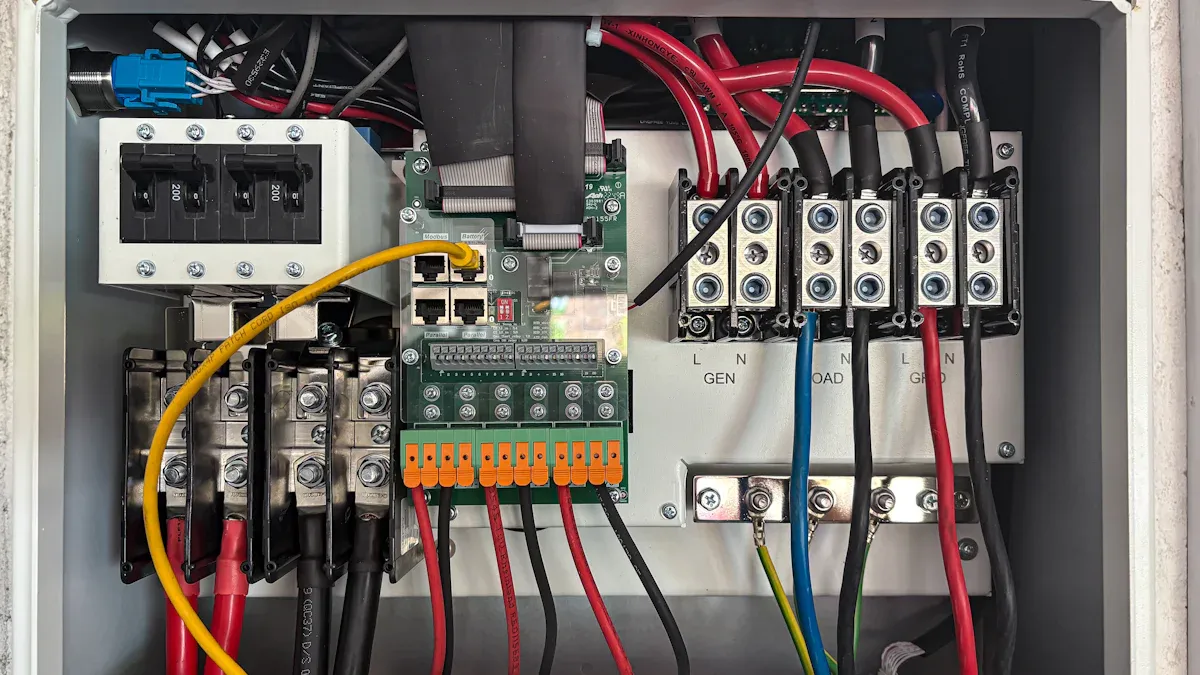

2-Pole Breaker Requirement
Most submersible well pumps run on single-phase 230 volts. You need a 2-pole circuit breaker for these pumps. A 2-pole breaker connects two breakers together, which lets the pump use both wires in a 240V circuit. This setup meets National Electrical Code rules and follows recommendations from trusted sources like the Franklin AIM Manual.
You should never use two single breakers instead of a 2-pole breaker. The 2-pole breaker ensures both wires disconnect at the same time for safety. This is important for protecting your pump and your home.
⚠️ Using the correct circuit breaker size and type keeps your well pump safe and helps you meet code requirements. Always check the manufacturer’s instructions before making any changes.
How to Determine the Right Size
Check Nameplate
You should always start by looking at your well pump’s nameplate. The nameplate shows the voltage and the full load amps (FLA) for your pump. These numbers tell you how much electricity your pump uses when it runs at full power. The FLA helps you pick the right circuit protection and wiring. If you see a dual voltage motor, the nameplate will also show how to wire it for the correct voltage. Pumps work best at the voltage listed on the nameplate, with a small range for safety. If your pump runs outside this range, it can get damaged or work less efficiently.
- The FLA on the nameplate is used to size thermal overload protection.
- Motors are designed to work within about 10% of the nameplate voltage.
- If you measure a different amperage than what the nameplate shows, your pump might be overloaded or underloaded.
📝 Always use the nameplate information as your starting point for any electrical work on your well pump.
Manufacturer Specs
You should check the manufacturer’s manual or website for the recommended circuit breaker size. Manufacturers test their pumps and know what works best for each model. They may list a specific breaker size or give a range. Following these specs helps you avoid problems like nuisance tripping or pump damage. Sometimes, the manufacturer’s recommendation may differ from general guidelines because of special features in the pump.
- Manufacturer specs take into account the pump’s starting surge and running needs.
- Using the recommended breaker size keeps your warranty valid and your pump safe.
Calculate Amps
If you cannot find the nameplate or manufacturer specs, you can estimate the required breaker size using standard formulas. The National Electrical Code (NEC) provides tables to help you. For single-phase motors, you can estimate the full load current (FLC) by multiplying the horsepower by 6. For three-phase motors, multiply the horsepower by 1.5. After finding the FLC, size the breaker between 175% and 250% of that number. Always round up to the next standard breaker size.
| Parameter | Formula / Rule | Notes |
|---|---|---|
| 1-Phase Motor Current | FLC = HP × 6 | Estimate for full load current |
| 3-Phase Motor Current | FLC = HP × 1.5 | Estimate for full load current |
| Breaker Sizing | Breaker size up to 250% of motor FLC | NEC Table 430.52 guideline |
You should always match the breaker size to the wire ampacity and never exceed what the wire can handle.
Key Factors
Horsepower & Voltage
When you choose a breaker for your well pump, you need to know the pump’s horsepower and voltage. Horsepower tells you how much work the pump can do. A higher horsepower pump draws more electricity. Voltage shows how much electrical pressure the pump needs. Most well pumps use either 120 volts or 240 volts. Pumps with higher horsepower or voltage need a larger breaker. If you use a breaker that is too small, it will trip often. If you use one that is too large, it may not protect your pump or wiring.
🛠️ Always match the breaker to your pump’s horsepower and voltage for safe operation.
Wire Gauge
Wire gauge is the thickness of the wire that carries electricity to your pump. The American Wire Gauge (AWG) system uses numbers to show wire size. Smaller numbers mean thicker wires. Thicker wires can carry more electricity without overheating. The National Electrical Code (NEC) gives clear rules for choosing the right wire gauge for each breaker size. For example, a 20-amp breaker needs at least 12 AWG copper wire, and a 15-amp breaker needs at least 14 AWG copper wire. The NEC also explains that you must consider temperature and how many wires are in the conduit. Using the correct wire gauge keeps your system safe and prevents fires.
| Breaker Size | Minimum Copper Wire Gauge (AWG) |
|---|---|
| 15 amps | 14 |
| 20 amps | 12 |
| 30 amps | 10 |
Distance
The distance from your electrical panel to your well pump affects the wire size you need. Longer distances cause voltage drop, which means your pump may not get enough power. To fix this, you should use thicker wire for longer runs. The NEC recommends keeping voltage drop under 3% for branch circuits. For example, you can use 12 AWG wire for up to 150 feet, but you should use 10 AWG wire for 150 to 300 feet. If your run is even longer, you may need 8 AWG or thicker. Hot weather can also lower how much electricity a wire can carry, so you may need to go up a size in those cases.
💡 Tip: Always check the distance and use a larger wire if your pump is far from the panel. This helps your pump run smoothly and last longer.
Code & Safety
NEC Rules
You must follow the National Electrical Code (NEC) when working with well pump circuits. The NEC sets the standard for safe electrical installations in the United States. The Texas Department of Licensing and Regulation (TDLR) Compliance Guide states that Texas uses the NEC 2023 Edition for all electrical work, including well pump circuits. You should always check the NEC and local codes before starting any project.
- Install a dedicated circuit for your well pump to prevent overload.
- Use the correct wire size for your pump and breaker.
- Regularly inspect and maintain your circuit breaker and wiring.
- Follow both NEC rules and manufacturer recommendations.
⚡ Always consult a licensed electrician if you have questions about code requirements or circuit breaker size.
When to Call an Electrician
Some situations require a professional electrician. You should call an expert if you see any of these signs:
- Flickering lights or frequent breaker trips.
- Burning smells near your electrical panel.
- Outdated or overloaded electrical panels.
- Faulty wiring or signs of damage.
- Uncertainty about how to size or install a breaker.
Electricians know how to handle complex cases, such as sizing breakers for large motors or dealing with harsh environments. They can make sure your system meets all safety codes and works as it should.
🛑 Never guess when it comes to electrical safety. If you feel unsure, call a licensed electrician.
Risks of Wrong Size
Using the wrong circuit breaker size can cause serious problems. If the breaker is too small, it may trip often and stop your pump from working. If the breaker is too large, it may not protect your pump or wiring from overheating. Both situations can lead to fire hazards or damage to your equipment.
| Risk | What Can Happen |
|---|---|
| Overheating | Wires or pump may catch fire |
| Nuisance Tripping | Pump stops working often |
| Fire Hazard | Increased risk of house fire |
| Equipment Damage | Pump or wiring gets ruined |
🚨 Always use the correct breaker size to keep your home and family safe.
You can choose the right breaker for your well pump by following a few key steps.
- Check that your equipment matches the nameplate and project drawings.
- Make sure the breaker size and type fit your pump’s needs.
- Confirm that all wiring and grounding look safe and secure.
- Review any digital settings if your breaker uses them.
- Double-check that all parts work together as planned.
Always follow safety codes and ask a licensed electrician if you feel unsure.
FAQ
What happens if you use a breaker that is too big for your well pump?
If you use a breaker that is too big, it may not trip when there is a problem. Your pump or wires can overheat. This can cause damage or even start a fire. Always match the breaker size to your pump.
What type of breaker do most well pumps need?
Most well pumps need a 2-pole breaker. This type connects both wires in a 240V circuit. It disconnects both wires at once for safety. You should never use two single breakers for a 240V pump.
What wire size should you use for a 1 HP well pump?
You should use at least 12 AWG copper wire for a 1 HP well pump if the distance is under 100 feet. For longer runs, use 10 AWG or thicker wire. Thicker wire helps prevent voltage drop.
What signs show your breaker or wiring may have a problem?
You may notice flickering lights, frequent breaker trips, or a burning smell. Sometimes, your pump may stop working. These signs mean you should check your system or call an electrician.
What should you check before replacing a well pump breaker?
Always turn off the main power first. Check the pump’s nameplate for voltage and amps. Make sure the new breaker matches the pump’s needs. Inspect the wiring for damage before installing the new breaker.
