When you compare an automatic transfer switch and static transfer switch, you notice significant differences. The automatic transfer switch and static transfer switch vary in their speed, operation, and typical applications. An automatic transfer switch relies on mechanical components to shift power sources, which can take anywhere from a few milliseconds to several seconds. In contrast, a static transfer switch uses electronic components, allowing it to switch power almost instantly. You’ll often find an automatic transfer switch in hospitals and industrial settings, while a static transfer switch is commonly used in data centers and financial institutions, where even a brief power interruption can cause major issues.
| Switch Type | How It Works | Transfer Speed | Common Use Cases |
|---|---|---|---|
| Automatic Transfer Switch | Mechanical | Milliseconds–seconds | Hospitals, industry |
| Static Transfer Switch | Solid-state | Milliseconds | Data centers, finance |
Choosing between an automatic transfer switch and static transfer switch is crucial. Some equipment requires immediate power restoration, while other systems can tolerate a short delay.
Key Takeaways
- Automatic transfer switches have moving parts and switch power slowly. This makes a short wait that is okay for less sensitive machines.
- Static transfer switches use electronic parts to switch power very fast. They help protect sensitive devices from losing power.
- Static transfer switches are more dependable and break less often. They do not have moving parts. Automatic switches need regular check-ups.
- Automatic transfer switches cost less money and are easy to set up. They work well for simple backup needs. Static switches cost more but give faster and steadier power for important places.
- Picking the right switch depends on how sensitive your equipment is. It also depends on your budget and power needs. Always choose the switch that fits your needs best.
Overview
Automatic Transfer Switch

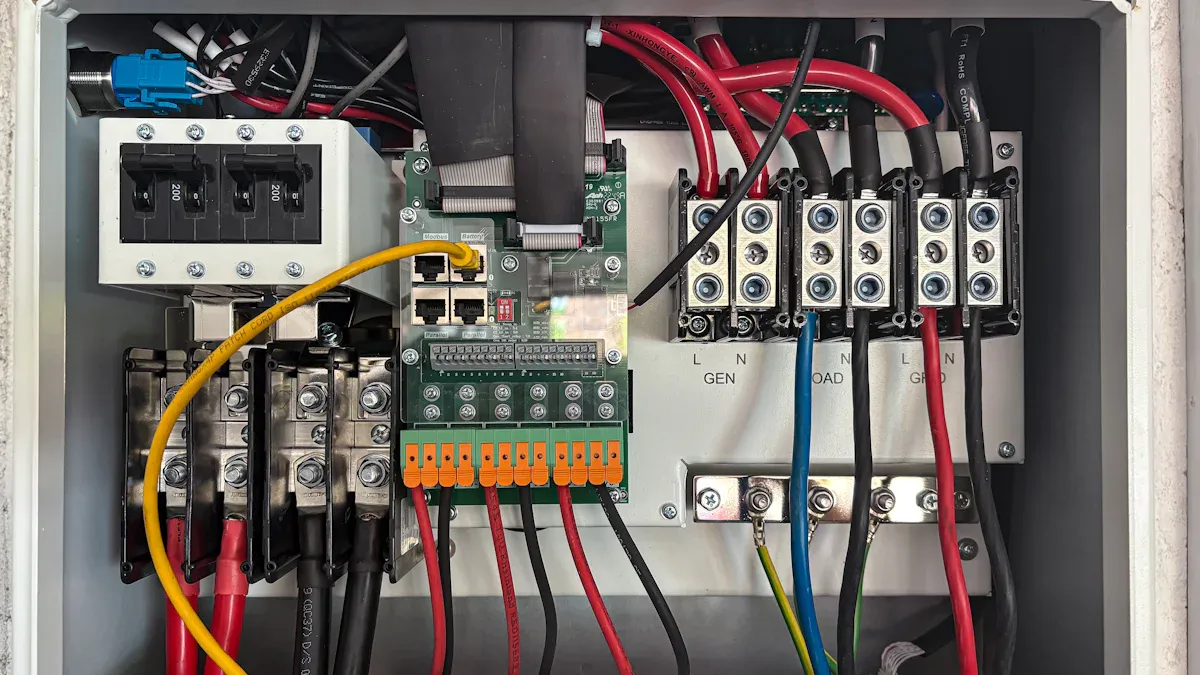

An automatic transfer switch helps move power from the main source to backup when needed. It uses mechanical parts like contactors, relays, and circuit breakers. The switch checks the main power’s voltage and frequency. If there is a problem, it tells the backup generator to turn on. When the generator is ready, the switch moves the power load to it. There is a short power break, usually up to 100 milliseconds or more. This small delay is okay for hospitals, factories, and big buildings.
Note: Both switches protect your equipment, but they do it differently.
Here’s how an automatic transfer switch works:
- The switch looks for problems in the main power.
- If it finds one, it starts the backup generator.
- When the generator is steady, it moves the load.
- The switch keeps checking the main power.
- When the main power is back, it moves the load again.
Static Transfer Switch
A static transfer switch uses electronic parts, not mechanical ones. It has semiconductor devices like Silicon Controlled Rectifiers (SCRs) and smart controllers. This design lets it move loads between two power sources almost right away, often in less than 4 to 8 milliseconds. You do not notice any power loss. The switch always checks both power sources and picks the best one for your equipment. Static transfer switches are used in data centers or places where even a tiny power loss is a big problem. No moving parts means it is more reliable and lasts longer.
| Feature | Automatic Transfer Switch | Static Transfer Switch |
|---|---|---|
| Switching Mechanism | Mechanical | Electronic |
| Transfer Speed | Up to 100 ms or more | Less than 8 ms |
| Typical Use | Hospitals, industry | Data centers, finance |
How They Work
Mechanical Operation
An automatic transfer switch uses a mechanical way to move power from one source to another. Here is how it works step by step: The switch always checks the main power. It looks at things like voltage and frequency. If the main power stops or gets weak, the switch starts to work. It tells the backup generator to turn on and get ready. When the backup is ready, the switch moves your load to the backup. It uses strong parts to do this safely. The switch works fast, often in less than 100 milliseconds. Your equipment is not off for long. Inside, protection circuits keep your devices safe during the switch. There are different types of automatic transfer switches. Open transition switches break the old connection before making a new one. Closed transition switches make the new connection first, so you do not lose power. Delayed transition switches wait a bit before connecting to backup.
You can count on a mechanical automatic transfer switch to give steady power for most buildings and equipment. The design keeps your systems working with only a short pause.
Solid-State Operation
A static transfer switch uses electronic parts instead of moving ones. This solid-state design gives you some big benefits: The switch is very fast, often less than 8 milliseconds. Sensitive equipment does not notice any power loss. No moving parts means nothing wears out or bounces. The switch lasts longer and needs less fixing. Solid-state switches turn on and off at the right time. This helps stop electrical noise and sparks. You can use a static transfer switch for loads that cannot handle even a tiny power break, like servers or medical tools. The switch is very reliable and does not fail often. This makes it great for important systems. Static transfer switches can cost more and be more complex. High current models need special cooling and can be pricey. Some static transfer switches let you fix parts without turning off your equipment.
If you need the fastest and most steady power transfer, a static transfer switch is best, especially for sensitive or very important loads.
Automatic Transfer Switch and Static Transfer Switch Comparison
Transfer Speed
There is a big difference in transfer speed. The automatic transfer switch uses moving parts. It takes longer to move power. It usually takes 1.5 to 5 seconds to switch. This happens because the switch waits for the backup generator. The generator must start and get steady first. Sometimes, the power break can last a few seconds. This can make sensitive equipment turn off or restart.
A static transfer switch is much faster. It uses solid-state electronics like SCRs or thyristors. The switch time is about 4 to 8 milliseconds. This is almost instant. Your equipment will not notice the switch. Fast switching is important for data centers and hospitals. Even a short power loss can cause problems.
| Feature | Automatic Transfer Switch (ATS) | Static Transfer Switch (STS) |
|---|---|---|
| Transfer Time | 1.5 to 5 seconds (mechanical) | 4 to 8 milliseconds (solid-state) |
| Core Technology | Relays, contactors | SCRs, thyristors |
| Typical Use | Backup for homes, businesses | Data centers, hospitals, telecom |
Tip: To protect computers or servers, use a static transfer switch. It reacts very fast.
Reliability
Reliability is important for your power system. The automatic transfer switch and static transfer switch are different here. The automatic transfer switch has moving parts. These parts can wear out or break over time. You need to check and fix them often. This is true in places like hospitals or data centers. Experts say automatic transfer switches fail more than other power parts.
A static transfer switch has no moving parts. It uses solid-state electronics that last longer. This makes it more reliable for important loads. You will have fewer failures and less downtime. Static transfer switches work well in tough places. They handle high heat and voltage changes. They keep working when mechanical switches might stop.
- Automatic transfer switch: Needs regular checks, can fail more, needs more repairs.
- Static transfer switch: Needs little care, very reliable, best for important loads.
Note: For the best reliability, pick a static transfer switch for your important equipment.
Cost and Complexity
Cost and complexity help you choose the right switch. An automatic transfer switch costs less to buy and set up. The price is about $400 to $2,000. Installation costs are $600 to $2,500. The design is simple. Most electricians can put it in and fix it. This makes it good for homes or small businesses.
A static transfer switch costs more money. The technology is advanced. You need skilled workers to install and fix it. The system can be complex in big data centers or hospitals. You may need to connect it with UPS systems. You might manage many power sources and balance loads. This setup gives more protection but costs more and needs more planning.
- Automatic transfer switch: Cheaper, simple, easy to install and fix.
- Static transfer switch: Costs more, advanced, more complex, better for big or important places.
| Aspect | Automatic Transfer Switch | Static Transfer Switch |
|---|---|---|
| Upfront Cost | Lower | Higher |
| Installation | Simple | Complex |
| Maintenance | Frequent | Minimal |
| System Complexity | Low | High |
| Best For | Basic backup needs | Critical, complex loads |
Remember: Both switches have their uses. Pick one based on your budget, how important your equipment is, and how much complexity you want.
Choosing the Right Switch
Application Scenarios
You need to pick the right switch for your space. Different places need different power setups. Here are some examples:
- Hospitals and Healthcare: You have to use a closed transition automatic transfer switch. This type keeps medical machines running with no power loss. It gives smooth power changes.
- Data Centers: You may need both automatic transfer switch and static transfer switch. Static transfer switches are best for servers and sensitive gear. They switch power in just milliseconds. Soft loading ATS helps handle changing power needs.
- Commercial Buildings: Open transition ATS is used a lot. It allows a short power break, which most office tools can handle. Manual switches are okay for less important loads.
- Highly Critical Environments: Bypass isolation ATS is the best pick. It lets you do repairs without turning off the power. Telecom and emergency centers use this type.
| Environment | Recommended Switch Type(s) | Reason |
|---|---|---|
| Hospitals / Healthcare | Closed Transition ATS | No power interruption |
| Data Centers | ATS, STS, Soft Loading ATS | Instant transfer, flexible load |
| Commercial Buildings | Open Transition ATS, Manual | Brief outage acceptable |
| Highly Critical Environments | Bypass Isolation ATS | Maintenance without downtime |
Tip: Always check what your equipment needs before you pick a switch.
Key Considerations
Think about a few things before you choose a switch:
- Transfer Speed: If your gear cannot lose power, pick a static transfer switch. For less sensitive stuff, an automatic transfer switch is fine.
- Reliability: Static transfer switches have no moving parts. They last longer and need less fixing. ATS units need regular checks because parts can wear out.
- Cost and Complexity: ATS units cost less and are easier to set up. STS units cost more but switch faster and are more reliable.
- Sizing and Compatibility: Make sure the switch fits your system’s voltage, amperage, and number of circuits. Check that it works with your backup generator.
- Safety Features: Look for circuit breakers, overload protection, and surge guards. Pick the right box for your area.
- Industry Standards: Follow NEC rules for your building. Emergency systems need listed switches and the right safety locks.
Common mistakes are picking the wrong size, skipping safety features, or not matching the switch to your power setup. Always check your needs and ask an expert if you are not sure.
You have learned the big differences between automatic transfer switch and static transfer switch. The table below shows how they are not the same:
| Feature | Automatic Transfer Switch | Static Transfer Switch |
|---|---|---|
| Technology | Electromechanical | Solid-state electronics |
| Transfer Time | 10–30 ms | 1–4 ms |
| Reliability | Medium | High |
| Cost | Lower | Higher |
Use a static transfer switch for important places like data centers. Use an automatic transfer switch for things that are not as sensitive. Always check your power needs, safety rules, and equipment before you choose.
Choosing ONESTOP Switch: With over 20 years of manufacturing experience, international certification assurance, and excellent quality, we help you comprehensively improve circuit safety protection.
FAQ
What is the main job of an automatic transfer switch?
You use an automatic transfer switch to move power from your main source to a backup when the main power fails. This switch keeps your equipment running with only a short pause.
What makes a static transfer switch different from a regular transfer switch?
A static transfer switch uses electronic parts, not moving ones. You get much faster switching, often in just a few milliseconds. This helps protect sensitive devices from power loss.
What should you check before picking a transfer switch?
You should check your equipment’s sensitivity, your budget, and your power needs. Make sure the switch matches your voltage and current. Always follow safety rules.
What happens if you use the wrong type of transfer switch?
If you use the wrong switch, your equipment might shut down or get damaged during a power change. Sensitive devices need fast switching. Less sensitive loads can use slower, mechanical switches.
