Choosing the right DC circuit breaker keeps your solar power system safe from too much electricity and short circuits. Certified breakers are tested to rules like CE and UL. They quickly turn off circuits that have problems. This fast action protects your equipment from harm and keeps your system working well. You can trust brands like ONESTOP. They give you strong and safe solutions with smart safety features like arc fault detection and reverse-flow protection. These features help you follow tough safety rules and keep your solar system working well.
Key Takeaways
- Use certified DC circuit breakers to keep your solar system safe from electrical problems, fires, and shocks. – Pick the right breaker type and size for your system’s voltage, current, and safety rules. – Install breakers the right way with good wiring, grounding, and help from a professional to make sure everything is safe and works well. – Check and take care of your breakers often to find problems early and keep your solar system working well. – Trusted brands like ONESTOP have reliable, certified breakers with smart safety features and choices you can change.
Why DC Circuit Breakers Matter
Protection in Solar Systems
Solar power systems need strong protection. A DC circuit breaker helps keep your equipment safe from many dangers. Solar panels and batteries use direct current. This can make strong and steady electrical arcs. These arcs are harder to stop than in AC systems. DC circuit breakers have special designs. They break these arcs and stop electricity when there is a problem.
Here is a table that shows the main hazards in solar systems and what can happen if you do not control them:
| Hazard Type | Description | Potential Consequence |
|---|---|---|
| DC Arc Fault | Sustained electrical arc due to fault/bad connection | Intense heat, melting, fire in panels/boxes/wiring |
| Overcurrent | Current exceeds safe operating levels (short circuit) | Wiring overheat, panel damage, inverter failure |
| Reverse Current | Current flows backward into a faulty/shaded string | Panel overheating, cell damage, reduced output |
| Ground Fault | Unintended connection between DC circuit & ground | Shock hazard, system malfunction, potential fire |
| Shock Hazard | Contact with energized DC components | Severe injury or fatality during maintenance/faults |
A DC circuit breaker protects your system in many ways. It stops too much current and short circuits before they cause harm. It disconnects broken parts, which lowers the chance of fire or electrical failure. It keeps workers safe by cutting off dangerous circuits. It helps your solar system work well and last longer.
Tip: Always use certified DC circuit breakers. This helps your solar system meet safety rules and work safely.
Risks of Incorrect Breakers
If you use the wrong breaker or do not install one, you put your system and yourself in danger. Solar panels often use high voltages, sometimes from 120V to 500V. Without the right protection, these voltages can be very dangerous.
- You could get shocked during repairs or if something goes wrong.
- Your equipment, like pumps and inverters, could break from power surges.
- Fires can start if wires get too hot or arcs are not stopped.
- Your system might not follow safety rules, which can cause legal or insurance trouble.
The National Electrical Code (NEC) says you must use the right certified overcurrent protection devices in solar systems. If you use the wrong or uncertified breakers, you may not protect your wires and equipment from harm. Always follow the manufacturer’s instructions and use the correct DC circuit breaker for your system.
DC Circuit Breaker Basics
How They Work
A DC circuit breaker protects your solar power system by stopping dangerous currents. You can find two main protection methods inside these breakers:
- Thermal protection uses a bimetallic strip. When too much current flows, the strip heats up and bends. This bending action opens the circuit and stops the flow of electricity.
- Magnetic protection reacts to very high fault currents. A strong magnetic field forms quickly and trips the breaker right away. This fast action helps prevent damage.
- DC current creates a steady arc when the breaker opens. This arc is harder to stop than in AC systems. DC circuit breakers use special arc extinguishing parts, like magnets and arc chutes, to break the arc safely.
- These features work together to keep your solar panels, batteries, and wiring safe from overloads and short circuits.
Note: Solar PV circuits often connect in series. You need strong and reliable protection to handle the higher voltages and currents.
DC vs. AC Breakers
You might wonder if you can use an AC breaker in a solar system. The answer is no. AC and DC breakers work differently because the currents behave in unique ways.
- AC breakers interrupt current that changes direction many times each second. The current crosses zero volts often, which helps put out the arc naturally.
- DC breakers must stop current that flows in only one direction. The arc does not go out on its own. DC breakers need wider contact gaps and special arc extinguishing tools.
- DC breakers often have polarity, so you must connect them the right way. AC breakers do not have this feature.
- DC breakers cost more and have higher arc ratings because they handle tougher conditions.
- Using an AC breaker in a DC solar setup can cause the breaker to fail. This failure can lead to equipment damage and safety risks.
A DC circuit breaker is essential for solar power systems. It gives you the right protection and keeps your system safe.
Types of DC Circuit Breakers
When you build a solar power system, you must pick the right DC circuit breaker for each part. Each type has special features that help keep your equipment safe.
Miniature DC Breakers
Miniature DC breakers are good for small and medium solar systems. You use them to protect solar panels, charge controllers, and battery circuits from too much current or short circuits. These breakers are small, so they fit in tight spaces like combiner boxes or small panels.
You can get miniature DC breakers with different voltage and current ratings. Some work up to 1200V DC and handle 10A to 63A. They come in single-pole or multi-pole types, so you can match them to your system. You install them on DIN rails, which makes setup easy.
Miniature DC breakers use thermal-magnetic trip parts. This means they react fast to slow overloads and sudden faults. You can reset them after they trip, which saves time and money. These breakers meet strict standards like IEC 60947-2, so you know they protect well.
Tip: Always choose a breaker with a voltage and current rating higher than your system’s top values. This helps stop unwanted trips and keeps your solar system safe.
Molded Case DC Breakers
Molded case DC breakers give strong protection for bigger solar systems. You use them where high currents flow, like main panels or large battery banks. These breakers can handle much higher currents, sometimes up to 2000A, and higher voltages than miniature breakers.
Here is a table that compares molded case and miniature DC breakers:
| Aspect | Molded Case DC Breakers (MCCBs) | Miniature DC Breakers (MCBs) |
|---|---|---|
| Current Capacity | Up to 2000A or more | Up to 125A |
| Protection Devices | Adjustable, separate for overcurrent/short | Combined, not adjustable |
| Arc Extinguishing | Strong, large inter-phase distance | Weaker |
| Installation | Screw mount, stable contact | DIN rail, quick install |
| Application Scope | Industrial, commercial, thick wiring | Residential, small commercial |
| Size and Structure | Larger, plastic shell | Smaller, compact |
You get more control with molded case breakers. You can adjust their settings to fit your system. They have strong arc extinguishing parts, which makes them safer for high-power solar setups. You usually install them with screws for a solid connection.
Note: Molded case DC breakers are best for big solar projects, like commercial buildings or solar farms. They protect your system from overloads, short circuits, and some ground faults.
Hybrid and GFCI Breakers
Hybrid and GFCI breakers add extra safety to your solar system. Hybrid breakers combine different protection features, like overcurrent, ground fault, and arc fault detection, in one device. This makes your setup simpler and safer.
GFCI breakers watch for current leaks to the ground. If they sense a problem, they shut off power right away. This helps stop electric shocks and fires, which is important for anyone working near your solar equipment.
Here are some key benefits of hybrid and GFCI breakers:
- They handle high-voltage DC safely, using special arc suppression parts.
- Their small size fits well in solar systems with little space.
- They improve safety by quickly disconnecting bad circuits.
- Smart versions can watch your system and help with maintenance.
Safety Alert: Using GFCI and hybrid breakers helps protect your equipment and the people who work on your solar system.
ONESTOP’s Product Range and Customization
ONESTOP offers many DC circuit breakers for solar power systems. You can pick from miniature, molded case, and hybrid breakers. All are certified to international standards like CE, UL, TUV, and IEC. These certifications show the products meet strict safety and quality rules.
| Certification / Standard | Description / Relevance |
|---|---|
| UL, UL1077, UL1741 | US safety and system standards for solar PV |
| IEC60947, IEC60898-1 | International standards for circuit breakers |
| CE, TUV, CB, SAA | European, German, global, and Australian safety marks |
| RoHS, ISO | Environmental and quality standards |
You can also ask ONESTOP for custom solutions. If you have a special solar project, ONESTOP can change the breaker’s current, voltage, trip curve, and other features to fit your needs. Their team helps you pick the right breaker for your system size and environment. This support keeps your solar setup safe, efficient, and up to code.
ONESTOP’s wide product range and custom options make it easy for you to find the right DC circuit breaker for any solar project, big or small.
Choosing a DC Circuit Breaker
Picking the right DC circuit breaker is very important. It helps your solar power system stay safe and work well. You need to make sure the breaker’s ratings and features fit your system. This stops big problems and keeps your solar setup working.
Voltage and Current Ratings
Always check the voltage and current ratings before you pick a breaker. The National Electrical Code (NEC) says your breaker must be rated at least 125% of your inverter’s output current. For example, if your inverter gives 14.5A at 240V, you need a breaker rated for at least 18.125A. Since there is no 18A breaker, you use a 20A breaker. This helps your system follow safety rules and work safely.
When you size a breaker for solar panels, do these steps:
- Find the short circuit current (Isc) of your panels.
- Multiply by 1.25 for the panels and again by 1.25 for the breaker. This gives a total of 1.56.
- Think about how your panels are connected:
- In series: Voltages add, current stays the same.
- In parallel: Currents add, voltage stays the same.
- In series-parallel: Both voltage and current go up.
- Use the right breaker size for each part, like between the charge controller and battery, or battery and inverter.
Tip: Always round up to the next standard breaker size for safety.
Interrupt Capacity
Interrupt capacity means how much fault current a breaker can stop. You need to know your system’s voltage and wiring. Figure out the highest short-circuit current your system could make. Pick a breaker with a breaking capacity (Icu or Ics) that is at least this high.
Some special breakers, like hybrid DC circuit breakers, can stop very high fault currents. Some can handle up to 15,000A at 1500V DC. These breakers use special parts to stop faults fast and lower damage. This is very important in big or high-voltage solar systems.
Note: If your breaker’s interrupt capacity is too low, it can fail and cost a lot to fix.
Environmental Factors
Solar power systems can be in tough places. High heat, humidity, and shaking can change how well your breaker works. Thermal DC circuit breakers are made to handle these things. They use strong, simple parts that last longer.
Big temperature changes can make parts grow and shrink. This can make your breaker wear out faster. Humidity, especially near the ocean, can cause rust. Look for breakers with waterproof or moisture-resistant ratings (like IP ratings) if your system is outside or in a wet place. If your system shakes a lot, get a breaker that can handle vibration.
Doing regular checks and picking the right box helps your breaker last longer and stay safe.
Standards and Compliance
You must use breakers that meet important safety standards. This keeps your system safe and legal. Here is a table with some key standards for DC circuit breakers in solar systems:
| Component | Relevant Standard(s) | Key Focus Areas |
|---|---|---|
| DC Circuit Breakers | UL 1066, UL 489 | Overcurrent protection, fault current testing |
| DC Connectors | UL 4128 | Safety and reliability for high voltage DC |
| DC Isolator Switches | UL 508i | Safe isolation of DC circuits |
| DC Surge Protection Devices | UL 1449 | Surge protection and endurance in DC systems |
| High Voltage DC Contactors | UL 60947-4-1 | Durability, dielectric strength, arc handling |
You should also check for rules like the National Electrical Code (NEC), IEC 61439, and local codes. These rules help your system stay safe, work well, and be covered by insurance.
ONESTOP can help you with all these steps. Their team gives advice for picking the right breaker. You can get help with custom settings, wiring diagrams, and even training. ONESTOP also gives you guides and remote help, so you always have support for setup and care. This help makes sure your system meets all safety and performance rules.
Picking the right DC circuit breaker and following these tips keeps your solar power system safe and working for many years.
Installation and Safety
Professional Installation
You should always use the right steps when putting in circuit breakers for your solar power system. Getting help from a professional keeps your system safe and working well. Here are some important things you should do:
- Circuit breakers protect your system from too much current and short circuits.
- Pick a breaker that matches your system’s current needs.
- Use the right wire size by thinking about voltage, current, and how far the wire goes. This helps stop voltage loss and keeps things safe.
- Choose wires made for outside and solar use. Copper wires that can handle sun and weather are best.
- Ground and bond your system the right way. This lowers shock danger and gives a safe path for fault current.
- Leave enough space around your equipment. This makes it easy to reach and safe to use.
- Put clear labels on all breakers and panels. Show voltage, warnings, and what to do in an emergency.
- Add a disconnect switch so you can turn off your solar system fast if needed.
- Always follow local electrical rules, the maker’s instructions, and laws. 10. Check and take care of your system often. This helps you find loose wires or worn parts early.
Tip: It is smart to hire a trained electrician. This helps you avoid mistakes and makes sure your system is safe.

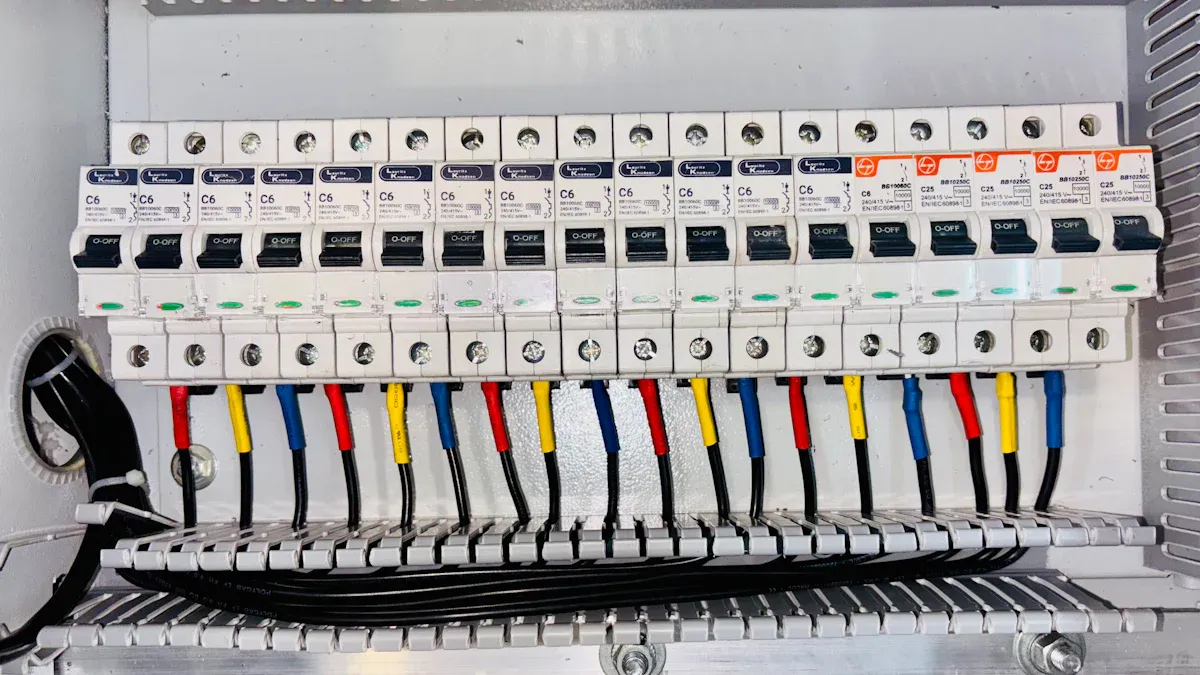

Placement and Wiring
Where you put your breakers and how you wire them matters for safety and how well your system works. Good placement and wiring help stop problems and keep your system running right.
- Put breakers and disconnect switches where you can get to them easily. This lets you turn off your system fast in an emergency or for repairs.
- Use the right wire size and connectors. MC4 connectors are good for safe DC wiring.
- Ground your system well to stop shocks and electrical problems.
- Follow the National Electrical Code (NEC) and use materials made for outside use.
- Install DC isolator switches so you can safely turn off solar panels when needed.
Note: Bad wiring or putting things in the wrong place can cause wires to get too hot, voltage loss, or even fires.
Maintenance Tips
Checking your solar system often keeps it safe and working well. You should look at your breakers and panels regularly.
- Look at breakers for damage, wear, loose wires, or rust.
- Keep breaker panels clean and free from dust or dirt.
- Test the breaker with the test button to make sure it turns off right.
- If a breaker trips, check the contacts for burns or marks and fix them if needed.
- Never change the protection settings made by the maker.
- Make sure all load wires go through the breaker to stop wrong readings.
Doing regular checks and fixing things fast helps stop bigger problems and makes your solar system last longer.
Efficient Operation
Monitoring
You need to keep an eye on your DC circuit breakers to make sure your solar power system works well. Regular checks help you spot problems before they get worse. When you monitor your breakers, you protect your system and make it last longer.
- DC Molded Case Circuit Breakers (MCCBs) guard your solar panels and batteries from overloads and short circuits. This keeps your system safe and helps it run for many years.
- Regular inspections, cleaning, and testing let you find small issues early. You can fix them before they cause bigger failures or stop your system from working.
- Monitoring gives you real-time updates. You can see faults as soon as they happen and even control your system from far away.
- These steps make your solar setup more reliable. Your equipment lasts longer, and you follow safety rules.
- When you keep up with these tasks, you lower downtime and protect important parts of your solar system.
Tip: Set a schedule to check your breakers every few months. Write down what you find so you can track changes over time.
Upgrades
Sometimes, you need to upgrade or replace your DC circuit breakers. Watch for these signs that show your breaker may need attention:
- The breaker trips often. This means it might not handle the power your system needs or it could be faulty.
- You see burn marks, melted spots, or smell something burning. These signs show damage and mean you should replace the breaker.
- The breaker is over 20 years old. Old breakers can wear out and become less safe.
- The breaker will not stay reset and trips right away. This points to problems inside the breaker or in your wiring.
- The breaker or panel feels hot. Overheating can lead to failure or even fire.
- Your solar system has grown, and the breaker cannot handle the new load. You need a bigger or better breaker.
Note: Upgrading to a new, certified breaker from a trusted brand like ONESTOP helps your solar system stay safe and efficient. Always choose a breaker that matches your system’s needs.
Picking the right DC circuit breaker helps your solar power system stay safe and work well. Certified breakers give you many good things over time:
- They stop faults very fast and help save power.
- They make your system safer by lowering arc energy.
- They work well even when the weather is tough.
- They last longer and need less fixing.
Experts say ONESTOP’s breakers are very reliable and follow the rules.
| Feature | Value/Standard |
|---|---|
| Mechanical Endurance | 10,000 operations |
| Compliance Standards | IEEE/ANSI, IEC |
| Quality Certifications | ISO-9001, ISO-14001 |
You should always ask experts to help you pick and install breakers. This keeps your solar system safe, working well, and following the rules.
FAQ
What makes a DC circuit breaker different from an AC breaker?
A DC circuit breaker stops direct current, which flows in one direction. It uses special parts to break strong arcs. An AC breaker works with alternating current, which changes direction. You should always use a DC breaker for solar power systems.
How do I know which size DC breaker to choose?
You need to check your system’s voltage and current. Pick a breaker rated at least 125% of your system’s maximum current. Always round up to the next standard size. If you need help, ask an expert or use ONESTOP’s technical support.
Can I install a DC circuit breaker myself?
You should let a trained electrician install your DC circuit breaker. This keeps you safe and makes sure your system works well. A professional knows the rules and can spot problems before they cause harm.
How often should I check my DC circuit breakers?
Check your breakers every few months. Look for damage, dirt, or loose wires. Test the breaker to make sure it works. Write down what you find. Regular checks help your solar system last longer and stay safe.
Why should I choose a certified brand like ONESTOP?
Certified brands like ONESTOP test their products to meet strict safety rules. You get reliable, high-quality breakers that protect your solar system. ONESTOP also offers support and custom solutions for your needs.
