Complete Guide to Selecting DC Overcurrent Protection Devices

When you pick a DC fuse or a circuit breaker, you must choose what fits your system. DC overcurrent protection is harder than AC protection. DC circuits do not have a zero point for current. This means arcs last longer and are tough to stop. If a breaker fails in a DC system, it can cause dangerous arc flashes. It can break equipment and put people in danger. If you choose the wrong device, you may have long downtime and big safety problems. Use this guide to learn why DC protection is special and how to pick the best choice for your needs.

Key Takeaways

• DC overcurrent protection keeps people and equipment safe. Pick devices made for DC to stop dangerous arcs and damage.
• DC arcs last longer than AC arcs. So, you need devices made for DC circuits.
• Fuses work fast and do not cost much. They protect sensitive equipment but need replacing after they blow.
• Circuit breakers can be used again after tripping. They are good for systems that need little downtime and easy fixes.
• Always check the voltage and current ratings of your devices. Make sure they meet or are higher than your system’s needs.
• You can use both fuses and circuit breakers together. This gives you quick fault clearing and easy resets.
• Check your protection devices often. Look for any damage or wear to keep your system safe.
• Teach your team about safety steps. Make sure everyone knows why the right devices and safety rules matter.

DC Overcurrent Protection Basics

DC Arc Hazards

Arc Persistence

Working with DC circuits is different from AC circuits. DC current only goes one way and never drops to zero. This makes arcs last longer than in AC systems. In AC, the current hits zero many times each second. This helps stop arcs fast. DC arcs stay hot and burn for a long time. They can break equipment and make fixing things harder.

Safety Risks

DC arcs are very dangerous. You need to protect yourself and your system from electrical shock, burns, and arc flash. These dangers can cause fires, burns, or even explosions. More people use DC now, like in solar power and electric vehicles. So, it is important to know about these risks. Safety rules for DC are not as strong as for AC. You must use good safety steps and the right DC overcurrent protection to keep safe.

Tip: Always use devices rated for DC to lower the chance of arc flash and electrical shock.

• Main dangers from DC arcs:
  • Electrical shock
  • Burns from heat
  • Arc flash

AC vs DC Protection

AC and DC protection devices work in different ways. AC devices use the zero points in current to help stop arcs. DC devices do not have this help. They need special parts to break arcs that last longer.

• AC systems have voltage and current that cross zero 120 times each second. This lets arcs stop by themselves.
• DC systems keep the same voltage, so arcs last longer and burn hotter. This can cause more damage.

Why Proper DC Protection Matters

You need the right DC overcurrent protection to stop big problems. Without it, your system can get damaged, catch fire, or stop working. Real events show that too much current can hurt wires, appliances, and other parts. Too much current in charging stations or PV arrays can make things overheat, melt, or catch fire. Power converters can break if they get too much current.

You must pick the right wire size and use protection devices. This keeps your system safe from too much current and short circuits. It also protects your money and keeps your system working well.

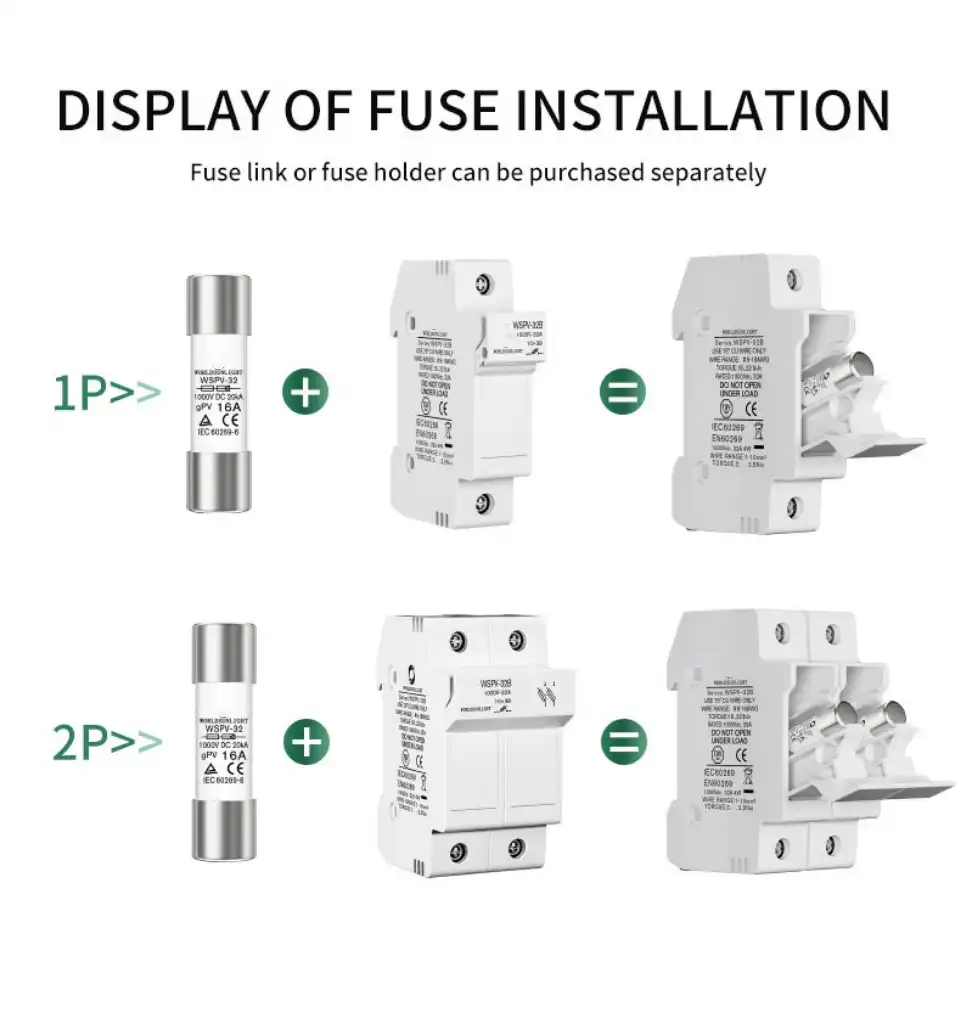

DC Fuses Overview

Fuse Mechanism

A fuse helps keep your system safe from too much current. Inside, there is a thin metal strip called a fusible element. If too much current flows, the metal gets hot and melts. This stops electricity from moving through the circuit. How fast a fuse opens depends on the current amount. If the current is very high, the fuse melts almost right away. If the current is just a bit high, it takes longer to melt. Manufacturers use I²t curves to show this. These curves tell you how much energy melts the fuse at different currents. You can trust these curves because they are tested by the manufacturer.

Fuse Advantages

Fuses have many good points for DC overcurrent protection:

• Fuses act fast when there is a problem. The metal strip melts quickly if there is a fault.
• This quick action keeps sensitive electronics safe.
• Fuses are simple and have no moving parts. They almost never break.
• You can trust fuses to work the same way every time.
• Fuses usually cost less than most circuit breakers. This makes them a smart pick for many systems.

Tip: Pick a fuse if you need to protect delicate equipment. Fuses are fast and reliable.

Fuse Limitations

Fuses also have some limits, especially in DC circuits. DC current does not drop to zero like AC current. This means arcs can last longer and get hotter in DC systems. DC fuses need special designs to handle these arcs. They often have longer paths inside and use special materials to put out the arc.

If you use an AC fuse in a DC circuit, the arc might not stop. This can hurt your equipment or even start a fire. Always use a fuse made for DC. When you pick a fuse, check the manufacturer’s data sheet. Do not just look at catalog numbers. Data sheets tell you about temperature, cycling, and altitude. These things can change how a fuse works in real life.

Best Fuse Applications

You must pick the right protection for your DC system. DC fuses work well in some places. It is important to know where they are best and why they help.

DC fuses protect by acting quickly. They stop bad currents before equipment gets hurt. You see DC fuses in many systems because they are simple and reliable. They also save money.

Some top uses for DC fuses are:

• Renewable energy systems
  Solar and wind power use DC fuses to keep wires, panels, and inverters safe. Fuses are in solar combiner boxes and inverter inputs. They help stop fires and damage if something goes wrong. Wind turbines use DC fuses for battery banks and control circuits.
• Electric vehicles
  Batteries in electric cars need strong protection. DC fuses keep battery packs and charging stations safe. Fuses are in battery management systems and charger outputs. They help stop overheating and keep cars safe during problems.
• Battery storage systems
  DC fuses protect battery strings and cells. Fuses stop short circuits from spreading. They help you fix broken parts fast.
• Telecommunications and data centers
  DC fuses protect backup power and panels. You find them in racks and cabinets. They guard sensitive electronics from surges and faults.
• Industrial DC circuits
  Factories use DC fuses in control panels and motor drives. Fuses keep machines safe and help production run well.

Tip: Always check the fuse’s DC voltage rating before you use it. DC fuses must match your system’s voltage and current.

Use DC fuses when you want quick and reliable protection. Fuses are good if you do not need to reset them often. If you want easy care and low cost, fuses are a smart pick.

Here is a table to help you see if a DC fuse is right for your job:

You keep your system safe and save money with DC fuses. Fuses help you follow safety rules and feel sure your system is protected.

DC Circuit Breakers Overview

Breaker Mechanism

DC circuit breakers help protect your system from too much current. They open the circuit if there is a problem. When you turn off a DC breaker, it must stop the current and put out the arc. DC current does not drop to zero, so arcs last longer and get hotter than in AC systems. The breaker has to make the arc voltage high enough to lower the current. This is called arc management. If the arc voltage gets high, the current drops, and the breaker can safely stop the flow.

• DC circuit breakers must make sure the current goes down for the arc to stop.
• DC breakers have special parts like blowout coils and arc chutes to help with arcs.
• Tests show that DC breakers can stop current well and keep your system safe.

Breaker Advantages

DC circuit breakers have many good points for DC overcurrent protection. They act fast when there is a problem because DC systems do not have zero points. The breaker finds and fixes problems faster than AC breakers. You can reset a DC breaker after it trips, so you do not need to buy a new one like a fuse. This saves you time and money on repairs.

• Fast action helps keep your equipment safe from harm.
• Good arc control stops the arc from coming back and causing more trouble.
• Lower repair costs make DC breakers a smart pick for systems that need to be reset often.

Tip: Pick DC circuit breakers if you want easy resets and less work to keep your system running.

Breaker Limitations

DC circuit breakers also have some problems you should know about. Studies show DC breakers can fail more than AC breakers. The parts inside, especially chemical ones, can wear out as time goes by. DC breakers can only handle a certain amount of energy, which can change how well they protect your system. If the design is too complex, the breaker may not work as well and can be harder to fix.

• High failure rates can make your system less safe.
• Most reports do not show all the weak points of the parts inside.
• You should check how reliable DC breakers are and see if you can make them better.

Note: Always check the breaker’s DC rating and how reliable it is before you use it in your system.

Best Breaker Applications

It is important to know where DC circuit breakers work best. These devices are great when you need fast resets and strong arc control. They are also good if you want your system to be reliable. DC breakers are used in places where systems must keep running. They help protect both equipment and people from faults.

DC circuit breakers are used in many types of systems. The table below shows where they work well:

You see DC breakers in both low-voltage and medium-voltage DC systems. In LVDC systems, they clear faults quickly and help stop dangerous arcs. MVDC systems use them to keep things stable and limit current during problems. Motor control centers use DC breakers to manage power and protect motors.

Aviation and shipboard systems use DC breakers for safety and saving energy. In planes, DC breakers help hybrid electric engines work better. On ships, DC breakers protect main power lines and handle lots of power. Military ships use DC breakers for safe and steady power.

Tip: Pick DC circuit breakers if you need to reset them often or if your system must keep working with little downtime.

DC breakers are good if you want less maintenance. You do not have to replace them after they trip. You just reset them and keep going. This makes DC breakers a smart choice for systems that need to recover fast.

Some common uses for DC circuit breakers are:

• Solar PV main disconnects: You can turn off the system safely for repairs or emergencies.
• Battery storage systems: Breakers protect batteries and let you fix problems quickly.
• Industrial DC panels: You get easy resets and strong protection for machines.
• Electric vehicle charging stations: Breakers help control high currents and keep people safe.

Always check the DC rating of your breaker. Make sure it matches your system’s voltage and current. Pick a breaker that is fast, safe, and easy to reset. This helps your system stay safe and keeps it running with less work.

Selecting DC Overcurrent Protection Devices

Assess System Needs

Before picking a protection device, look at your system’s needs. Every system is different. The device must fit your setup.

Voltage and Current

First, check your system’s voltage and current. Each protection device has a voltage and current rating. If you use the wrong rating, it might not work. High voltage makes arcs harder to stop. High current can hurt wires and equipment. Always pick a device that matches or is higher than your system’s top voltage and current.

Tip: Find out the highest voltage and current your system will have during normal use and faults.

Downtime and Maintenance

Think about how much downtime your system can handle. If your system must run all the time, pick a device that resets fast. Circuit breakers can be reset after they trip. Fuses must be replaced after they blow. If you want less work, circuit breakers are better. If you do not mind changing parts, fuses can work.

Complexity and Features

Some systems need simple protection. Others need more features. Circuit breakers can have extra options. Some breakers have remote control, alarms, or settings you can change. Fuses are simple and have fewer features. If your system is complex, you may want a breaker. If you want something easy, a fuse may be enough.

Budget Considerations

Cost is important for every project. Fuses usually cost less than circuit breakers. If you have a small budget, fuses can save money. But you may need to buy extra fuses for replacements. Circuit breakers cost more at first, but you do not replace them as often. Think about both the first cost and the cost over time.

Fuses vs Breakers Criteria

You should compare fuses and circuit breakers using clear rules. This helps you pick the best device for your system. Look at how each device limits current, handles short circuits, and meets safety rules.

• Fuses often limit current faster than breakers. This can help protect sensitive equipment.
• Circuit breakers may have higher short-circuit ratings for big systems.
• Both devices must meet safety standards. Always check for marks like UL or IEC.

Note: Pick a device that matches your system’s needs for current, safety, and code rules.

Hybrid Protection Strategies

Sometimes, you can use both fuses and circuit breakers together. This is called a hybrid strategy. You might use a fuse for fast protection and a breaker for easy resets. For example, put a fuse on each branch of a solar array and use a breaker as the main disconnect. This gives you quick fault clearing and simple maintenance.

• Hybrid setups can give you the best of both worlds.
• You get fast protection and easy system recovery.
• You can also improve safety and lower downtime.

Tip: Use hybrid protection if your system is big or needs both fast action and easy resets.

When you plan your DC overcurrent protection, always check the ratings and features of each device. Make sure they fit your system’s voltage, current, and safety needs. This keeps your system safe and working well.

Verifying DC Ratings

You always need to check the DC ratings first. DC circuits work differently than AC circuits. Some devices that work for AC will not work for DC. Using the wrong device can cause fires or damage. It can even hurt people.

Why DC Ratings Matter

DC current never crosses zero like AC current does. This makes it hard to stop an arc in DC. Devices need special designs to break DC arcs. If a device only has an AC rating, it might not work in DC. You must use devices with a clear DC rating.

Tip: Only trust a device for DC if you see a DC rating on its label or datasheet.

How to Check DC Ratings

You can find DC ratings in a few places. Always check these things before you buy or use a device:

1. Product Label
   Look at the device for a DC voltage and current rating. It should say something like “250V DC, 10A.”
2. Manufacturer Datasheet
   Go to the manufacturer’s website and get the datasheet. This sheet lists all ratings, like DC voltage, DC current, and breaking capacity.
3. Certification Marks
   Look for marks like UL, IEC, or CSA. These show the device passed safety tests for DC.
4. Wiring Diagrams and Instructions
   Read the installation guide. It should show how to wire the device for DC and list any limits.

What to Look For

Use this checklist to make sure your device is safe for DC:

• DC voltage rating is the same or higher than your system
• DC current rating is the same or higher than your system
• Breaking capacity is high enough for big faults
• Certification mark (UL, IEC, CSA, or similar) is there
• Manufacturer’s datasheet says the device is for DC

Common Mistakes to Avoid

• Do not use a device with only an AC rating in DC systems.
• Do not guess the DC rating if you cannot find it.
• Do not use a device if you cannot find a datasheet or certification.

Note: If you are not sure about a device’s DC rating, ask the manufacturer or pick another product.

Real-World Example

Let’s say you have a 48V DC solar system. You find a fuse marked “250V AC, 10A.” This fuse is not safe for your system. You need a fuse marked “250V DC, 10A” or higher. The DC rating shows the fuse can break a DC arc at 48V or more.

Final Check

Always check every device before you install it. This keeps your system safe and helps you avoid mistakes. When you check DC ratings, you protect your equipment, your money, and yourself.

Application Recommendations

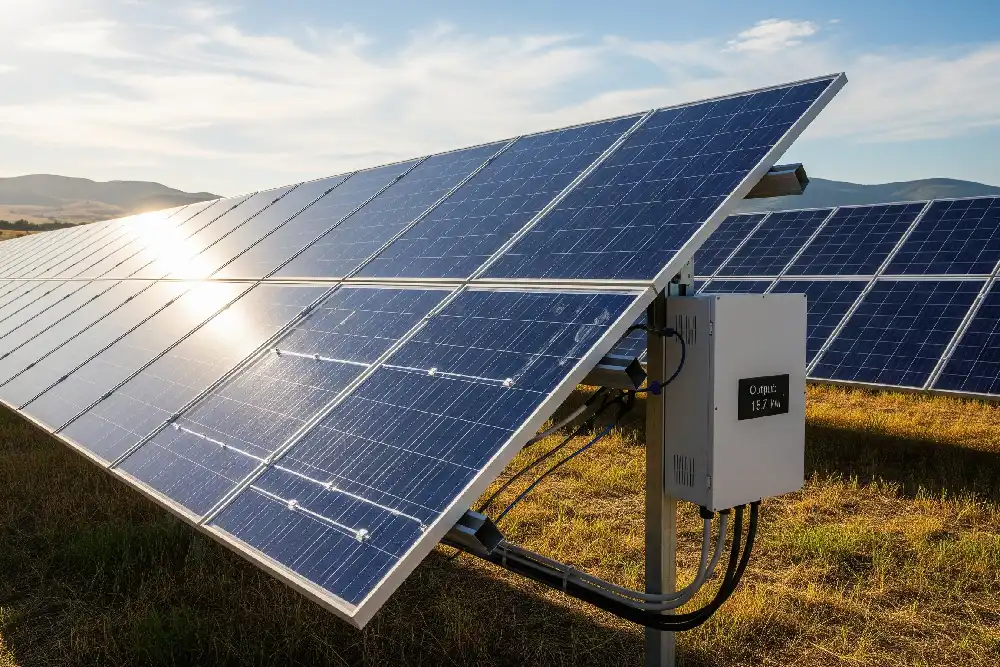

Solar PV Systems

Solar PV systems need special care when picking protection. PV circuits are not the same as AC circuits. You must use devices that fit solar power’s needs.

“PV systems have some unique features that make the application of overcurrent devices somewhat different than their application in conventional ac circuits.”

String Protection

Each PV string needs a fuse or circuit breaker. This stops problems from spreading to other panels. Overcurrent protection keeps equipment safe and lowers fire risk. The device must match the wire and system size.

Always check the wire size before picking a fuse or breaker. This helps your system stay safe and last longer.

Main Disconnects

A main disconnect shuts off the whole PV system. You use it for repairs or emergencies. DC-rated circuit breakers work well for this job. They let you turn the system back on fast. Always pick a breaker with a DC rating that matches your system.

Tip: The right size fuse or breaker keeps your system safe and helps it last longer.

Battery Storage

Battery storage systems need strong protection. You must follow safety rules and use the right devices to keep people and equipment safe.

Cell and String Protection

Each battery cell and string needs a fuse or breaker. This stops problems from spreading and helps you fix things fast. Follow these steps for best results:

1. Follow local rules for where you put batteries.
2. Pick devices that match your battery type and quality.
3. Use remote sensors and monitors for safety.
4. Make a plan with first responders for emergencies.
5. Wear the right PPE if something goes wrong.
6. Set up isolation zones for big systems.
7. Plan for shelter-in-place or evacuation if needed.

• National Fire Protection Association (NFPA) Standard 855 gives safety rules for energy storage.
• Underwriters Laboratory (UL) 9540 and 9540A set fire safety and testing standards.

Disconnects

Disconnects help you turn off batteries for service or emergencies. DC-rated breakers make this easy. Pick devices that match your battery’s voltage and current. Always follow local codes and the manufacturer’s rules.

Industrial DC Systems

Industrial DC systems power machines and controls. You must use the right protection to keep everything running safely.

Feeders

Feeders need fuses or circuit breakers for protection. Each device must have the right rating for your system. Electrical codes say you must put fuses in every ungrounded wire. You also need to label each device clearly.

Main Service

Main service protection guards the whole system. Pick breakers with manual trip switches and clear labels. Make sure all devices work together to stop faults fast. Good coordination keeps equipment safe and cuts downtime.

Note: Always follow electrical codes and use DC-rated devices for every part of your system.

DC Protection Comparison Table

When you pick between DC fuses and DC circuit breakers, you should see how they work in real life. Each one has good and bad points. The best choice depends on your system, your money, and how you want to take care of your equipment.

You can look at the table below to compare DC fuses and DC circuit breakers. This table helps you see which one fits your needs.

Fuses work by melting a thin metal strip when too much current goes through. This happens very fast, in about 0.002 seconds. Fuses protect your equipment from overloads. But you have to replace them after they blow. You pay less at first, but you need to buy new fuses every time one melts.

Circuit breakers use a trip to open the circuit. They work a little slower than fuses, usually in 0.02 to 0.05 seconds. Breakers protect against overloads and short circuits. You can reset a breaker after it trips. You do not need to buy a new one each time. The first cost is higher, but you save money later because you do not need to buy more.

Tip: If you want fast protection for sensitive devices, fuses are a good choice. If you want easy resets and less work, circuit breakers are better.

Think about where you use each device. Fuses are often used for small devices or old systems. Circuit breakers are best for whole systems or new setups where you want to fix things quickly after a problem.

Key points to remember:

• Fuses act faster but must be replaced.
• Circuit breakers can handle more problems and can be reset.
• Your choice changes safety and how much you spend over time.

If you know what your system needs, you can use this table to help you choose. Always check the DC ratings and make sure your device matches your voltage and current. This keeps your system safe and working well.

Common Mistakes in DC Overcurrent Protection

Using AC Devices

Some people think AC devices work in DC systems. This is not true. AC and DC currents act in different ways. DC current never drops to zero. This makes arcs last longer and harder to stop. If you use an AC fuse or breaker in DC, it might not stop the current. This can cause big problems.

• Equipment can break very fast.
• Explosions can happen if arcs do not stop.
• Fires can start from arcs that keep burning.
• Electric shock is a real danger.
• Electrocution can happen if you use the wrong device.

Always look for a DC rating on the device label. Never guess about the rating. Using the wrong device can hurt your system and people.

Tip: Only use devices with a clear DC rating for DC overcurrent protection.

Undersizing Devices

Picking a device that is too small can cause problems. You might want to save money, but small devices do not protect well. They can trip too much or not stop bad currents.

Always figure out the right size for your device. Do not guess or use old habits. The right size keeps your system safe and working well.

Note: Use manufacturer charts and system calculations to pick the correct device size.

Ignoring Coordination

You must make sure your devices work together. Coordination means each device helps protect the system. If you skip this, you can have bigger problems. Devices might trip at the wrong time or not stop faults.

• You keep power on for important things.
• You stop power outages that are not needed.
• You help keep people safe in the building.
• You fix power faster when something goes wrong.

Good coordination makes your system strong and safe. It also helps repairs go faster. Plan your protection so all devices work together.

Tip: Review your system layout and make sure each protection device is coordinated with others.

Focusing Only on Cost

You may want to save money when you choose DC overcurrent protection devices. Cost matters in every project. If you focus only on price, you can miss important safety features. Cheap devices often lack strong DC ratings or certifications. These devices may not protect your system during faults.

Low-cost fuses and breakers can look good at first. You might think you are saving money. If a device fails, you pay more for repairs and downtime. Your system can stop working. You may need to replace expensive equipment. Fires and injuries can happen if protection fails.

Tip: Always check the quality and ratings before you buy. Saving money now can cost you more later.

Here are some risks when you focus only on cost:

• You pick devices with weak DC ratings.
• You ignore certifications like UL or IEC.
• You buy products with poor reliability.
• You choose devices that do not match your system’s needs.

You should balance cost with safety and reliability. Look for devices with strong DC ratings and certifications. Ask for datasheets and test reports. Compare products by more than just price. Think about how long the device will last. Reliable devices protect your system and lower your costs over time.

You can use these steps to make better choices:

1. Check the DC rating and certification.
2. Read the manufacturer’s datasheet.
3. Ask about warranty and support.
4. Compare total cost, not just the price tag.
5. Pick devices that match your system’s needs.

Note: A low price does not always mean a good deal. Quality protection keeps your system safe and saves money in the long run.

If you focus only on cost, you risk your system and safety. Choose protection devices that offer value, reliability, and strong ratings. Your system will run better, and you will avoid costly mistakes.

Best Practices and Checklist

You want your DC system to be safe and work well. Good habits help you stop problems before they start. These tips protect your system and everyone who uses it.

Best Practices for DC Overcurrent Protection

• Always check the interrupting and short-circuit ratings on your fuses and breakers. Make sure these ratings are high enough for your system’s biggest fault current.
• Look at all electrical splices and ends. Check for loose wires, heat marks, or arcing. Tighten any loose parts right away.
• If a device trips, find out why before you reset or replace it. Do not just reset and leave. Fix the cause so it does not happen again.
• If a molded case circuit breaker has problems, replace it. You cannot fix or adjust these breakers. A new one is safest.
• Test your backup power systems. Try your generators and UPS batteries to make sure they work when needed.
• Check your motor circuits, disconnects, and overload settings. Make sure each part fits your system and is set up right.

Tip: Regular checks and quick fixes help you stop bigger problems later.

DC Overcurrent Protection Checklist

Use this checklist to help keep your system safe:

Quick Reminders

• Only use devices with clear DC ratings.
• Keep extra fuses and breakers ready for fast repairs.
• Label all protection devices so you can find them easily.
• Plan regular checks for your system.
• Teach everyone who works with your system about safety.

⚡ Remember: Careful checks and the right devices keep your DC system safe, reliable, and ready for anything.

You keep your system safe when you pick the right DC overcurrent protection devices for your needs. Using DC-rated and certified devices helps stop fires and damage. Hybrid strategies can also help you avoid long downtime.

• Good protection stops dangerous arcs and keeps batteries safe.
• Some devices do not work for DC. Always pick ones made and tested for your system.
• If you know the voltage ratings and use the checklist, you can choose the right device.

Make smart choices to stay safe and keep your system working well every time.

FAQ

What is the main difference between a DC fuse and a DC circuit breaker?

A DC fuse melts and breaks the circuit when too much current flows. You must replace it after it blows. A DC circuit breaker trips open and can be reset. Both protect your system from overcurrent.

Can I use an AC-rated device in a DC system?

No, you should not use AC-rated devices in DC systems. DC arcs last longer and need special designs. Always choose devices with a clear DC rating for safety.

How do I know if my protection device is DC-rated?

Check the device label and the manufacturer’s datasheet. Look for a DC voltage and current rating. You should also see certification marks like UL or IEC.

When should I use a fuse instead of a circuit breaker?

Use a fuse when you want fast protection for sensitive equipment. Fuses work well in simple systems where you do not need to reset often. They cost less and act quickly.

Why do DC arcs last longer than AC arcs?

DC current flows in one direction and never drops to zero. This makes arcs harder to stop. AC current crosses zero many times each second, which helps break arcs faster.

What happens if I undersize my protection device?

If you pick a device that is too small, it may trip or blow too often. This can cause unwanted shutdowns. It may also fail to protect your system during big faults.

Do I need both fuses and breakers in my system?

You can use both for better protection. Fuses give fast fault clearing. Breakers let you reset quickly. Many large systems use a hybrid approach for safety and easy maintenance.

How often should I check my overcurrent protection devices?

You should check your devices at least once a year. Look for signs of wear, heat, or damage. Test breakers and replace blown fuses right away to keep your system safe.

See also

What is the difference between a circuit breaker and a fuse?

The difference between miniature circuit breakers and fuses

Can I replace a fuse with a circuit breaker?

Understanding DC Miniature Circuit Breakers for Beginners

DC Circuit Breaker Solutions for Safe and Efficient Solar Power
