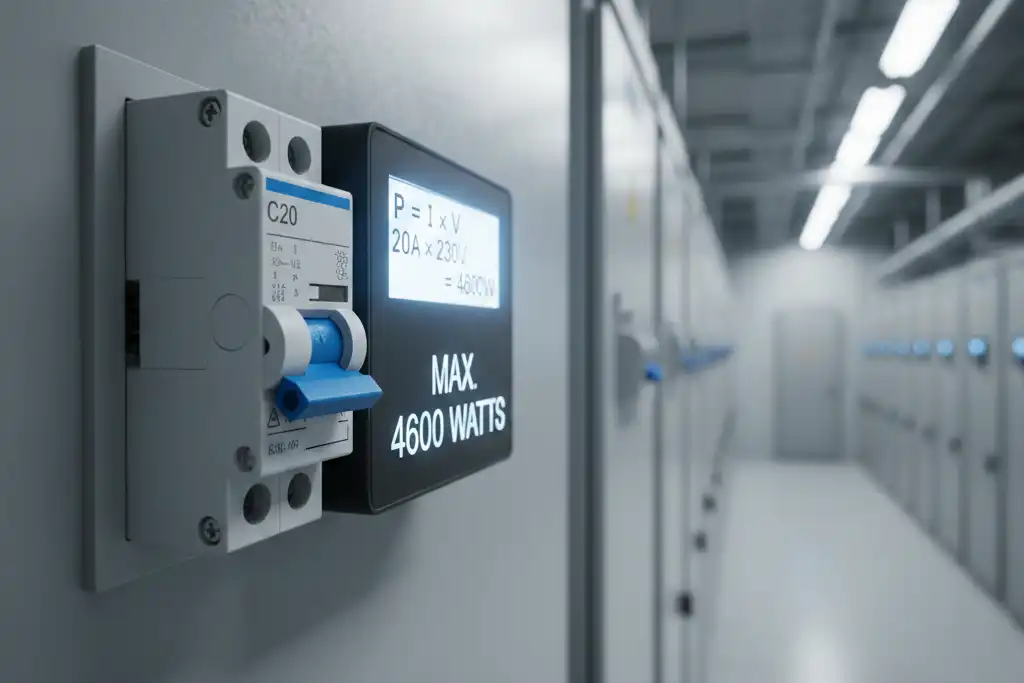

How many watts can a 20 ampere circuit breaker handle

A 20 ampere circuit breaker can handle a lot of power. The amount depends on the circuit’s voltage.

• On a 120-volt circuit, a 20 ampere circuit breaker can handle 2,400 watts.

• On a 240-volt circuit, it can handle 4,800 watts.

For continuous use, the 80% rule lowers these numbers:

• 1,920 watts for 120 volts with a 20 ampere circuit breaker.

• 3,840 watts for 240 volts.

Knowing this helps you use electricity safely. For a 20 ampere circuit, the total wattage of devices must stay below these limits.

For example:

• A 20 ampere circuit breaker on a 208V circuit can handle 4,160 watts.

• But for safety, keep it at 3,328 watts for continuous use.

Key Takeaways

• A 20 amp breaker can handle 2,400 watts at 120 volts.

• It can also handle 4,800 watts at 240 volts.

• For safety, use only 80% of its capacity.

• This means 1,920 watts at 120 volts and 3,840 watts at 240 volts.

• Use the formula W = A × V to find watt limits.

• Spread out devices to avoid overloading the circuit.

• Check your circuits often and ask an electrician for help.

Calculating the Wattage of a 20 Amp Circuit Breaker

Formula for wattage calculation

To find out how many watts a circuit can handle, use this formula:

W = A × V

Here, “W” means watts, “A” is amps, and “V” is volts. This formula helps you figure out the power limit of a 20 amp circuit breaker.

For example, if the voltage is 120 volts:

W = 20 × 120 = 2,400 watts

If the voltage is 240 volts:

W = 20 × 240 = 4,800 watts

This formula is key to understanding how a 20 amp circuit breaker works. It helps you safely match devices to the circuit’s power capacity.

Examples for 120V and 240V circuits

Let’s see how this works in real life:

• 120V Circuit Example:
  Imagine a 20 amp circuit breaker in your house. Using the formula, it can handle up to 2,400 watts. This is enough for small appliances like a microwave (1,200 watts) and a toaster (800 watts).

• 240V Circuit Example:
  For bigger appliances like dryers, 240V circuits are common. A 20 amp circuit breaker here can handle up to 4,800 watts. This works for high-power devices like a dryer (4,000 watts) or an electric stove.

Here’s a simple table to explain:

This table shows how voltage changes the wattage a 20 amp breaker can handle.

Applying the 80% rule for continuous loads

For safety, follow the 80% rule for devices running over three hours. Use only 80% of the circuit’s wattage.

For a 120V circuit with a 20 amp breaker:

80% of 2,400 watts = 1,920 watts

For a 240V circuit:

80% of 4,800 watts = 3,840 watts

This rule stops overheating and keeps the breaker from tripping. For example, if a space heater (1,500 watts) runs on a 120V circuit, other devices should not use more than 420 watts.

By following this rule, you can safely use continuous loads and protect your circuit breaker.

Factors That Affect How Many Watts a Circuit Can Handle

How Voltage Changes Wattage

Voltage decides how much power a circuit can handle. The watts depend on both the voltage and the amps. Higher voltage lets more watts flow through the same amps. For example, a 20-amp circuit at 120 volts can handle 2,400 watts. At 240 volts, it can handle 4,800 watts.

If voltage drops below normal, devices may not work well. They might run poorly or even stop working. If voltage spikes too high, it can overload the circuit. This might trip the breaker or harm your devices.

To stay safe, match your devices to the circuit’s voltage. Use surge protectors or voltage stabilizers to manage changes and protect your appliances.

Continuous Loads vs. Short-Term Loads

The type of load affects how much power a circuit can handle. Continuous loads run for three hours or more and need extra care. The 80% rule says to use only 80% of the circuit’s power for these loads. For a 20-amp circuit, this means 1,920 watts at 120 volts or 3,840 watts at 240 volts.

Short-term loads, like a microwave or toaster, use power for a short time. These can use the circuit’s full wattage safely.

When setting up your devices, figure out which ones are continuous or short-term. This helps you share power wisely and avoid overloading the circuit.

How Wire Size and Circuit Design Matter

The wires and circuit design affect how much power it can handle. Bigger wires carry more current and allow more watts. Copper wires are better than aluminum because they conduct electricity better.

Following the National Electrical Code (NEC) keeps your wiring safe. These rules say what wire size and insulation you need for different circuits. Good insulation stops wires from overheating and lowers fire risks.

Circuit design also matters for devices with high starting power, like fridges or air conditioners. These need circuits that can handle power surges. Spreading power across circuits avoids overloads and works better.

To make sure your 20-amp circuit is safe, ask an electrician. They can check your wiring and design to meet your power needs.

Safety Tips for Using a 20 Amp Circuit Breaker

Avoiding Overloads and Overheating

Too much power on a circuit can cause overheating. This can be dangerous. To stop this, manage the power on your 20 amp breaker. Use this formula to calculate the load:

Current (A) = Power (W) / Voltage (V)

Keep the total power below the circuit’s limit. For devices running long hours, follow the 80% rule. This means staying under 1,920 watts for 120 volts or 3,840 watts for 240 volts. Spread devices across different circuits to avoid overloading one.

Picking the right circuit breaker is also important. Circuit breakers stop too much electricity from flowing. This protects your home from dangers. Experts can check for problems like low voltage or overloaded circuits early. These steps keep your system safe and working well.

Why Professional Installation Matters

Hiring a pro ensures your breaker and wires are safe. Electricians follow rules like the National Electrical Code (NEC). For 20 amp circuits, they use 12-gauge copper wires. This stops wires from overheating and lowers fire risks.

Professionals also make sure your setup follows local laws. This avoids fines and legal trouble. They can make your system more energy-efficient, saving money and helping the planet. A pro installation also reduces electrical dangers, keeping your home safe.

When to Upgrade or Call an Electrician

Call an electrician if your breaker trips often. Warm outlets or burning smells are also warning signs. These mean your circuit is overloaded.

If you add big devices like stoves or air conditioners, you may need an upgrade. An electrician can check your power needs and suggest changes. Regular check-ups can find problems early. This keeps your system safe and reliable.

Practical Tips for Efficient Use of a 20 Amp Circuit Breaker

Balancing Electrical Loads

Spread devices across circuits to avoid overloading one breaker. Don’t plug many high-wattage items, like heaters or microwaves, into one outlet. Use different outlets for these devices to stay safe.

Make sure the circuit matches the wiring and outlet capacity. A 20 amp circuit needs wires that handle 20 amps. You can use 15 amp outlets, but keep the load under 12 amps. This is especially important when using heating devices often in winter.

Tip: A power strip with a circuit breaker helps manage loads safely.

Upgrading Circuits for High-Power Devices

Big devices like stoves or air conditioners need more power. Upgrading your circuit lets these devices work safely and efficiently.

Here’s a table with upgrade options:

If you want to add big devices, ask an electrician. They’ll help you pick the right upgrade for safe use of amperage and wattage.

Regular Inspections and Maintenance

Checking your circuit breaker often keeps it working well. Electrical problems cause many injuries and deaths yearly, so inspections are important.

Follow these tips:

• Look at outlets and wires for damage or overheating.

• Test the breaker to see if it trips when overloaded.

• Hire professionals to find problems early.

Taking care of your equipment makes it last longer and work better. This prevents sudden issues and ensures your breaker handles its wattage safely.

Note: Maintenance improves safety and keeps your electrical system reliable.

A 20 amp circuit breaker can handle 2,400 watts at 120 volts. For safety, limit continuous use to 1,920 watts. This prevents overheating and keeps the circuit safe.

Voltage, load type, and wiring affect how circuits work. Higher voltage allows more power, while good wiring ensures safety. Use the 80% rule for long-running devices. Ask experts for help when needed. Managing power wisely protects your home and electronics.

FAQ

What happens if you go over a 20 amp breaker’s limit?

Going over the limit makes the breaker trip. This stops overheating and fire risks. If it trips often, the circuit is overloaded. Lower the load or ask an electrician to check it.

Can a 20 amp breaker handle big appliances?

Yes, if the appliance’s watts fit the breaker’s limit. For example, a 240V circuit can handle 4,800 watts. Always check the appliance’s power needs and use the 80% rule for safety.

How do you find safe watts for long use?

Multiply the circuit’s max watts by 0.8. For 120V, it’s 1,920 watts (2,400 × 0.8). For 240V, it’s 3,840 watts (4,800 × 0.8). This keeps things safe and cool.

Can you use extension cords with a 20 amp breaker?

Only if the cord is rated for 20 amps. Use strong cords to stop overheating. Don’t plug many big devices into one cord. This can overload the circuit and cause problems.

When should you replace a 20 amp breaker?

Replace it if you add big devices like stoves or AC units. Breakers that trip often or warm outlets mean it’s time to upgrade. Ask an electrician to check your setup and suggest fixes.
