10 common installation problems and solutions for circuit breakers

Here are ten problems you may face during circuit breaker installation:

• Overloaded circuits
• Tripped breakers
• Faulty wiring
• Wrong breaker size
• Loose connections
• GFCI and arc fault problems
• Backstabbed wires
• Old or burned out breakers
• Wrong amp wiring
• Mistakes inside the panel

You can fix these problems with easy steps. Be careful and follow the instructions. Use this guide if you need help. Safe electrical systems start with good troubleshooting.

Key Takeaways

• Too many devices can make breakers trip. Unplug things you do not need. Put big appliances on different circuits to stop overloads.
• Breakers that trip may mean there are problems. Look for broken wires and make sure connections are tight. If you still have trouble, ask a licensed electrician for help.
• Bad wiring can be very dangerous. Check all connections with care. Cover any wires that are showing. Make sure grounding is done right to keep everyone safe.
• Picking the right breaker size is important. Match the breaker to how much power the circuit uses. Follow the National Electrical Code to stay safe and follow rules.
• Check your circuit breakers often to stop problems. Watch for signs like burning smells or lights that flicker. Change old breakers right away.

Overloaded Circuits

How it happens

Sometimes, lights flicker or breakers trip when you plug in too many things. This means the circuit is overloaded. It happens a lot when installing a circuit breaker. The problem starts when you use more electricity than the circuit can handle. Many people do not know how easy it is to overload a circuit. This is common in kitchens or rooms with lots of electronics.

Here are some reasons circuits get overloaded:

• You plug in many high-wattage appliances, like microwaves or hair dryers, on one circuit.
• You use extension cords or power strips to add more devices than the outlet is made for.
• Your house has old or broken wiring that cannot handle today’s electrical needs.
• The circuit is not designed for the amount of electricity you use in that spot.

If breakers trip a lot, or outlets buzz, or wall plates feel warm, these are warning signs. Overloaded circuits can cause fires, so do not ignore them.

Solution

You can fix overloaded circuits by taking a few simple steps. First, look at what is plugged into each outlet. Unplug things you do not need. Try to use high-wattage appliances on different circuits. If you use power strips, do not plug in too many things.

Next, check your wiring. If your house is old, you might need an electrician to look at and upgrade the wiring. Newer homes need circuits that match how much electricity you use. When installing a circuit breaker, plan your circuits for each room’s needs.

Here’s a quick tip:

Label each circuit in your panel. This helps you remember which outlets and appliances go with each breaker. It makes it easier to stop overloads and fix problems.

If you still have trouble, call a licensed electrician. Safety is most important, and overloaded circuits are dangerous.

Tripped Breakers

Causes

You might notice your breaker trips right after you finish circuit breaker installation. This can feel frustrating, but it happens for a few common reasons. Here’s what usually causes a breaker to trip:

• Overloaded Circuits: You plug in too many devices at once. The breaker shuts off to protect your home.
• Short Circuits: Two hot wires touch, or a hot wire touches metal. This makes the current spike and the breaker trips.
• Ground Faults: The hot wire touches the ground wire or metal. Damaged insulation or loose connections often cause this.
• Aged or Damaged Wiring: Old wires can break down. When insulation wears out, shorts happen and breakers trip.

Each of these problems can pop up during installation or soon after. If your breaker trips more than once, you should pay attention. It’s not just a small annoyance. It means something needs fixing.

Tripped breakers signal potential electrical problems that need attention. They indicate that your system has experienced an overload, short circuit, or ground fault. Frequent trips suggest underlying issues that require an electrician’s visit.

Solution

You can solve tripped breaker problems with a few steps. First, check what you plugged in. Unplug some devices and see if the breaker stays on. If it trips again, look for signs of damaged wires. You might see burn marks, melted insulation, or a strange smell near outlets.

Next, inspect the panel. Make sure all wires connect tightly. Loose wires can cause ground faults or short circuits. If you find old or brittle wires, you should call an electrician. Don’t try to fix wiring problems yourself if you feel unsure.

Label each breaker in your panel. This helps you track which circuit trips most often. If the same breaker keeps tripping, you may need to split the load or upgrade the wiring.

Remember, safety comes first. If you can’t find the problem, get help from a licensed electrician. Circuit breaker installation works best when you follow safety rules and fix issues early.

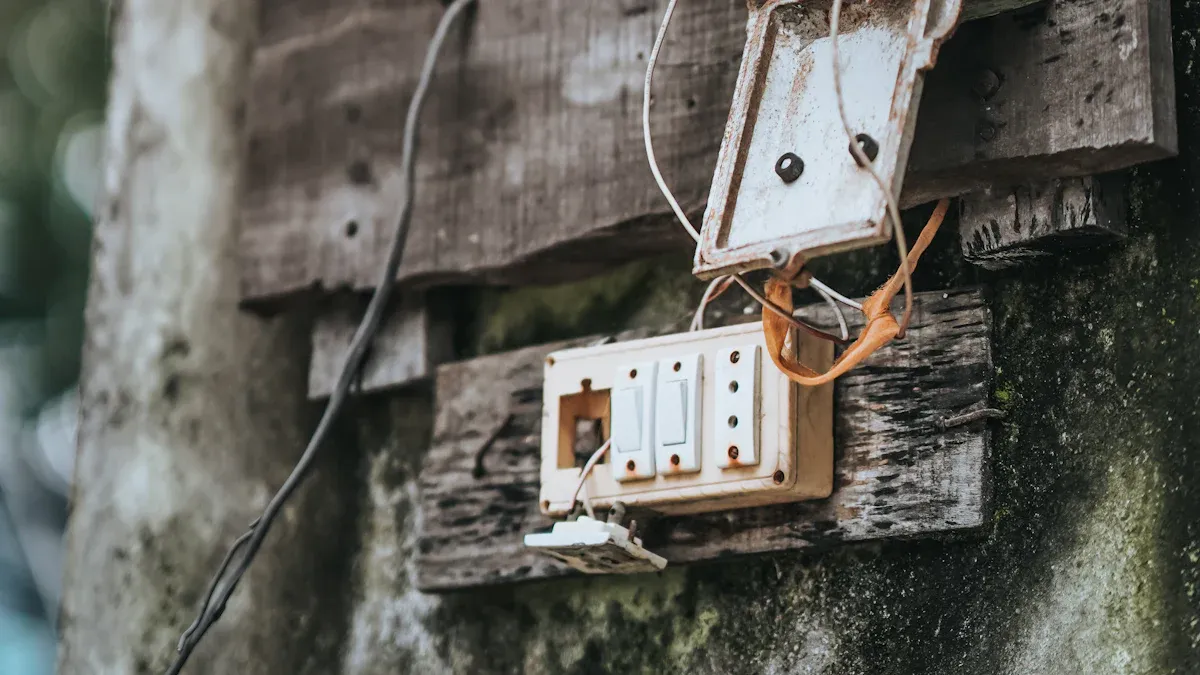

Faulty Wiring

How it occurs

You might think wiring is simple, but mistakes happen often during circuit breaker installation. Wires can get mixed up, or you might use the wrong size. Sometimes, you see exposed wires sticking out. That’s a big fire risk. You may also find outlets without a ground wire. These ungrounded receptacles can cause fires or arcing. If you connect more than one wire to a single breaker, you increase the chance of overheating.

Here are some frequent wiring errors you might spot:

• Using the wrong size wire for the breaker
• Leaving wires exposed inside the panel or at outlets
• Forgetting to connect the ground wire
• Putting two or more wires under one breaker terminal

Let’s look at a quick guide for matching wire size to breaker rating:

If you use a wire that’s too small for the breaker, the breaker might not trip when it should. That can lead to overheating and fire.

Solution

You can fix faulty wiring by checking each connection carefully. Start by turning off the power at the main panel. Look for exposed wires and cover them with wire nuts or electrical tape. If you see more than one wire on a breaker, separate them. Each breaker should have only one wire unless the manufacturer says otherwise.

Check the wire size. Match it to the breaker using the table above. If you find ungrounded outlets, call a licensed electrician. Grounding is important for safety. Never ignore exposed wiring. If you feel unsure, ask a professional for help.

Tip: Always follow the manufacturer’s instructions for wiring and breaker installation. Safety comes first. Double-check your work before turning the power back on.

Faulty wiring can cause big problems, but you can fix most issues with careful inspection and simple repairs.

Incorrect Breaker Sizing

Why it matters

Choosing the wrong size breaker can cause big problems in your home or business. You might think any breaker will work, but that is not true. If you pick a breaker that is too big or too small, you put your safety at risk. Here is what can happen when you use the wrong size:

• Mismatched breakers may not trip during overloads or short circuits. This can lead to electrical fires or damage your appliances.
• Using a breaker that does not fit right can cause loose connections. Loose connections may lead to arcing or overheating.
• If you do not follow the rules for breaker sizing, you might break electrical codes. This can make your home unsafe and cause trouble with insurance or selling your property.

You want your electrical system to work well and keep everyone safe. Picking the right breaker size is a key step in circuit breaker installation.

Solution

You can avoid problems by following a few simple rules when you choose a breaker. Here is a table with some easy guidelines:

Tip: Always check the label on your wires and devices. The label tells you how many amps they need. Never guess the size. If you feel unsure, ask a licensed electrician for help.

When you follow these steps, you protect your home and your family. You also make sure your electrical system works the way it should.

Loose Connections

How it happens

Loose connections can happen when you install a circuit breaker. You may think everything is tight, but sometimes wires are not held well. This can cause problems later on. Here are some reasons why this happens:

• You might not fix or put in the electrical system the right way.
• Wires and terminals can move because of shaking or changes in temperature. When it gets hot or cold, metal parts get bigger or smaller.
• Rust or other stuff can build up on metal parts. This makes it hard for wires to stay tight.
• If too much electricity goes through the wires, it can make the connections loose.

Sometimes, the hot wires on circuit breakers in the main panel are not tight enough. This can make your lights blink or cause trouble with things plugged into the same circuit. That is why you should check every connection when you install a breaker.

Solution

You can fix loose connections by following a few easy steps. First, always turn off the power before you start. Use a screwdriver to check each wire and terminal. Make sure every screw is tight, but do not make it too tight or you could break the wire. If you see rust or dirt, clean it off or change the part.

Loose connections are not just a small problem—they can be dangerous. Look at this table to see what can happen if you do not fix them:

Tip: Always check your work when you finish. If you are not sure, ask a licensed electrician to look at your panel. Safe connections help keep your home and family safe.

GFCI and Arc Fault Issues

Common mistakes

Many people think installing GFCI and arc fault circuit breakers is easy. But problems happen a lot. Sometimes, breakers trip when nothing is wrong. Other times, the breaker will not reset. You might see the breaker trip again and again. This can get annoying very quickly.

Here is a table with some common problems:

You can have trouble when you add GFCI or AFCI breakers to old circuits. Old house wiring may not work with new safety devices. If you use both GFCI and AFCI protection, test them often to make sure they work.

Tip: Always check the wiring before you put in these breakers. Old or broken wires can cause lots of problems.

Solution

You can fix most GFCI and arc fault problems by following some steps. First, put the right breaker in the right place. The National Electrical Code says GFCI breakers go in bathrooms, kitchens, laundry rooms, outside outlets, and basements. AFCI breakers go in bedrooms, living rooms, dining rooms, hallways, and closets. Some places need both types for extra safety.

Here is a quick guide:

If your breaker trips a lot, unplug everything and reset the breaker. Plug things back in one at a time. If it trips again, look for loose wires or broken insulation. You may need to change old outlets or fix wiring. If you cannot find the problem, call an electrician.

Remember: Test your breakers every month to keep your home safe. Press the “Test” button and see if the breaker shuts off. If it does not, you need to get a new one.

Backstabbed Wires

What it is

You might hear the term “backstabbed wires” when working with outlets or circuit breakers. This method means you push electrical wires into small holes on the back of an outlet instead of wrapping them around screws. The outlet holds the wire with a spring clip inside. Many people use this technique because it saves time during installation. It looks neat and feels quick, but it hides a big problem.

Backstabbed wires often create loose connections. The spring clip can lose grip as time passes. You may not notice anything wrong at first, but these loose connections can cause trouble later. Outlets with backstabbed wires can overheat. Sometimes, you find flickering lights or outlets that stop working. In home inspections, backstabbed wires show up often as a reason for electrical failures. Inspectors see them as a risk for fires and overheating. Regular checks help catch these problems before they get worse.

Backstabbing wires may seem easy, but it can lead to unstable connections and safety hazards. You want your electrical system to last and stay safe.

Solution

You can fix backstabbed wires with a few simple steps. First, turn off the power at the main panel. Remove the outlet cover and gently pull out the outlet. Look for wires pushed into holes on the back. If you see them, you should move each wire to the screw terminal on the side of the outlet.

Here’s a quick guide to help you:

You should always use screw terminals for a solid connection. This method keeps wires tight and lowers the risk of overheating. If you feel unsure, ask a licensed electrician for help. Regular inspections help you spot backstabbed wires before they cause bigger problems.

Tip: When you install new outlets or breakers, avoid push-in wiring. Choose screw terminals for safety and reliability. 🔧

Aging or Burned Out Breakers

Signs

You might wonder how to spot an aging or burned out breaker. It’s not always easy, but there are clear signs you can look for. If you smell something burning near your panel, that’s a big warning. This smell means wires or insulation may have overheated. Your panel might not protect your home from electrical shorts anymore.

Sometimes, your breaker trips more often than usual. You reset it, but it trips again. This can mean the breaker is worn out or there’s a short circuit. Flickering lights are another clue. If your lights blink or appliances stop working for a moment, your breaker may struggle to handle the load.

Touch the panel. If it feels hot, you could have excessive current flow. Physical damage is also a sign. Look for cracks, rust, or scorch marks around the breaker or panel. These problems mean you need to act fast.

Here’s a quick table to help you spot trouble:

Most residential circuit breakers last between 30 to 40 years with normal use and good maintenance. If you see these signs, your breaker may be reaching the end of its life.

Solution

You can fix problems with aging or burned out breakers by taking action right away. First, turn off the power before you check the panel. If you notice a burning smell, flickering lights, or physical damage, don’t ignore it. These signs mean your breaker may not protect your home anymore.

Here’s what you should do:

1. Unplug devices from the affected circuit.
2. Try to reset the breaker. If it won’t reset, stop and call an electrician.
3. Inspect the panel for cracks, rust, or scorch marks.
4. If the panel feels hot, keep the power off and get professional help.

Tip: Don’t try to fix a burned out breaker yourself. Call a licensed electrician if you see any warning signs. Safety comes first!

If your breaker is old—over 30 years—it’s smart to have it inspected even if you don’t see problems. Regular checks help you catch trouble early. Replacing an old breaker keeps your home safe and your electrical system working well. 😊

Incorrect Amp Wiring

How it happens

You might think wiring amps is easy, but mistakes happen more often than you expect. Sometimes, you grab the wrong wire size because you want to finish the job quickly. Other times, you pick a breaker that does not match the amps needed for your circuit. Loose wire connections sneak up on you, especially if you rush or use old tools. These errors can cause big problems in your electrical system.

Here are some typical causes of incorrect amp wiring during circuit breaker installation:

• Using the wrong wire size can lead to overheating and potential fires.
• Incorrect breaker sizing can cause electrical failures and unnecessary power interruptions.
• Loose wire connections may result in sparks and overheating, posing safety hazards.

You might not notice these mistakes right away. Over time, wires get hot, breakers trip, and appliances stop working. Sometimes, you smell something burning or see scorch marks near outlets. These are warning signs that you need to check your amp wiring.

Did you know? About 20% of electrical fires each year are caused by improper use of electrical components, including incorrect fuses. That’s a big risk you don’t want in your home.

Solution

You can fix incorrect amp wiring by following a few simple steps. First, always check the wire size before you start. Use a chart or table to match the wire gauge to the breaker amps. If you feel unsure, ask an electrician or look at the National Electrical Code for guidance.

Here’s a quick table to help you:

Next, make sure every wire connection is tight. Use a screwdriver to check each terminal. If you see loose wires, fix them right away. Replace any damaged or burned wires. Never use a breaker with a higher amp rating than your wires can handle. For example, if you fit an electric kettle designed for 6.8 amps with a 15-amp fuse, it may not blow during an overcurrent situation. This can lead to overheating and a potential fire.

Safety tip: Always double-check your work before turning the power back on. If you spot any problems, call a licensed electrician. Your safety matters most! 🔥

Incorrect amp wiring can cause fires, damage appliances, and put your family at risk. Take your time, follow the rules, and keep your electrical system safe.

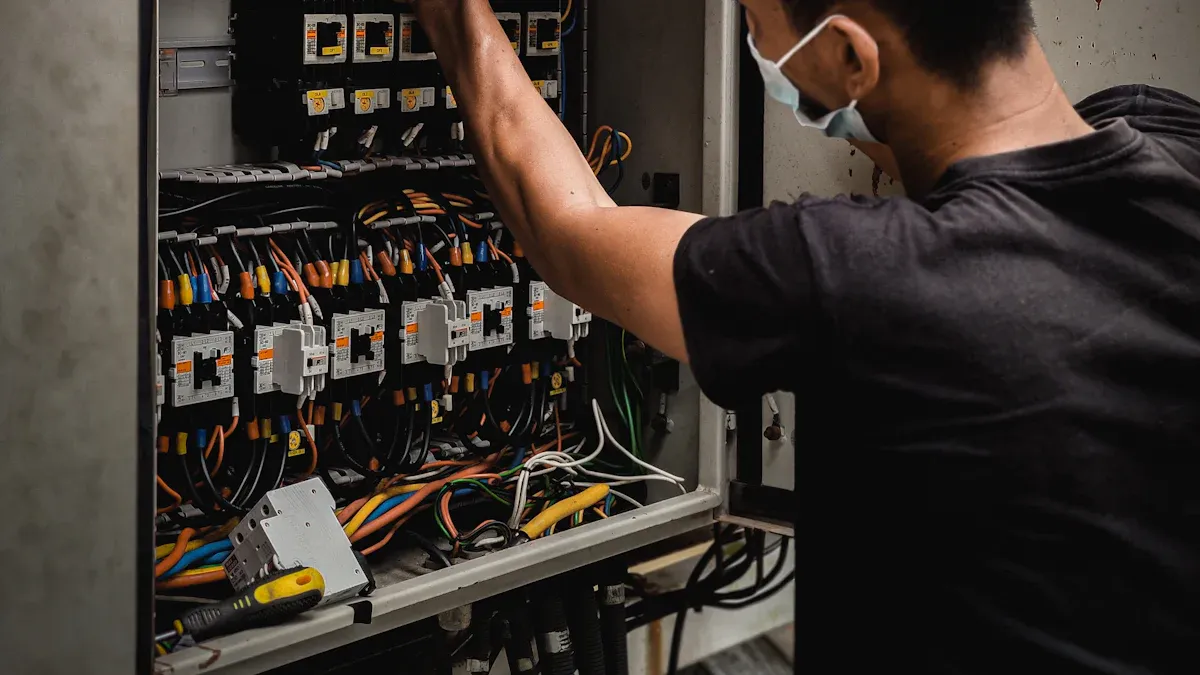

Circuit Breaker Installation: Panel Interior Handling

Why it matters

When you open up the panel during circuit breaker installation, you face a lot of hidden risks. You might see a maze of wires, but each one has a job. If you move too quickly or skip steps, you can damage wires or even cause a short circuit. That’s why you need to handle the panel interior with care.

Here’s why careful handling matters:

• Wire color coding helps you know what each wire does. If you mix them up, you could connect the wrong voltage or create a safety hazard.
• Labels on wires show where they come from and where they go. This makes fixing problems much easier later.
• A neat and organized panel keeps wires cool and helps everything work right. Messy wires can overheat and cause trouble.

If you rush or ignore these details, you risk fires, shocks, or expensive repairs. Taking your time now saves you headaches later.

Solution

You can keep yourself and your home safe by following a few simple steps when working inside the panel.

• Always turn off the main breaker before you start.
• Wear personal protective equipment like gloves and safety glasses.
• Use tools made for electrical work.
• Keep your hands away from exposed wires and never touch conductors.
• Make sure the area is dry. Stay away if there’s water nearby.
• Plan an escape path in case something goes wrong.
• Stand to the side of the panel and avoid looking straight at it.

When you remove the panel cover, go slow. Don’t yank or force anything. Watch out for line conductors and ground wires. If you see something you don’t understand, stop and ask for help.

Follow the manufacturer’s instructions step by step:

1. Check everything before you start.
2. Take off the panel cover and write down how things look.
3. Inspect the inside for damage or loose wires.
4. Test fit the new breaker before connecting wires.
5. Prepare the wires and make sure they are the right length.
6. Mount the breaker and connect the wires tightly.
7. Double-check your work.
8. Put the cover back on and label everything.
9. Turn the power back on and test the circuit.

Tip: Always read the installation manual for your breaker. If you skip steps or guess, you might cause a problem that’s hard to fix.

If you follow these steps, you make circuit breaker installation safer and more reliable. You also make future repairs much easier.

When you fix circuit breaker installation problems fast, your home stays safe. There are some big benefits to doing this:

Use the tips in this guide and have an electrician check your system every few years. If you are not sure what to do, call a licensed electrician for help!

FAQ

What tools do you need for circuit breaker installation?

You need a screwdriver, wire stripper, voltage tester, and safety gloves. A flashlight helps you see inside the panel. Always keep your tools organized. If you feel unsure, ask an electrician for help.

How often should you check your circuit breakers?

You should check your breakers every year. Look for signs like flickering lights or burning smells. Regular checks help you catch problems early and keep your home safe.

Can you replace a circuit breaker by yourself?

You can replace a breaker if you know how to work safely. Turn off the main power first. If you feel nervous or see damage, call a licensed electrician. Safety comes first!

Why does your breaker keep tripping?

Your breaker trips because of overloads, short circuits, or ground faults. Too many devices or damaged wires can cause this. Unplug some things and check your wiring. If it keeps happening, get professional help.
