A molded case circuit breaker stops electricity if there is a problem. It can sense things like too much power or a short circuit. The breaker has a hard case that protects its parts. It keeps electrical systems safe by stopping dangerous currents fast.
Electrical safety rules say these breakers must be used in many places. This helps keep people and equipment safe from harm.
The worldwide market for these breakers was about $7.2 billion in 2023. It might grow to $12.5 billion by 2032. This shows they are becoming more important in homes, businesses, and factories.
Key Takeaways
- Molded case circuit breakers (MCCBs) keep electrical systems safe. They stop dangerous currents fast to avoid damage and fires.
- MCCBs have thermal and magnetic parts inside. These parts find overloads and short circuits. This makes MCCBs reliable and easy to adjust for many uses.
- Picking the right MCCB means matching its current rating to your system. You also need to check interrupting capacity and trip settings for your needs.
- You should inspect, clean, and test MCCBs often. This helps them work well and lets you find problems early.
- If you see burn marks, cracks, or trips happen a lot, replace the breaker. You can also call an expert to stay safe.
Molded Case Circuit Breaker Basics
What Is an MCCB
A molded case circuit breaker helps protect electrical circuits from harm. It stops electricity if there is too much current or a short circuit. The breaker has a hard plastic shell. This shell keeps the inside parts safe from dust and water. The shell also makes the breaker strong and tough.
Circuit breakers were first thought of in the late 1800s. The modern molded case circuit breaker became common after 1924, when the re-settable fuse was invented. Today, MCCBs use both thermal and magnetic trip parts. The thermal part has a bimetallic strip. This strip bends when it gets hot from too much current. The magnetic part has a coil. The coil reacts very fast to high currents, like those from a short circuit. MCCBs can work with many different currents, up to 2500 amps. They are used in many types of electrical systems.
Note: MCCBs can also be used as manual switches. This lets people turn circuits on or off safely.
Main Functions
MCCBs do many important things in electrical systems:
- They keep people, equipment, and property safe from problems like overloads and short circuits.
- The molded case helps protect the device from dust and water. This makes it last longer.
- You can adjust the trip settings to fit each circuit’s needs.
- MCCBs can handle high currents and stop dangerous fault currents safely.
- Built-in features like thermal-magnetic or electronic trip units make them safer and more reliable.
- Their small size helps them fit into tight spaces.
- MCCBs can be used in homes, businesses, and factories.
Some MCCBs have smart features. These can watch voltage and current in real time. They can give early warnings if there is a problem. They can also share data for maintenance. Advanced models use sensors and analytics. These help predict when maintenance is needed. This keeps electrical systems working well and safely.
How MCCBs Work
Internal Parts
A molded case circuit breaker has many parts that work together. The main enclosure is made from strong plastic. This plastic keeps dust and water out. It also stops people from touching the inside by accident. Inside, there are terminals for connecting wires. The switch lets you open or close the circuit. The trip unit has sensors for heat and magnetism. These sensors find overloads and short circuits. The arc chamber holds contacts and arc runners. This chamber puts out electrical arcs fast. That keeps the breaker safe from harm.
- Enclosure: Built from strong plastic to keep things safe.
- Contacts: Some contacts stay still, others move to stop power.
- Bimetallic Strip: Bends when hot to sense too much current.
- Electromagnetic Coil: Finds short circuits and makes the breaker trip.
- Spring System: Helps open contacts fast when needed.
- Arc Extinguishing System: Breaks and cools the arc to stop damage.
- Auxiliary Components: Lights and alarms show if the breaker is working.
All these parts make the breaker strong and dependable. Studies show these parts last through many uses. They do not need much fixing or care.
Thermal Trip Mechanism
The thermal trip mechanism stops overloads. It uses a bimetallic strip made from two metals. These metals get bigger at different rates when hot. If too much current flows, the strip heats up and bends. This bend pushes a lever to trip the breaker. Then the circuit opens. This takes about 60 seconds at 250% current. The delay lets the breaker ignore short high currents, like when a motor starts.
Tests have checked how well this part works. Scientists used sensors to see how fast the strip bends. They found that the strip’s shape changes how quick it trips. The thermal trip is good for stopping long overloads.
Note: The bimetallic strip only works with heat from overloads. It does not react to sudden short circuits.
Magnetic Trip Mechanism
The magnetic trip mechanism works for short circuits. It uses an electromagnetic coil called a solenoid. When a huge current flows, the coil makes a strong magnetic field. This field pulls a metal piece to trip the breaker. It acts almost right away. The magnetic trip can work in less than one cycle. It often trips at 400% of the rated current. This quick action keeps wires and equipment safe.
Time-current curves show how both trip parts work together. The magnetic trip acts fast for short circuits. The thermal trip works for slower overloads. Tests prove both parts protect circuits well. The breaker uses both to keep systems safe.
Manual and Automatic Operation
A molded case circuit breaker can work by itself or by hand. In automatic mode, it trips on its own if there is a problem. The trip unit finds the fault and opens the contacts. This stops the current right away. No person needs to help.
Manual operation lets a person use a handle or switch. People use this to reset the breaker or turn off power for repairs. Experts say MCCBs are not for switching on and off all the time. They can handle about 10,000 uses, which is enough for normal needs. Contactors are better for lots of switching, but they do not protect like a molded case circuit breaker.
Tip: Only use the manual switch for resetting or repairs, not for turning power on and off often.
The molded case also helps protect the inside parts. During a fault, arcs can get very hot. The molded case and arc chutes cool and split the arc. This stops heat damage and keeps contacts from wearing out. Some systems, like Arc Vault, can stop arcs in less than eight milliseconds. This shows how well the molded case protects the breaker.
Molded Case Circuit Breaker Ratings
Current and Voltage
Each molded case circuit breaker has its own current and voltage ratings. These ratings tell how much current it can handle and what voltage it is safe with. The rated current is the most current it can take before tripping. The rated voltage is the highest voltage it can control during normal use.
Industry rules help decide these ratings. Some main rules are:
- IEC 60947-2: This rule is for industrial breakers. It covers voltages up to 1000 V AC and currents from 0.5 to 6300 A.
- IEC 60898-1: This rule is for home breakers. It covers currents up to 125 A and short-circuit up to 25 kA.
- ANSI/NEMA AB 3: This rule sets voltage up to 1,000 V AC and 1,200 V DC for these breakers.
Rated current means the breaker can carry this current all the time. Rated working voltage is the voltage for making and breaking power. Rated insulation voltage is the safety limit for design.
Interrupting Capacity
Interrupting capacity tells the biggest fault current a breaker can stop safely. This rating is very important for safety. If a fault happens, the breaker must open the circuit fast and safely. MCCBs use magnetic trip parts to act in milliseconds during short circuits. They also use ground fault protection to keep people and equipment safe.
Certifications like UL 489 and CSA show that breakers meet tough safety rules. These rules make sure breakers pass tests with high fault currents. For example, UL 508 tests if the breaker can keep damage inside its case. This helps stop fires and keeps the system safe.
- MCCBs can stop big fault currents.
- They protect against overloads and short circuits.
- Current limiting types lower stress on the system.
Trip Settings
Trip settings let people change how the breaker reacts to problems. These settings control when the breaker trips for overloads or short circuits. Adjustable trip settings help match the breaker to each circuit’s needs. This makes protection better and more reliable.
Here is a simple table with common trip settings:
| Setting Type | Purpose |
|---|---|
| Long-time delay | Handles slow overloads |
| Short-time delay | Responds to short circuits |
| Instantaneous | Trips right away for big faults |
Good trip settings help stop false trips and keep equipment safe. People should always follow the maker’s rules and industry standards when setting these values.
Types and Selection
MCCB Types
There are different circuit breakers for different jobs. The table below helps you see how each type is special.
| Breaker Type | Typical Application Environment | Voltage Range | Current Rating Range | Interrupting Capacity (Amps) | Adjustability / Settings | Key Functional Attributes |
|---|---|---|---|---|---|---|
| Miniature Circuit Breaker (MCB) | Residential, Institutional | Up to 100 A | Up to 100 A | Up to 10,000 A | Fixed trip curve (non-adjustable) | Simple protection, quick trip on faults, limited to lower current and interrupting capacity |
| Molded Case Circuit Breaker (MCCB) | Commercial, Light Industrial | Up to 1,000 V | Over 2,000 A | Up to 200,000 A | Adjustable settings (long-delay, short-delay, ground fault) | Versatile, adjustable protection, suitable for diverse applications, higher interrupting capacity |
| Insulated Case Breaker | Larger Industrial, Healthcare | Higher than MCCBs | Higher than MCCBs | High interrupting capacity | Extensive adjustment options | Greater flexibility and coordination for complex power systems |
| Power Circuit Breaker | Low/Medium Voltage Switchgear | Up to 38 kV | Up to 6,000 A | Up to 200,000 A | Requires trip units or protective relays | Advanced protection modes, maintenance intensive |
This table shows that molded case circuit breakers can be adjusted more than miniature circuit breakers. They also stop bigger currents. Molded case circuit breakers work well in places like stores and small factories.
Application Scenarios
Where you use a breaker matters a lot. Some places have more shocks or bumps. These can make parts break sooner. One study tested how long a molded case circuit breaker would last. At first, it worked for about 6,520 times with 72.44% reliability. After making the latch link stronger, it lasted at least 10,000 times with 95.06% reliability. This means the place and how often you use the breaker help decide which one is best.
Choosing the Right MCCB
Picking the right molded case circuit breaker means thinking about a few things:
- Current rating: Pick a breaker that matches the biggest current, from 30A to 6,000A.
- Interrupting capacity: Choose a breaker that can stop more than the largest short circuit.
- Trip characteristics: Use settings like instant trip, short delay, and long delay for better safety.
- MCCB types: There are economy, standard, high-performance, and current limiting types for different jobs.
- Environmental factors: Think about heat, wetness, and shaking.
- Certifications and standards: Make sure the breaker follows safety rules for where you use it.
Tip: Always look at what your system needs and follow safety rules when picking a breaker.
Maintenance and Safety
Inspection Tips

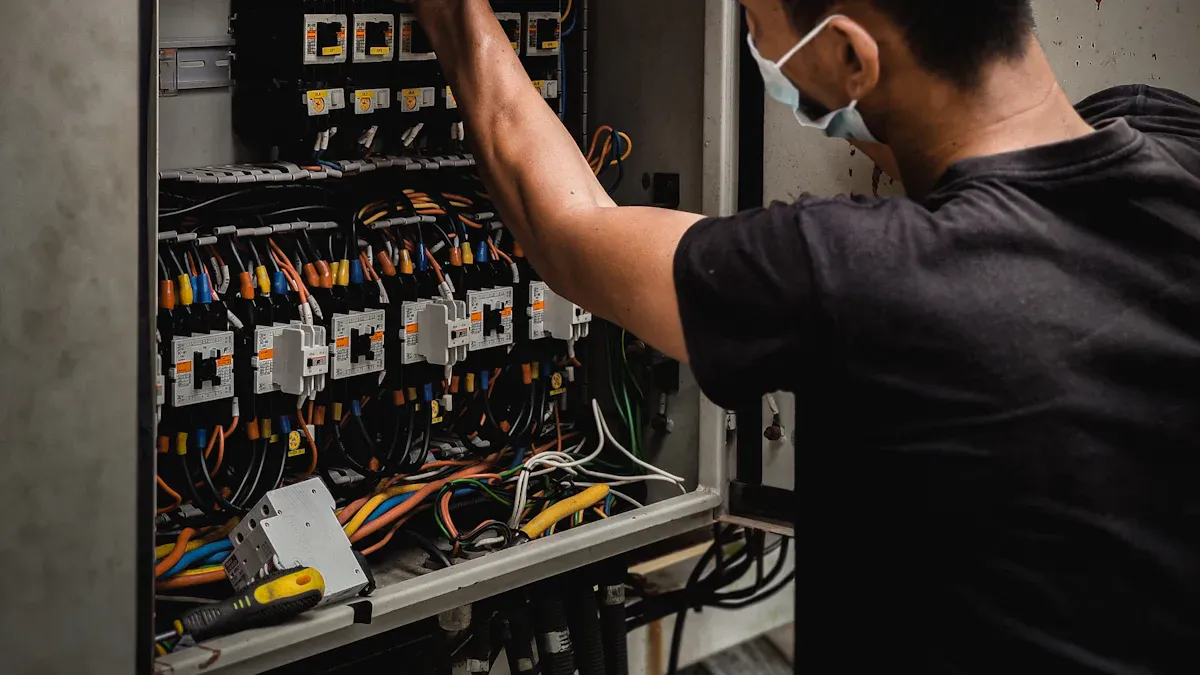

Checking a molded case circuit breaker often keeps it safe and working well. Experts say you should do these things:
- Look at the outside for cracks or damage. Cracks can show live parts.
- Check for burn marks or color changes from too much heat.
- Make sure the ON and OFF signs work right.
- Tighten screws and wires so they do not get loose.
- Look for rust on the ends of wires and connections.
- Check if the contacts have pits, wear, or color changes.
- Test the trip part by making a fake problem.
- Move the handles and switches to see if they work smoothly.
- Write down what you find and what you fix each time.
Tip: Always use the maker’s rules and safety codes like NEMA AB 4 and NFPA 70B when you check breakers.
Cleaning and Testing
Cleaning and testing help stop problems before they start. Use a dry, soft cloth or a vacuum to clean dust off the breaker. Do not use water or wet cleaners to keep the insulation safe. Put oil on moving parts if the maker says so, but never put oil on the trip part. Use a megohmmeter to test insulation; if it reads less than 1 megohm, it may be dirty. Do a millivolt drop test to find loose or dirty contacts. Overload tests use three times the normal current to see if the breaker opens by itself. Turn the breaker on and off a few times to keep it working well.
- Move the breaker by hand once a year to stop dust.
- Test the trip part every 3 to 5 years to make sure it works.
- After a short circuit, always check and test before using it again.
Signs of Failure
Some signs show the breaker is not working right:
- The breaker does not turn off when there is too much current.
- You see burn marks or melted parts near the wires.
- You hear buzzing or see lights flicker near the breaker.
- There are cracks or broken seals on the outside.
- The trip current changes with heat, so it does not protect well.
If you see any of these signs, change the breaker or ask an expert to check it. Good care and finding problems early help stop damage and keep things safe.
A molded case circuit breaker keeps electrical systems safe. It stops dangerous currents very fast. Studies say picking the right breaker is important. Taking care of it helps stop fires and damage. Checking the breaker often makes it last longer. Following safety rules is also important. For big or tricky projects, experts can help. Companies like Siemens or ABB give special help and support. Knowing this helps people make safer electrical systems. It also makes them work better for a long time.
FAQ
What does a molded case circuit breaker protect against?
A molded case circuit breaker keeps electrical systems safe from too much current and short circuits. It stops bad currents before they start fires or break equipment.
What makes an MCCB different from a fuse?
You can reset an MCCB after it trips. A fuse must be changed if it blows. MCCBs let you change settings and can handle bigger currents.
What should someone do if an MCCB keeps tripping?
First, check if too many things are plugged in or if something is broken. If it trips again, an electrician should look for hidden problems.
What is the lifespan of a molded case circuit breaker?
Most MCCBs work for thousands of uses. Checking and caring for them helps them last for many years.
What are the signs that an MCCB needs replacement?
- Burn marks or melted parts
- Cracks in the case
- The breaker does not trip when needed
- Trips too often for no reason
- Strange noises or smells
