A qo circuit breaker serves as a safety device that quickly stops the flow of electricity when a problem occurs. Square D, a brand of Schneider Electric, makes this product. The name “QO” stands for “Qwik-Open,” which means the breaker reacts fast to protect people and property. People need to understand its features, benefits, and safety functions before choosing one for a home or business.
Key Takeaways
- QO circuit breakers quickly stop electricity flow to protect people and property from electrical hazards like fires and shocks.
- The Visi-Trip indicator shows a red window when the breaker trips, helping users find problems fast and improve safety.
- QO breakers use a plug-on design for easy installation and a thermal-magnetic system to protect against overloads and short circuits.
- These breakers only fit Square D QO panels, so always check panel compatibility before buying or installing.
- Regular testing and safe installation practices keep QO breakers reliable and ensure electrical systems stay protected.
What Is a QO Circuit Breaker
Definition

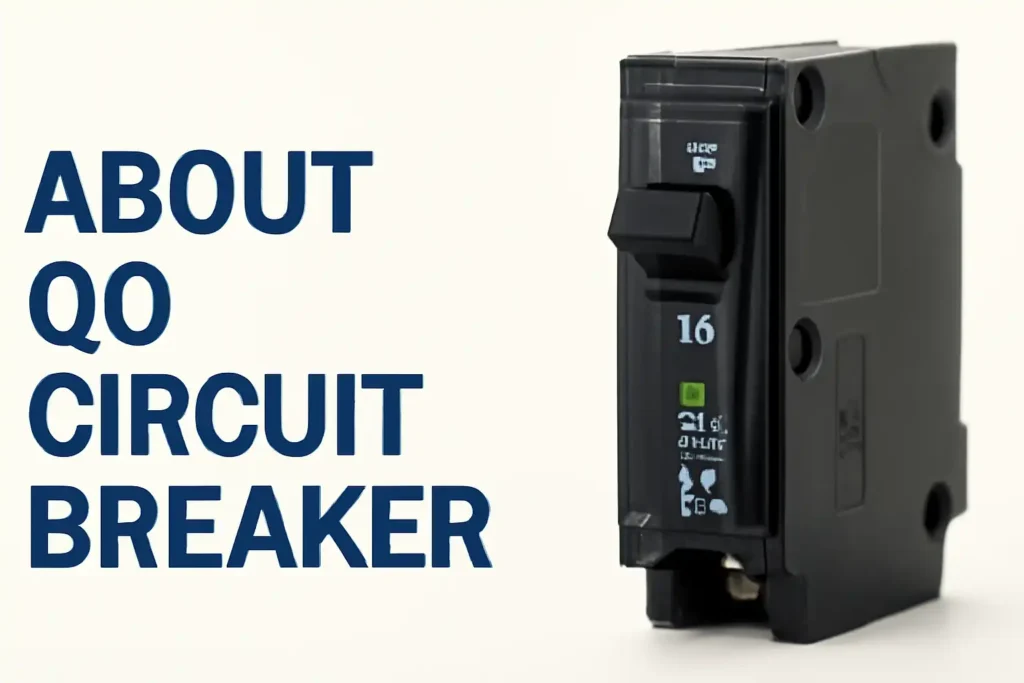

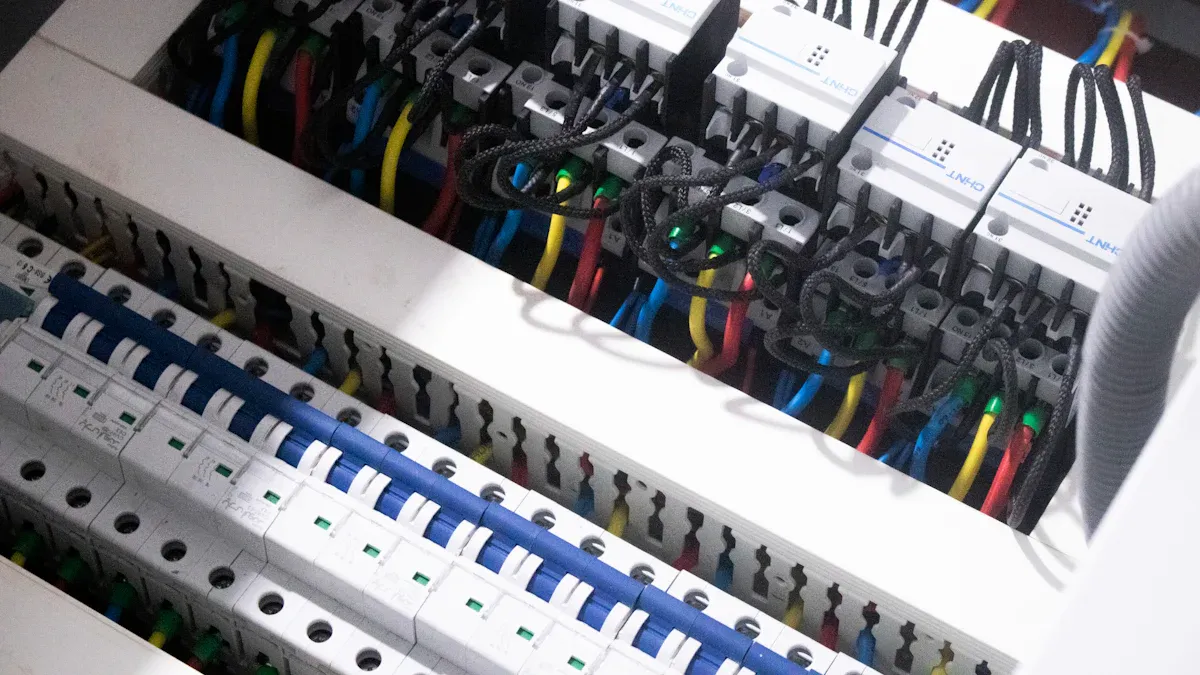

A qo circuit breaker is a type of miniature circuit breaker made by Square D, a brand owned by Schneider Electric. The “QO” in its name stands for “Qwik-Open.” This means the breaker reacts very quickly when it detects a problem in the electrical circuit. Schneider Electric’s technical documents describe the qo circuit breaker as part of the Square D QO system. These breakers come in plug-on or bolt-on styles and fit into QO distribution panels. They have been in use since 1955 and are known for their fast installation, reliability, and quality.
The product page for a typical qo circuit breaker, such as the QO215CAFI, lists important details. For example, it may have a 15-amp rating, two poles, a voltage rating of 120/240 volts AC, and a 10,000-amp interrupting capacity. These breakers also offer features like plug-in installation and arc fault protection. This information shows that a qo circuit breaker is designed to protect electrical systems in homes and businesses.
Note: QO circuit breakers are different from other breakers because they use a special quick-open mechanism. This helps them trip faster than many standard breakers.
Purpose
The main purpose of a qo circuit breaker is to protect people and property from electrical hazards. It does this by stopping the flow of electricity when it senses too much current or a fault. This quick action helps prevent fires, equipment damage, and electric shocks.

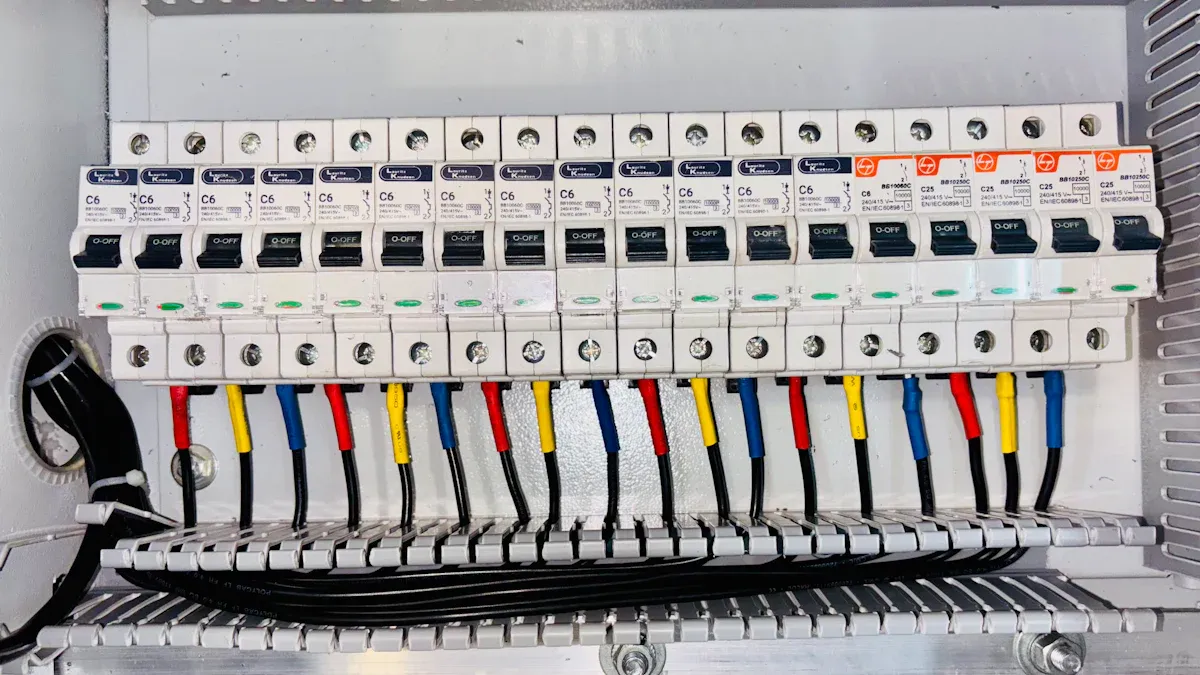

QO circuit breakers are used in both residential and commercial electrical panels. They fit into QO load centers and distribution panels, making them a common choice for many electricians and building owners. Their fast trip time is important because it reduces the risk of damage during electrical faults.
Some key features that support the fast trip time and reliability of qo circuit breakers include:
- Over center, trip-free toggle mechanism for quick make and break action
- Positive handle indication to show if the breaker is on or off
- Visual trip indication to confirm when the breaker has tripped
- UL Listed and CSA Certified for safety and performance
- Plug-in mounting for easy installation
The table below shows some typical specifications for a qo circuit breaker:
| Feature | Description |
|---|---|
| Product Type | Miniature circuit breaker |
| Current Rating | 15–40 A |
| Interrupt Rating | 10 kA at 120/240 V AC |
| Certifications | UL Listed, CSA Certified |
| Key Feature | Quick make/break toggle mechanism |
| Visual Trip Indication | Yes |
| Mounting Type | Plug-in |
QO circuit breakers follow strict industry standards, such as UL 489, to ensure they trip reliably under overload or fault conditions. Their design and certifications make them a trusted choice for protecting electrical systems.
Features
Visi-Trip Indicator
The Visi-Trip indicator is a unique feature found on every qo circuit breaker. This small, red window appears on the breaker handle. When the breaker trips, the red indicator pops up. This visual cue helps people quickly identify which breaker has opened due to a fault. Electricians and homeowners can save time during troubleshooting because they do not need to test each breaker one by one.
The Visi-Trip indicator improves safety and convenience. It reduces the risk of missing a tripped breaker, which could leave a circuit unprotected or without power.
Plug-On Design
QO circuit breakers use a plug-on design. This means the breaker snaps directly onto the bus bar inside the panel. The plug-on system allows for fast and secure installation. Installers do not need extra tools or hardware to mount the breaker. The design also ensures a solid electrical connection, which helps prevent overheating and electrical faults.
Most QO breakers use a thermal-magnetic trip mechanism. This system combines two types of protection:
- Thermal protection: Responds to long-term overloads by using a bimetallic strip that bends and trips the breaker.
- Magnetic protection: Reacts instantly to short circuits by using an electromagnet to open the breaker.
This dual protection helps keep electrical systems safe from both slow and sudden problems.
Types and Configurations
QO circuit breakers come in several types and configurations. People can choose from single-pole, double-pole, and triple-pole models. Each type fits different needs:
- Single-pole: Protects one circuit, usually for standard outlets and lights.
- Double-pole: Protects two circuits or 240-volt appliances, such as dryers or ovens.
- Triple-pole: Used in some commercial settings for three-phase power.
The table below shows common configurations:
| Type | Poles | Typical Use |
|---|---|---|
| Single-pole | 1 | Lighting, outlets |
| Double-pole | 2 | Large appliances |
| Triple-pole | 3 | Commercial, three-phase |
QO circuit breakers work only with QO load centers. They do not fit in Homeline panels, which use a different design. QO breakers have a thinner profile and a distinctive square shape. Homeline breakers are wider and do not have the Visi-Trip indicator. People should always check panel compatibility before buying or installing a breaker.
Note: Using the correct breaker type ensures safe operation and keeps the electrical system up to code.
How They Work
Overcurrent Protection
A QO circuit breaker protects electrical circuits from too much current. When a device or wire draws more electricity than it should, the breaker senses this problem. Too much current can cause wires to get hot. Hot wires may start a fire or damage equipment. The breaker uses a thermal-magnetic system to detect these dangers.
- Thermal protection uses a bimetallic strip. This strip bends when it gets hot from too much current. When it bends far enough, it trips the breaker and stops the flow of electricity.
- Magnetic protection works for sudden surges, like a short circuit. An electromagnet inside the breaker pulls a lever to trip the breaker instantly.
Electricians trust this two-part system because it reacts to both slow and fast problems. The breaker helps keep homes and businesses safe from electrical hazards.
Quick-Open Mechanism
The quick-open feature sets the QO circuit breaker apart from many other breakers. “Qwik-Open” means the breaker trips faster than standard models. This speed matters during a fault. Fast tripping reduces the time that wires and devices face dangerous conditions.
The mechanism works like this:
- The breaker senses a problem, such as a short circuit.
- The internal parts move quickly to open the circuit.
- The Visi-Trip indicator pops up to show the breaker has tripped.
A table below shows the difference in trip speed:
| Breaker Type | Typical Trip Time |
|---|---|
| Standard Breaker | 1/60 second |
| QO Circuit Breaker | 1/120 second |
Faster trip times mean less risk of fire or equipment damage. The quick-open design helps protect people and property every day.
Benefits
Reliability
A QO circuit breaker offers strong reliability for electrical systems. Square D designed these breakers to last for many years. The quick-open mechanism helps prevent damage by reacting fast to faults. Many electricians trust these breakers because they trip when needed and reset easily. The materials used in each breaker resist wear and corrosion. This means the breaker can work well in many environments, from homes to busy commercial spaces.
Tip: Regular testing helps keep the breaker working at its best.
Safety
Safety stands as a top benefit of the QO circuit breaker. The Visi-Trip indicator lets people see which breaker has tripped. This feature helps users find problems quickly and avoid unsafe conditions. The breaker’s thermal-magnetic design protects against both overloads and short circuits. Each breaker meets strict safety standards, such as UL 489. These standards ensure the breaker will trip before wires get too hot or equipment gets damaged.
A table below shows key safety features:
| Safety Feature | Benefit |
|---|---|
| Visi-Trip Indicator | Fast fault identification |
| Quick-Open Mechanism | Reduces fire risk |
| UL/CSA Certification | Meets industry safety codes |
User Experience
The user experience with a QO circuit breaker is simple and clear. The plug-on design allows for fast installation. Homeowners and electricians do not need special tools to add or replace a breaker. The handle gives a clear on/off position, so users know if a circuit is live. The Visi-Trip indicator adds another layer of convenience by showing when a breaker has tripped. These features help users feel confident when working with their electrical panel.
Note: Always turn off the main power before working inside any panel.
Identifying a QO Circuit Breaker
Visual Cues
People can spot a QO circuit breaker by looking for a few clear signs. The most noticeable feature is the Visi-Trip indicator. This small red window appears on the breaker handle. When the breaker trips, the red indicator pops up. This helps users find the tripped breaker quickly. The shape of the breaker also gives clues. QO breakers have a slim, square profile. The handle moves in a straight line, and the body often looks more compact than other types. These visual cues help users tell a QO breaker apart from others in the panel.
Labeling
Each QO circuit breaker has important information printed on its body. The label usually shows the brand name “Square D” and the model series, often starting with “QO.” The label also lists the amperage rating, voltage, and interrupting capacity. Some breakers include a diagram or a QR code for more details. Users should check for the “QO” marking to confirm the breaker type. The label helps electricians and homeowners make sure they have the right breaker for their needs.
Tip: Always read the label before installing or replacing a breaker. This step helps prevent mistakes and keeps the electrical system safe.
Compatibility
A QO circuit breaker only fits in certain panels. It works with QO load centers and distribution panels made by Square D. Users should not try to install a QO breaker in a Homeline or other brand panel. The bus bar design and mounting system are different. To check compatibility, users can look for the panel label inside the door. The label lists the types of breakers that fit. If the label says “QO,” then a QO breaker will work. Using the correct breaker keeps the system safe and up to code.
Note: If unsure about compatibility, users should ask a licensed electrician or check the manufacturer’s guide.
Installation and Safety
Installation Tips
Proper installation of a qo circuit breaker helps keep electrical systems safe and reliable. Installers should always follow the manufacturer’s instructions and check the panel label for compatibility. Square D provides detailed manuals that list the correct conductor sizes and breaker ratings. Each breaker has dual lug terminals, which allow two conductors if needed. Installers must avoid double-tapping conductors on breakers not designed for it. This prevents loose connections and overheating.
A typical installation checklist includes:
- Verifying the breaker matches the panel type and amperage
- Checking for secure and tight connections at each terminal
- Using the correct torque when tightening screws
- Confirming that no wires are double-lugged unless the breaker allows it
- Reviewing wiring diagrams and NEC code references
Tip: Always use a non-contact voltage detector before touching any wires.
Maintenance
Regular maintenance ensures a qo circuit breaker continues to protect the electrical system. Electricians recommend periodic testing of GFCI and AFCI breakers by pressing the test button. This confirms the breaker trips as expected. Inspection checklists suggest looking for signs of wear, corrosion, or overheating. Loose or double-lugged conductors can cause problems, so checking terminal tightness is important. Maintenance guides also advise cleaning dust from the panel and making sure labels remain readable.
A maintenance table may look like this:
| Task | Frequency |
|---|---|
| Test GFCI/AFCI breakers | Monthly |
| Inspect for loose wires | Every 6 months |
| Check labels and markings | Annually |
| Clean panel interior | Annually |
Safety Practices
Safety practices protect both the installer and the electrical system. The National Electrical Code and UL 67 standards set rules for safe installation. Personal safety measures include wearing protective gloves and eye protection. Installers should turn off the main power before working inside the panel. Using insulated tools and following the manufacturer’s safety checklist reduces the risk of shock or injury. Never install a breaker in a panel that does not match its type. Always confirm compliance with NEC and manufacturer guidelines.
Note: Safe handling and regular checks help prevent micro-arcing, nuisance tripping, and other hazards.
A qo circuit breaker offers fast protection, clear indicators, and reliable performance for homes and businesses. Key features like the Visi-Trip indicator and plug-on design help users identify and install the right breaker. Users should always check panel compatibility and follow safety practices.
Tip: For installation or troubleshooting, they should contact a licensed electrician or visit the manufacturer’s website for more information.
ONESTOP is also a professional circuit breaker manufacturer, providing high-quality circuit breaker products that can replace your QO circuit breaker
FAQ
What does the Visi-Trip indicator show?
The Visi-Trip indicator shows when a QO circuit breaker has tripped. A red window pops up on the breaker handle. This helps users quickly find which breaker needs attention.
What panels work with QO circuit breakers?
QO circuit breakers fit only in Square D QO load centers and distribution panels. They do not work in Homeline or other brands. Always check the panel label for compatibility before installation.
What makes QO circuit breakers different from Homeline breakers?
QO circuit breakers have a quick-open mechanism and a Visi-Trip indicator. Homeline breakers do not have these features. QO breakers also have a slimmer, square shape.
What should users do if a QO breaker trips often?
Users should check for overloaded circuits or faulty devices. If the breaker keeps tripping, they should contact a licensed electrician. Frequent tripping may signal a serious electrical problem.
