TPN means Triple Pole and Neutral in electrical engineering. The TPN Electrical Full Name shows a device that controls three live wires and one neutral wire. In a TPN system, each phase has its own pole. The neutral wire gives a way for current to return. TPN helps make power safer by letting engineers turn off all three phases and the neutral. Many electrical workers use tpn for safer circuit control. TPN makes big systems work better. TPN helps keep loads even and protects against faults. Every engineer should learn how tpn works and why tpn is important.
Key Takeaways
- TPN means Triple Pole and Neutral. It controls three live wires and one neutral wire in electrical systems. TPN circuit breakers turn off all three phases and the neutral wire. This helps protect against too much current and faults. TPN breakers give neutral isolation. This keeps power sources apart and makes repairs safer. TPN breakers are not the same as SPN and 4P breakers. They switch the neutral but do not protect it. This makes them good for many businesses and factories. TPN boards are used a lot in factories, offices, and apartments. They help balance loads, lower risks, and follow safety rules.
TPN Electrical Full Name
TPN Full Form in Electrical
The tpn electrical full name means Triple Pole and Neutral. In electrical engineering, the tpn full form in electrical shows a device that controls three live wires and one neutral wire. The triple poles each control one phase. The neutral pole connects to the return path for current. This setup lets the board handle three-phase and single-phase loads. The tpn electrical full name helps engineers pick the right circuit breaker or switch for a power system.
Note: The triple pole design makes sure each phase gets equal care. The neutral pole keeps the system safe and balanced.
What TPN Means
TPN is a device that can control three phases and a neutral in a power board. The neutral pole in tpn devices is very important in electrical systems:
- The neutral pole manages the neutral wire. It balances the load between the three phases and gives a return path for current.
- In most tpn breakers, the neutral pole does not turn off. This keeps the current return steady and loads balanced.
- The neutral pole makes things safer by keeping faulty phases apart but leaving the neutral on. This lowers fire risks.
- TPN breakers let you power both three-phase and single-phase devices from one board.
- TPN breakers are made for three-phase, four-wire systems (L1, L2, L3, and Neutral). This gives stable power and protects against overloads and short circuits.
- Unlike 4-pole breakers that turn off all phases and neutral, tpn breakers keep the neutral pole on in most uses.
The tpn electrical full name is important for electrical workers for many reasons:
- It helps them choose the right circuit breaker for a board.
- It makes sure they follow electrical codes in different countries. Many codes need neutral isolation in systems with more than one power source, like utility and generator. This stops neutral mixing and electric shock dangers.
- The tpn electrical full name shows that the device can work with both three-phase and single-phase power.
- It helps workers pick between tpn, 3-pole, and 4-pole breakers based on the system and safety needs.
Knowing the tpn electrical full name helps engineers make safer and better power systems. The triple pole and neutral setup keeps loads balanced, lowers risks, and meets code rules for new buildings.

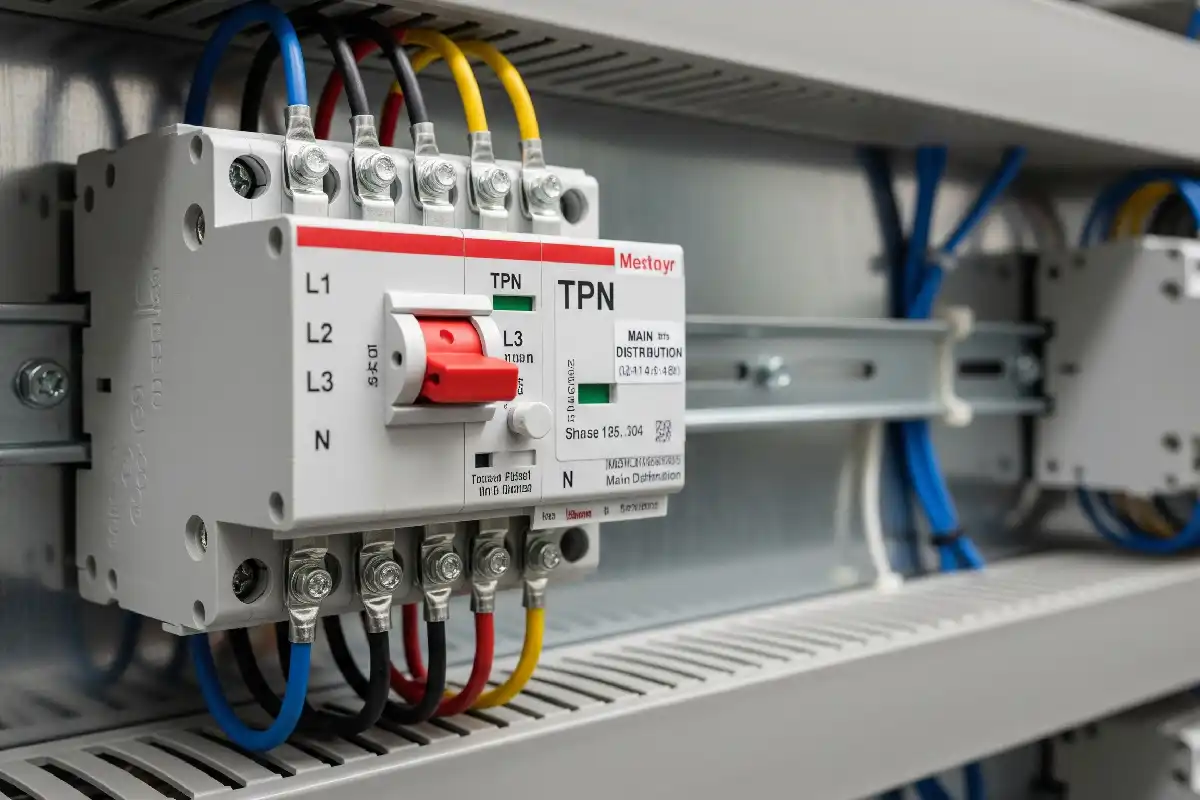

TPN Circuit Breakers
TPN Breakers in Three-Phase Systems
TPN breakers are important in three-phase systems. They control three live wires and one neutral wire. Many factories and big buildings use TPN breakers. These breakers help keep circuits safe. Each pole connects to a phase. The neutral pole lets current return. This setup lets the breaker turn off all phases and the neutral.
There are different circuit breakers for three-phase systems. TP, TPN, and 4P are the main types. The table below shows how they are different:
| Circuit Breaker Type | Poles | Neutral Handling | Protection on Neutral | Typical Application in Three-Phase Systems |
|---|---|---|---|---|
| TP (Triple Pole) | 3 | Neutral not included | No protection on neutral | Used in ordinary three-phase supply without neutral switching |
| TPN (Triple Pole + Neutral) | 4 (3 phases + neutral) | Neutral switched but not protected | Neutral is switched but no protective element | Used where dual sources feed the panel, such as utility and generator, and neutral isolation is needed |
| 4P (Four Pole) | 4 | Neutral switched and protected | Neutral pole has protection like phase poles | Used when high neutral currents or ground fault protection is required; enhances system stability |
TPN breakers are picked for systems with more than one power source. They stop neutral currents from mixing. Mixing can be dangerous. TPN breakers let engineers turn off the neutral and phases together. This helps with repairs and keeps things safe.
TPN breakers come in MCB and MCCB types. MCBs are for small currents and tight spaces. MCCBs work with bigger currents and can be set to trip at different levels. Both types keep circuits safe in three-phase systems.
Safety Features of TPN Circuit Breakers
TPN circuit breakers have special safety features. One big feature is neutral isolation. TPN breakers switch the neutral wire with the three phases. This stops neutral currents from mixing. If a system uses both utility and generator power, neutral isolation keeps people and equipment safe.
Tip: Neutral isolation is very important when there are many power sources. It helps stop electric shock and damage during problems.
TPN breakers can work with residual current devices. These devices find leaks in current and trip the breaker. This stops electric shock. Sometimes, the neutral pole does not switch unless there is RCD protection. This meets rules like British Standard 7671. This rule treats the neutral as a wire that carries current.
TPN breakers are made to meet tough safety rules. The table below lists some common standards:
| Standard | Purpose |
|---|---|
| UL 489 | Certification for molded-case circuit breakers ensuring safety and performance |
| NFPA 70 (NEC) | Electrical installation codes for safe operation |
| OSHA 1910 | Workplace safety regulations, including labeling and lockout/tagout |
| ANSI Z535 | Standards for safety labeling clarity and durability |
Manufacturers test TPN breakers with breaker injection testing. This test checks if the breaker trips at the right current and time. Testing and maintenance keep breakers safe and working well.
TPN breakers come in many current ratings. The table below shows some ratings used in big buildings and factories:
| Current Rating (Amp) | Number of Poles | Rated Voltage (V AC) |
|---|---|---|
| 6 | Three Pole + Neutral | 240-410 |
| 10 | Three Pole + Neutral | 240-410 |
| 16 | Three Pole + Neutral | 240-410 |
| 20 | Three Pole + Neutral | 240-410 |
| 25 | Three Pole + Neutral | 240-410 |
| 32 | Three Pole + Neutral | 240-410 |
| 40 | Three Pole + Neutral | 240-410 |
| 63 | Three Pole + Neutral | 240-410 |
TPN breakers protect many kinds of circuits. They are used for lights, motors, generators, and power units. Their small size and many ratings fit lots of systems. TPN breakers stop overloads and short circuits in factories and big buildings.
TPN vs SPN vs 4P
SPN Explained
SPN means Single Pole and Neutral. This breaker is for single phase with neutral systems. It turns off both the phase and neutral wires. But it only protects the phase wire from problems. SPN breakers help keep circuits safe. Many houses and small offices use SPN breakers. When you turn off the circuit, both wires disconnect. This lowers the chance of electric shock. The neutral wire does not get protection from faults. SPN breakers just switch it off with the phase.
SPN breakers work best in single phase with neutral systems when extra safety is needed.
4P Explained
4P stands for Four Pole. This breaker is used in three phase with neutral systems. It switches and protects all three phases and the neutral wire. 4P breakers give full protection to every wire. They are needed where there are high neutral currents or uneven loads. Hospitals, data centers, and factories often use 4P breakers. These breakers help keep the system safe and steady. When you turn off the breaker, all wires disconnect and get protection. This stops damage and keeps important equipment safe.
4P breakers are best for three phase with neutral systems when neutral protection is very important.
Key Differences
TPN, SPN, and 4P breakers have different uses in electrical systems. TPN means Triple Pole and Neutral. It is for three phase with neutral systems. TPN breakers switch all three phases and the neutral. But they only protect the phases. SPN breakers are for single phase with neutral systems. They switch both wires but only protect the phase. 4P breakers switch and protect all wires in three phase with neutral systems.
The table below shows the main differences:
| Breaker Type | Number of Poles | Neutral Switching | Neutral Protection | Typical Application |
|---|---|---|---|---|
| SPN | 2 (1 phase + neutral) | Yes | No | Single phase with neutral in homes, offices |
| TPN | 4 (3 phases + neutral) | Yes | No | Three phase with neutral in panels needing neutral isolation |
| 4P | 4 (3 phases + neutral) | Yes | Yes | Three phase with neutral in critical systems needing full protection |
TPN breakers are good when engineers need to turn off the neutral but do not need to protect it. SPN breakers are best for single phase with neutral circuits for basic safety. 4P breakers protect every wire in three phase with neutral systems. They are best for places that need extra safety or have sensitive equipment.
TPN Applications
Where TPN Is Used
TPN distribution boards are found in many places. Commercial buildings use them for safe power. Industrial plants need them for big machines. Apartments and offices also use TPN boards. These boards help control lighting, HVAC, and heavy equipment. In factories, TPN boards keep systems balanced. Offices and apartments use TPN boards for single-phase and three-phase circuits. TPN boards help save energy and lower risks from electrical faults.
Common places for TPN boards are:
- Factories and manufacturing plants
- Shopping malls and retail centers
- High-rise apartments
- Office complexes
- Hospitals and data centers
TPN boards are easy to install and fix. Electricians pick TPN boards for new jobs. They give safe power and make repairs simple. TPN boards let workers control many circuits safely.
Why Choose TPN
Professionals pick TPN boards for many reasons. These boards keep the neutral wire safe during repairs. TPN boards switch the neutral with the three phases. This lowers the chance of electric shock. Some mcb types, like RCCB and MCCB, find problems fast. They shut off circuits quickly to stop fires and shocks.
TPN boards protect well and do not cost too much. They work in three-phase systems where full neutral isolation is not needed. Engineers like TPN boards for places with two power sources or mixed loads. TPN boards help balance loads and stop faults. They keep power on and follow safety rules. TPN boards fit most homes and businesses.
TPN distribution boards make electrical systems safer and more reliable. Their strong build and smart mcb features help in tough places. TPN boards are a great choice for new installs and repairs.
Knowing what TPN stands for helps workers pick the right safety tools for power systems. TPN circuit breakers keep systems safe and work well. New research shows TPN MCBs stop too much current and short circuits. They also help save energy and fit in new systems. TPN breakers are strong and have good features. Engineers should use TPN to make electrical setups safe and steady.
FAQ
What does TPN stand for in electrical engineering?
TPN means Triple Pole and Neutral. It is a device that controls three phase wires and one neutral wire in an electrical system.
What is the main function of a TPN circuit breaker?
A TPN circuit breaker protects three-phase systems. It switches all three phases and the neutral wire. This helps stop overloads and short circuits.
What types of systems use TPN boards?
Engineers use TPN boards in commercial buildings, factories, offices, and apartments. These boards work with both three-phase and single-phase loads.
What is the difference between TPN and 4P breakers?
TPN breakers switch three phases and the neutral. They only protect the phases. 4P breakers switch and protect all three phases and the neutral.
What safety feature does TPN provide?
TPN breakers give neutral isolation. This stops neutral currents from mixing between power sources. It makes maintenance safer.
