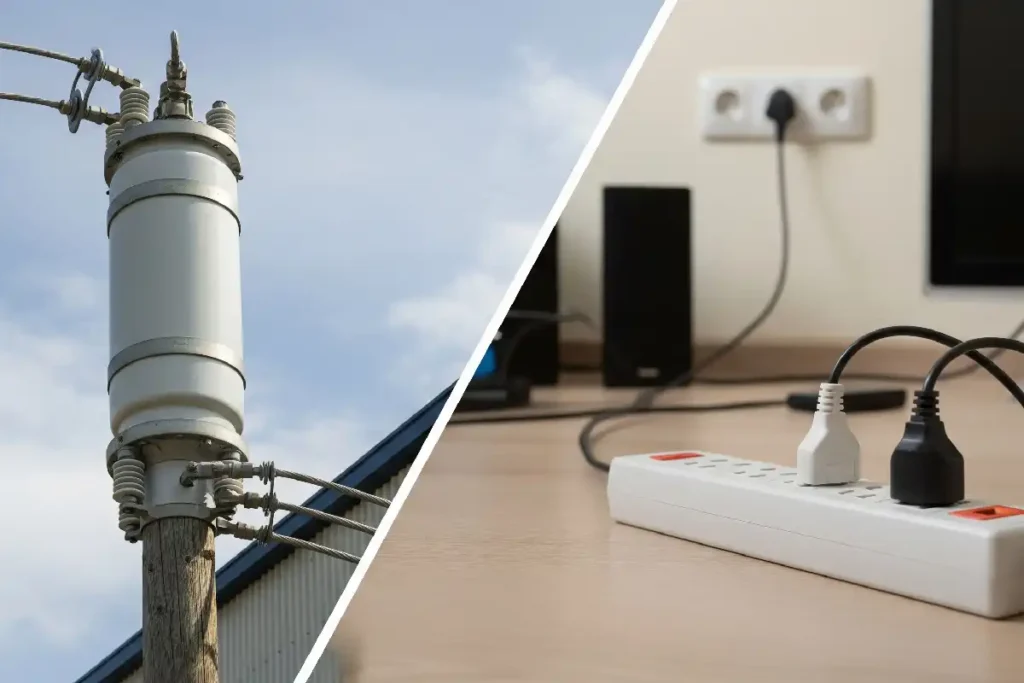

You will see that a surge protector and a surge arrester do different things to keep your electronics safe. A surge protector helps keep your home devices safe from sudden jumps in voltage. A surge arrester tries to stop big voltage surges before they get into your wires. Many people do not know how important the right surge protective device is until something breaks. In China, more than 100,000 homes lose appliances each year because they do not have good surge protection. After a thunderstorm in a southern city in 2022, almost 30% of people had to buy new electronics. Picking the right surge protective device can help you save money and keep your things safe from surges.
Key Takeaways
- Surge protectors keep home electronics safe from small voltage spikes by moving extra energy away.
- Surge arresters keep big electrical systems safe from large surges like lightning by sending high voltage into the ground.
- Use surge protectors for things like computers and TVs. Use surge arresters for power lines, factories, and substations.
- Using both surge protectors and surge arresters together gives the best protection from different surges.
- Check your surge protection devices often and replace them if they look worn out to keep your equipment safe.
Key Differences
Surge protectors and surge arresters do not work the same way. They have different jobs, uses, and ways to put them in place. The table below helps you see how they are not alike:
| Aspect | Surge Protector | Surge Arrester |
|---|---|---|
| Function | Keeps electronics safe from small voltage jumps by moving extra energy away. | Protects electrical systems from big surges, like lightning, by sending high voltage to the ground. |
| Voltage Level | Works with low voltages, good for homes and offices. | Handles higher voltages, used for power lines and large machines. |
| Application | Used for computers, TVs, and home appliances. | Used for substations, transformers, and power lines outside or in factories. |
| Installation | Easy to plug in or put near your devices or inside panels. | Put outside on poles, near main panels, or on top of buildings. |
| Protection Target | Protects small electronics and circuits. | Protects big electrical systems and main power lines. |
Function
A surge protector keeps your electronics safe from small voltage spikes. These spikes can happen when you turn on a big machine or when power changes a little. The surge protector acts quickly and moves the extra voltage away from your things. This stops damage to computers, TVs, and game consoles.
A surge arrester works in another way. It protects your whole electrical system from very big surges, like lightning strikes. When a huge surge comes, the surge arrester sends the high voltage straight to the ground. This keeps dangerous energy out of your wires and away from your equipment. Surge arresters are very important in power stations and factories.
Tip: Surge protectors are good for small surges inside your home. Surge arresters are better for big surges from outside, like lightning.
Application
You find surge protectors in homes, offices, and places with computers and electronics. You can plug them into wall outlets or put them in breaker panels. They protect one device or a few electronics from daily voltage spikes.
Surge arresters are used where big electrical systems need protection. You see them on power poles, at substations, and on top of buildings. They keep the whole electrical network safe from big surges. In factories, surge arresters protect machines and control systems from lightning and other strong energy events.
- Surge protectors work best for:
- Home appliances
- Office computers
- TVs and entertainment systems
- Surge arresters work best for:
- Power lines and substations
- Industrial machines
- Renewable energy farms
Installation
You can put in a surge protector by plugging it into a wall outlet or placing it near your devices. Some surge protectors go inside your main electrical panel. Most people can install these without special tools.
A surge arrester needs a different setup. You usually put a surge arrester outside, on a pole, or near the main power line. Electricians or trained workers do this job because it deals with high voltages and special grounding. Surge arresters become part of the building’s or power grid’s main protection system.
Note: Using both a surge protector and a surge arrester gives you the best protection for your home or business.
Surge Protector
How It Works
A surge protector keeps your electronics safe from voltage spikes. Groups like Underwriters Laboratories (UL) say a surge protector shields devices from short bursts of high voltage. These devices follow strict rules like UL 1449 and IEC 61643-11. This means you can trust them to work well.
When a power surge happens, the voltage goes up fast. Surge protectors use metal oxide varistors (MOVs). MOVs link the hot wire to the ground wire. If the voltage gets too high, the MOV lets extra electricity go to the ground. This stops your devices from getting too hot or breaking. Some surge protectors also use gas discharge arresters for more safety. You might see lights or fuses on your surge protector. These show if the device is working or needs to be changed.
Tip: Surge protectors help your electronics last longer by stopping small surges.
Typical Uses
You see surge protectors in homes, offices, and schools. People use them to protect computers, TVs, and game consoles. The most common types are plug-in surge protectors, whole-home surge protectors, and transient voltage surge suppressors (TVSS). The table below explains what each type does:
| Type of Surge Protector | Description | Typical Use Case | Features/Notes |
|---|---|---|---|
| Plug-In Surge Protectors | Plug into outlets; send extra voltage to ground | Home and office devices | May have USB, coaxial, or ethernet ports; easy to use |
| Whole-Home Surge Protectors | Put at main panel; protect all wires and appliances | Whole home or building | Higher joule rating; installed by electricians |
| TVSS | Hardwired at outlets; protect plugged-in devices | Space-saving, special places | May show surges by noise or flashing light |
You should check your surge protectors often. Most work for 5 to 8 years indoors. Whole-home surge protectors can last up to 15 years. Look for LED lights to see if your device still works. If the light is off, you need to get a new surge protector to keep your electronics safe.
Surge Arrester
How It Works
A surge arrester keeps your electrical system safe from big voltage spikes. You connect it next to your equipment. It acts like a guard for your power lines and machines. When the voltage is normal, the surge arrester has very high resistance. Only a tiny bit of current can pass through it.
If a high-voltage surge, like lightning, hits, the surge arrester changes fast. Its resistance drops right away. The surge arrester then sends the extra voltage safely to the ground. This stops the voltage from getting too high for your equipment. After the surge is gone, the surge arrester goes back to high resistance. Your system works like normal again.
- Surge arresters:
- Do nothing when voltage is normal.
- Act fast when a surge happens.
- Send dangerous energy to the ground.
- Keep your equipment safe from harm.
- Go back to normal after the surge is over.
Note: Put a surge arrester close to the equipment you want to protect. This helps it work faster and lowers the chance of damage.
Typical Uses
You see surge arresters in places that need strong protection from voltage surges. Power companies use them on power lines, substations, and transformers. Factories and big buildings also use surge arresters to keep machines and control systems safe.
The most common surge arrester types are silicon carbide and metal-oxide. Silicon carbide surge arresters use special resistors and spark gaps to stop voltage surges. Metal-oxide surge arresters, especially with zinc oxide, have been the main choice since the 1970s. These devices work like quick switches. They stay open when voltage is normal and close during a surge. Metal-oxide surge arresters are easy to make, cost less, and handle lots of energy.
You also find porcelain and composite surge arrester types. Porcelain surge arresters have ceramic covers. They work well in substations and power networks. Composite surge arresters use silicone rubber, so they are lighter and good for tough places like near the sea or in chemical plants.
Surge arresters in power systems have voltage ratings that match the system’s needs. For example, a 13.8 kV system often uses a surge arrester rated about 8.4 kV. This rating helps the surge arrester block the most common surges in these systems.
Tip: If you run a factory, substation, or power network, always use the right surge arrester for your voltage and location.
Surge Protection Device Use
Home and Office
Your electronics at home and work can face many dangers. Power surges can happen for many reasons. These include too many things plugged in, lightning, tree branches on wires, bad wiring, or big appliances turning on and off. A surge protection device helps keep your electronics safe from these problems. You can put a surge protective device at the outlet for computers, TVs, or game consoles. Whole-house surge protection devices protect all your appliances and hardwired electronics. These devices are simple to set up and do not cost much. They help you save money by stopping damage and repairs. Some insurance companies give discounts if you have good surge protection.
Tip: Check your surge protection device often for damage or wear. If the light goes out, get a new one.
Industrial Settings
Factories and big buildings need stronger surge protection devices. Large machines, transformers, and control systems need extra protection from big surges. A surge arrester is very important in these places. It sends dangerous voltage spikes from lightning or faults safely to the ground. This keeps your equipment working and stops long breaks. Industrial surge protective devices can handle bigger surges, work faster, and last longer. You need a professional to install them so they are grounded right and work together. Surge arresters help your electrical system stay reliable and stop costly repairs.
| Feature | Home/Office Surge Protection Device | Industrial Surge Protective Device |
|---|---|---|
| Surge Capacity | Low | High |
| Installation | Simple | Professional |
| Lifespan | Shorter | Longer |
| Customization | Not customizable | Customizable |
Choosing the Right Option
Pick the surge protection device that fits your needs. For homes and offices, use surge protective devices at outlets. You can also use whole-house options for more coverage. In factories or plants, pick surge arresters with the right voltage and energy rating. Always check if the maker is trusted and certified. Do not pick a surge protection device just because it is cheap. Think about where you will use it, how to install it, and how important your equipment is. The right choice helps your equipment last longer and work better.
Note: Using both a surge protective device and a surge arrester gives you better protection from different surges.
Surge protectors and surge arresters are not the same. Surge protectors help keep home electronics safe. Surge arresters protect big electrical systems from strong surges. Experts say you should check your voltage and location first. Think about the risks before you pick a device. Use more than one kind of protection for safety. Always follow safety rules. Check your devices often and install them the right way. This helps keep your equipment safe.
FAQ
What is the main job of a surge protector?
A surge protector keeps your electronics safe from small voltage spikes. It sends extra energy away from your devices. People use surge protectors for computers, TVs, and game consoles.
What does a surge arrester protect?
A surge arrester protects big electrical systems. It stops large voltage surges, like lightning, from hurting power lines or machines. You see surge arresters in factories and on power poles.
What happens if you do not use surge protection?
Your electronics or electrical system can get damaged. Power surges might break devices, start fires, or cost a lot to fix. Surge protection helps stop these problems from happening.
What is the difference between plug-in and whole-home surge protectors?
Plug-in surge protectors guard one device or a few at a time. You plug them into wall outlets. Whole-home surge protectors keep all your electronics safe. Electricians put them in your main panel.
What should you check before buying a surge protection device?
Always look at the voltage rating and safety labels. Pick the type of device you need. Make sure it works for your home or business. Choose trusted brands and easy instructions.
