Step-by-Step Guide to Replacing Your Circuit Breaker Panel

Replacing your home’s circuit breaker panel is crucial for safety. Old panels can lead to fires, with approximately 2,800 fires occurring annually due to outdated panels. These fires result in $40 million in damages each year. If you don’t replace the circuit breaker panel and it’s over 25 years old, it may fail 12% of the time. This highlights the importance of addressing the issue early. Upgrading and replacing the circuit breaker panel enhances the safety of your home for your family. Let’s explore what steps you need to take.

Key Takeaways

• Old breaker panels can be dangerous and might cause fires. If your panel is older than 25 years, think about replacing it to keep your house safe.
• Watch for problems like breakers tripping often, burning smells, or lights flickering. These are signs your panel might need to be replaced.
• Always shut off the power at the main switch before doing any electrical work. This is very important for staying safe.
• Write down where each wire goes before you disconnect them. This will help you put them back in the right place when you install the new panel.
• If you’re unsure about anything, call a trained electrician. Staying safe is the most important part of working with electricity.

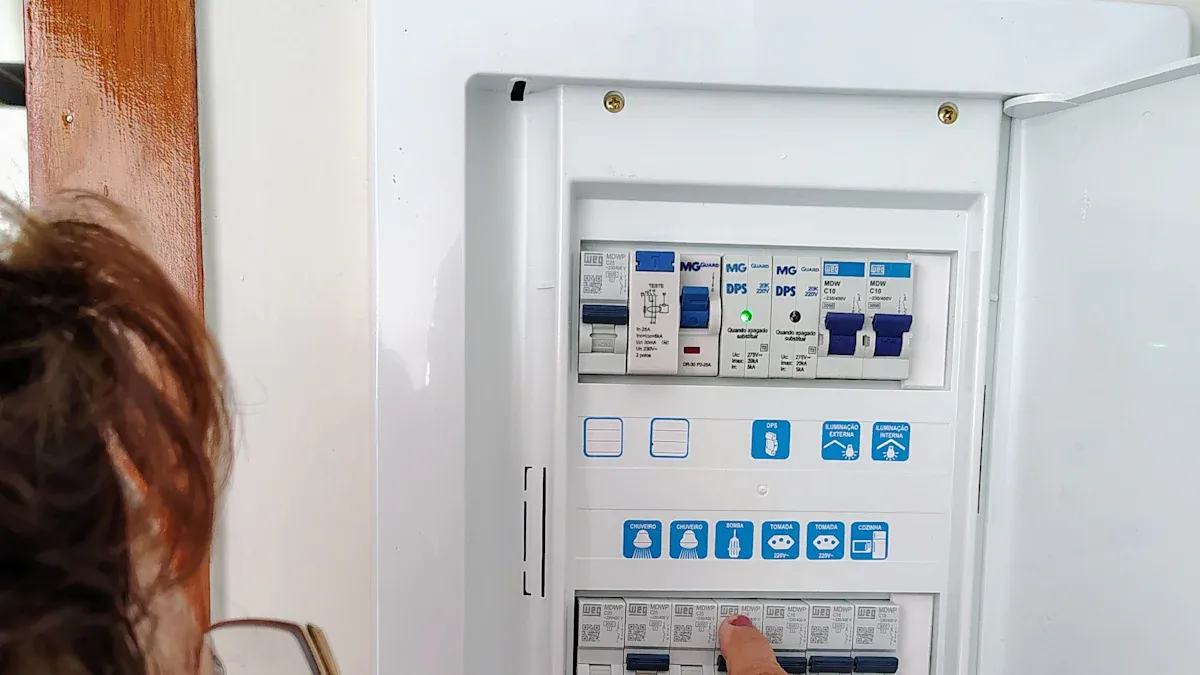

Signs You Need to Replace the Circuit Breaker Panel

Circuit Breakers Trip Often

Does your circuit breaker shut off too many times? This is a clear sign of trouble. Circuit breakers stop power when there’s too much load or a short circuit. But if it keeps happening, your panel might be old or too weak for your home’s power needs. You may notice this when using several appliances together. For instance, running the microwave and dishwasher at the same time might cause it to trip. If this happens a lot, it’s time to think about replacing your circuit breaker panel.

Burning Smells or Burn Marks

Do you smell something burning near your electrical panel? This is a serious problem. Burn smells or marks around the panel mean wires are overheating or damaged. Ignoring this could cause a fire, which is dangerous for your family. If you see black marks or smell something odd, act fast. Turn off the power and check the panel. Often, replacing the circuit breaker panel is the safest way to fix this issue.

Tip: Trust your nose. If it smells strange, check it quickly.

Lights Flicker or Dim

Do your lights flicker or dim when you use an appliance? This might mean your panel isn’t giving out power correctly. It’s not just annoying—it shows your panel could be overloaded or failing. Over time, this can harm appliances or cause electrical dangers. If this happens often, check your panel to see if it needs an upgrade.

Outdated or Overloaded Panel

Is your circuit breaker panel struggling with your home’s power needs? If it’s old or overloaded, it may not work well with modern devices. Older panels were made for homes with fewer gadgets. Now, with smart devices and big appliances, an old panel can easily fail.

Here are signs your panel might be outdated or overloaded:

• Frequent power outages: Does the power go out when you plug in something new? This could mean your panel is overworked.
• Limited circuit capacity: Older panels have fewer circuits, so they can’t share power well.
• No room for upgrades: If your panel is full and can’t add circuits, it’s time to upgrade.

An overloaded panel isn’t just annoying—it’s dangerous. It can overheat and cause electrical fires. If you notice these problems, it’s a sign to replace your circuit breaker panel. A new panel will safely handle your home’s power needs.

Pro Tip: Check your panel’s age. If it’s over 25 years old, replace it.

Unusual Noises from the Panel

Do you hear buzzing, crackling, or popping sounds from your panel? These sounds are not normal and could mean a big problem. A working panel should be quiet. Strange noises might mean loose wires, bad connections, or a broken breaker.

Here’s what to do if you hear odd sounds:

1. Turn off the power immediately: Safety first. Shut off the main power to stop damage.
2. Inspect the panel: Look for damage like burn marks or melted wires.
3. Call a professional: If you’re unsure, call an electrician for help.

Ignoring these sounds can cause bigger issues, like fires. Fixing the problem early saves time, money, and stress. If the noise doesn’t stop, replacing the panel might be the best fix.

Reminder: Don’t ignore strange sounds from your panel. They’re often a warning of danger.

Safety Precautions Before Replacing the Circuit Breaker Panel

Before replacing the circuit breaker panel, safety is very important. Electrical work can be risky if you don’t follow precautions. Here’s how to stay safe.

Turn Off Power at the Main Source

First, turn off the power at the main source. This stops electricity from flowing while you work. Working on live electricity is very dangerous and can cause injuries or death.

Here’s why this step matters:

To turn off power, find your home’s main breaker panel. Flip the main breaker switch to “off.” After this, you can safely move to the next steps.

Important: Never skip this step. Always turn off power before starting any electrical work.

Wear Protective Gear

Wearing protective gear helps prevent injuries. Electrical work has risks like sparks, sharp wires, or touching live parts. To stay safe, wear:

• Insulated gloves: Protects you from electric shocks.
• Safety goggles: Shields your eyes from sparks or debris.
• Non-conductive footwear: Rubber shoes stop electrical grounding.

Wear snug clothes without loose ends that could catch on wires. These steps prepare you for unexpected problems.

Tip: Keep a first-aid kit nearby for small injuries.

Use a Voltage Tester to Confirm Power is Off

Even after turning off the main breaker, check if the power is fully off. Sometimes circuits stay live due to wiring issues. A voltage tester is a simple tool to confirm no electricity is flowing.

Here’s how to use it:

1. Hold the tester near wires or terminals you’ll touch.
2. If it lights up or beeps, the circuit is still live.
3. If there’s no response, the power is off and safe to work.

Using a voltage tester adds extra safety. It’s a quick step that prevents big accidents. Always test before touching anything.

Reminder: Don’t assume the power is off. Testing takes seconds and can save your life.

By following these safety tips, you’ll make replacing the circuit breaker panel safer. Taking these steps seriously avoids unnecessary risks.

Make Sure the Area is Safe and Bright

Before replacing your circuit breaker panel, get your workspace ready. A clean, bright area makes the job safer and easier. Follow these steps to prepare:

1. Clear the Area Around the Panel
   Move anything near the panel, like tools or furniture. Clutter can cause accidents or get in your way. A tidy space helps you work better and stay safe.
2. Add Enough Light
   Bright light is important for electrical work. If it’s dark, use a headlamp or portable light. Shadows can hide small details, like wires, so light up the area well.

   Tip: LED lights are bright, cool, and save energy.

3. Keep Tools Close By
   Put your tools where you can easily reach them. Use a tool belt or table to keep them organized. This saves time and keeps you focused.
4. Check for Water or Dampness
   Look for leaks or wet spots near the panel. Dry the area completely before starting. Wet spaces can cause electric shocks.
5. Make Sure Air Can Flow
   If the space is small, let air in. Open a window or use a fan to stay cool and comfortable while working.
6. Tell Others in the House
   Let your family know you’re working on the power. This stops anyone from turning it back on by mistake. You can also leave a note on the main breaker.

By preparing your workspace, you make the job safer and easier. These steps help you replace the circuit breaker panel without problems.

Tools and Materials Needed to Replace the Circuit Breaker Panel

Before starting, gather all tools and materials. Being prepared makes the job easier and safer. Here’s what you’ll need:

Basic Tools (Screwdrivers, Wire Strippers, Voltage Tester)

You’ll need some basic tools for this task. These tools help with wires, testing, and securing parts. Here’s a simple list:

• Screwdrivers: Use flathead and Phillips screwdrivers to tighten or loosen screws.
• Wire strippers: These remove wire coverings without harming the wires.
• Voltage tester: This checks if power is off before you begin. It keeps you safe.

Pro Tip: Check your tools first. Broken tools can cause delays or accidents.

Good tools make the job safer. For example, a multimeter checks voltage well, and pliers help with wires. Always test tools to ensure they work properly.

New Circuit Breaker Panel

Picking the right panel is very important. New panels are safer and handle more power. They also have features like overload protection. Unlike old fuse boxes, which react in 0.002 seconds, circuit breakers take 0.1–0.2 seconds but are more reliable.

Choose a panel that fits your home’s power needs. Most homes need panels supporting 100–200+ amps. Ensure it has enough circuits for your appliances and future needs.

Note: Follow local safety rules. If unsure, ask an electrician for advice.

Electrical Tape and Wire Nuts

Electrical tape and wire nuts are small but very useful. They keep wires connected and prevent problems. Wire nuts twist wires together securely, while tape adds extra safety.

Here’s how to use them:

• Twist wire nuts tightly to secure connections.
• Wrap tape around exposed wires for added protection.
• Add dielectric grease before taping for extra safety.

These items make your work safer and last longer. Skipping them can cause loose wires or shorts, which are dangerous.

Reminder: Keep extra tape and wire nuts nearby. It’s better to have too many than not enough.

By gathering these tools and materials, you’ll be ready to replace the circuit breaker panel safely and easily.

Labels for Wires and Circuits

Labeling wires and circuits is a small but vital step. It keeps you organized and helps reconnect wires correctly. Without labels, wires can get mixed up, causing dangerous errors.

Here’s how to label wires and circuits easily:

1. Use Pre-Made Labels or Masking Tape
   Buy pre-made labels from a hardware store. If unavailable, use masking tape. Write clearly with a permanent marker to avoid smudging.
2. Label Wires Before Disconnecting Them
   As you remove each wire, label it right away. Write what it connects to, like “kitchen lights” or “bedroom outlets.” This avoids confusion later.
3. Match Labels to the Circuit Diagram
   Most panels have a circuit diagram or list. Match your labels to this. If the diagram is missing, create one as you work.
4. Double-Check All Labels
   Check that every wire has a label before continuing. Missing even one label can cause mistakes during installation.

Pro Tip: Use different colors for labels. For example, red for appliances and blue for lights.

Taking time to label wires makes the job easier. It also helps if you need to fix or upgrade the system later.

Safety Equipment (Gloves, Goggles)

Safety gear is a must when working with electricity. It protects you from shocks, burns, and injuries. Here’s what you need:

• Insulated Gloves
  These gloves stop electric shocks. Make sure they’re rated for the voltage you’ll handle. Regular gloves won’t protect you.
• Safety Goggles
  Goggles protect your eyes from sparks or flying debris. Choose snug-fitting goggles that don’t fog up.
• Non-Conductive Footwear
  Wear rubber-soled shoes to avoid grounding. Don’t wear sandals or shoes with metal parts.

Reminder: Check your safety gear before starting. Look for tears in gloves or scratches on goggles. Damaged gear won’t protect you well.

Using proper safety gear lets you work without fear of accidents. It’s a simple way to stay safe while replacing the panel.

How to Replace the Circuit Breaker Panel

Turn Off Power and Confirm It’s Off

Before starting, ensure the power is completely off. This step is vital for safety. Find your home’s main breaker panel and switch the main breaker to “off.” Don’t stop there—use a voltage tester to confirm no electricity is flowing. Sometimes, wires can still carry power due to issues, so double-checking is crucial.

Here’s how to check if the power is off:

1. Place the voltage tester near the wires or terminals.
2. If it lights up or beeps, the circuit is still live.
3. If there’s no signal, it’s safe to proceed.

Safety Tip: Always test the power. It only takes seconds and prevents accidents.

Turning off the power isn’t just a step—it’s a lifesaving action. Electrical accidents rose by 15% between 2015 and 2016, showing the dangers of live wires. Always de-energize the panel before working on it.

Remove the Old Circuit Breaker Panel

Taking out the old panel needs care and focus. Start by removing the panel cover with a screwdriver. Once open, you’ll see the breakers and wires inside. Before touching anything, wear safety gear like insulated gloves and goggles. These protect you from sparks, sharp edges, and electrical risks.

Follow these steps to remove the old panel safely:

• Double-check the power is off: Use the voltage tester again to confirm no electricity.
• Unscrew the breakers: Use the right screwdriver to avoid damaging screws or wires.
• Detach the panel: Carefully take the panel off the wall without pulling or harming wires.

Important: NFPA safety rules require making wires safe before work. Always follow proper safety steps when removing panels.

Removing the panel isn’t just about taking it down—it’s about doing it safely to avoid harm.

Label and Disconnect Wires

Labeling and disconnecting wires is key to reconnecting them correctly later. Use a marker or labels to tag each wire. Write what each wire connects to, like “kitchen lights” or “bedroom outlets.” This simple step avoids confusion during reinstallation.

Here’s how to label and disconnect wires:

1. Label wires first: As you remove each wire, label it right away. Write clearly to avoid mistakes.
2. Test wires again: Use a voltage tester to confirm no power before disconnecting.
3. Disconnect the main wire: Carefully remove the main hot wire and check for leftover current.
4. Organize wires: Place wires in a safe, dry spot to avoid tangling or damage.

Pro Tip: Use different label colors for easy identification. For example, red for appliances and blue for lights.

Labeling wires isn’t just about staying neat—it ensures safety and accuracy. Without labels, reconnecting wires can become risky and confusing.

Install the New Circuit Breaker Panel

Now that the old panel is gone, let’s install the new one. This step needs care and focus, but you can do it! Follow these simple steps to make the process smooth:

1. Stay Safe
   First, check again that the power is off. Wear your safety gear, like gloves and goggles, to protect yourself.
2. Place the New Panel
   Line up the new panel with the wall space. Use screws to attach it tightly. Make sure it’s straight and secure.
3. Get the Wires Ready
   Use wire strippers to remove about half an inch of insulation from each wire. Clean wires make connecting easier and safer.
4. Add the Main Breaker
   Put the main breaker into its slot in the panel. Push it firmly until it clicks into place. This breaker controls all the power.
5. Install the Other Breakers
   Place each breaker into its spot. Start with the big ones for appliances like the air conditioner. Then, add smaller ones for lights and outlets.
6. Check Everything Twice
   Look at all the connections to ensure they’re tight. Loose wires can cause problems like overheating.
7. Close the Panel Cover
   Once done, screw the cover back on. This keeps the breakers safe and prevents accidental touches.

Tip: Take your time. Rushing can lead to mistakes, and mistakes with electricity can be dangerous.

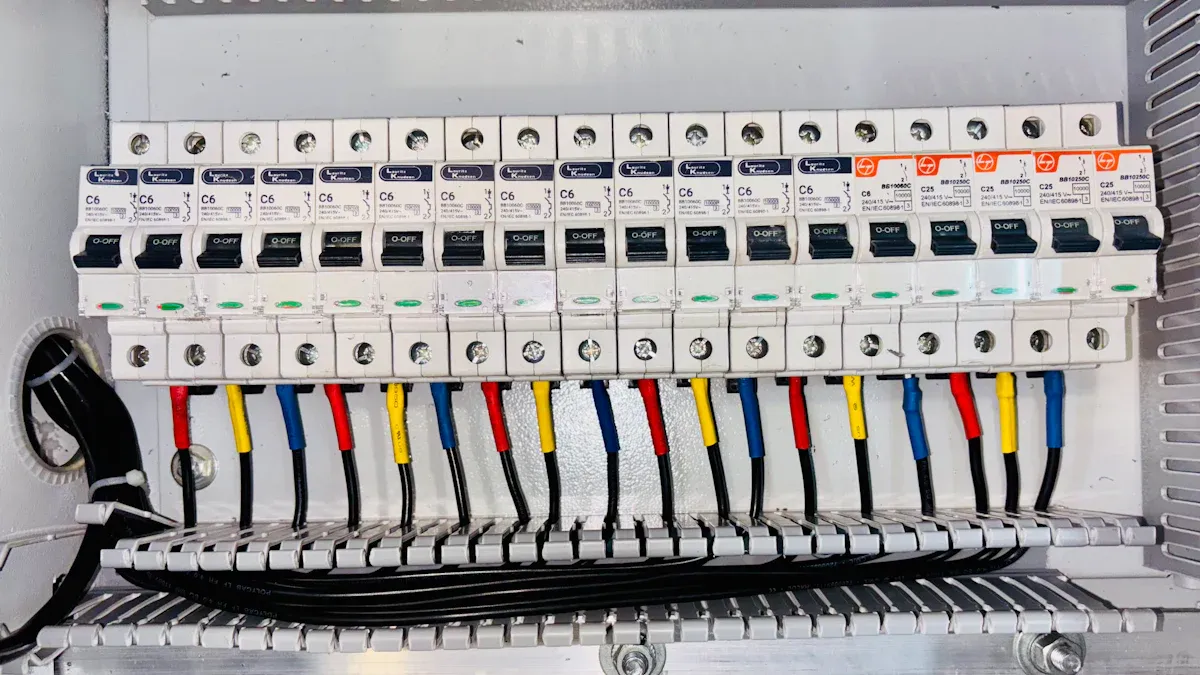

Reconnect Wires and Secure the Panel

Now it’s time to reconnect the wires to the new panel. Don’t worry—your earlier labels will make this part easier.

1. Connect the Main Wires
   Start with the main hot wire. Attach it to the main breaker and tighten it well. Then, connect the neutral and ground wires to their bus bars.
2. Attach the Circuit Wires
   Match each labeled wire to its breaker. Insert the wire into the terminal and tighten it. Make sure it’s snug but don’t overtighten.
3. Organize the Wires
   Arrange the wires neatly inside the panel. Use zip ties to keep them tidy and away from the breakers. This helps with future repairs.
4. Inspect Your Work
   Check all connections again. Look for loose wires or exposed copper. Everything should be secure and safe.

Reminder: If you’re unsure about anything, call a licensed electrician. Safety is the most important thing.

Restore Power and Test the System

The last step is to turn on your new panel and test it. This is where all your effort pays off!

1. Turn On the Main Breaker
   Flip the main breaker switch to “on.” This brings power back to the panel.
2. Test Each Circuit
   Turn on each breaker one at a time. Check if the lights, outlets, or appliances work. If something doesn’t work, turn off the breaker and check the connection.
3. Watch for Problems
   Listen for strange sounds like buzzing. Look for overheating signs, like a warm panel or burning smell. If you notice anything odd, turn off the power and call a professional.
4. Write Down Changes
   Make a note of the new panel layout and any updates. This will help if you need to fix or upgrade it later.

Pro Tip: Keep an eye on your system for a few days to ensure everything works well.

By following these steps, you’ll have a safe and working electrical system. Great job—you’ve replaced your circuit breaker panel successfully! 🎉

Testing and Final Checks After Replacing the Circuit Breaker Panel

Test Each Circuit for Proper Functionality

After installing the new panel, test each circuit to ensure it works. First, turn on the main breaker. Then, switch on each circuit breaker one by one. Check if appliances, outlets, and lights are working correctly. If something doesn’t work, turn off the breaker and check the wiring for mistakes.

Here’s a simple guide to testing methods:

These tests make sure your panel is safely and efficiently distributing power.

Tip: Write down any problems you find during testing. This helps with fixing issues later.

Check for Any Loose Connections

Loose wires can cause buzzing sounds, overheating, or even fires. After testing, look at all wire connections inside the panel. Tighten any loose ones carefully. Don’t tighten too much, as this could damage the wires.

Watch for these signs of loose connections:

• Buzzing or hissing sounds near the panel.
• Lights flickering or power cutting off randomly.
• Warm spots on the panel’s surface.

Fixing loose wires quickly can stop bigger problems and save money.

Reminder: A good panel should be quiet, except when a breaker trips.

Ensure the Panel Cover is Securely Attached

The last step is attaching the panel cover tightly. A loose cover can expose live parts, which is dangerous. Use screws to secure the cover firmly so it doesn’t move or wobble.

A tight cover keeps the panel safe from dust and moisture. Check all screws to make sure the cover fits snugly.

Pro Tip: If the cover doesn’t fit right, adjust it immediately for better safety.

Watch the System for Problems

After installing and testing your new circuit breaker panel, keep checking it for issues. Regular checks help keep your electrical system safe and working well. Here’s how to do it:

1. Listen for Strange Noises
   A good panel should stay quiet. If you hear buzzing, popping, or crackling, there might be a problem. These noises could mean loose wires or bad breakers. Turn off the power and check the panel if you hear anything odd.
2. Feel for Heat
   Touch the panel now and then. It should feel cool or just a little warm. If it feels hot, it could mean too much power is running through or the wiring has a problem. Heat can lead to dangerous fires.
3. Look for Damage
   Check the panel for burn marks, melted wires, or rust. These are signs of overheating or damage. Also, make sure there’s no water or dampness near the panel, as this can cause problems.
4. Test the Breakers Often
   Every few months, flip each breaker on and off. This keeps them from getting stuck and ensures they work. If a breaker won’t reset or trips a lot, it might need to be replaced.
5. Watch Your Power Use
   Notice if lights flicker or appliances act weird. These could mean the panel isn’t handling power well or your home is using too much electricity.

Tip: Write down anything unusual. Note dates, sounds, or changes you see. This helps you find patterns and fix problems early.

By staying careful and checking often, you can stop small problems from becoming big ones. If something seems wrong and you don’t know how to fix it, call a licensed electrician. Safety is always the most important thing! ⚡

When to Call a Professional for Circuit Breaker Panel Replacement

Replacing a circuit breaker panel can sometimes feel too hard. While doing it yourself is fine for some tasks, there are times when calling an expert is the safest option. Let’s see when you should let a professional handle it.

If You’re Not Sure About Electrical Safety

If you don’t feel safe working with electricity, stop. Electrical work can be risky, especially if you don’t know safety rules. One mistake, like touching a live wire, can cause serious harm. Experts have the skills and tools to handle these dangers. They know how to deal with live wires, grounding, and other tricky parts. If you’re unsure, don’t risk it—call an electrician.

Safety Tip: Feeling unsure or scared? Stop right away and call a licensed expert.

If the Wiring is Complicated

Modern homes often have very complex wiring. If your panel connects to subpanels, big appliances, or special circuits, it can get confusing fast. Wrongly connected wires can break appliances or even start a fire. Electricians know how to handle these setups and make sure everything works safely. They also test the system to ensure it’s running well.

Pro Tip: Have solar panels or a home generator? Always hire a pro for these setups.

If Local Rules Require a Licensed Electrician

Some places have strict rules about who can replace a circuit breaker panel. Many local codes say only licensed electricians can do this job. These rules keep you and your home safe. Professionals know these rules and will make sure your panel passes inspections. Ignoring this could lead to fines or trouble when selling your house.

Reminder: Check your local rules before starting. A quick call to your city office can save you problems later.

Knowing when to call an expert can save time, money, and stress. It also keeps your home’s electrical system safe and working well.

If Unexpected Issues Arise During Installation

Sometimes, things don’t go as planned. You might run into unexpected problems while replacing your circuit breaker panel. Don’t panic—there’s always a way to handle it. Here’s how you can tackle common issues and keep your project on track.

1. Encountering Damaged Wires

Damaged wires can be a surprise. If you see frayed or burnt wires, stop immediately. These wires are unsafe and need replacing. Use wire strippers to remove the damaged section. Then, connect new wires using wire nuts and electrical tape.

Safety Tip: Always test the wires with a voltage tester before touching them. Even if the power is off, double-checking keeps you safe.

2. Panel Doesn’t Fit Properly

Sometimes, the new panel doesn’t fit the wall space. Measure the area again to confirm the dimensions. If the panel is too big, you may need to adjust the mounting area. Use a level to ensure the panel sits straight. For smaller panels, add spacers to secure it tightly.

3. Breakers Won’t Snap Into Place

Breakers can be tricky. If they don’t snap in, check for debris or misalignment in the slots. Clean the area and try again. If the problem persists, inspect the breaker for damage. Replace it if necessary.

4. Unexpected Power Flow

If you notice power flowing even after turning off the main breaker, there might be a wiring issue. Use your voltage tester to identify live circuits. Disconnect the wires and trace the problem. If you can’t figure it out, call a licensed electrician.

Reminder: Don’t guess when it comes to electricity. If something feels off, it’s better to get professional help.

5. Missing Tools or Materials

Running out of supplies can slow you down. Before starting, double-check your tools and materials list. If you’re missing something, pause the project and get what you need. Working without the right equipment can lead to mistakes.

Pro Tip: Keep extra wire nuts, electrical tape, and screws handy. It’s better to have too much than not enough.

By staying calm and following these steps, you can handle unexpected issues like a pro. If the problem feels too big or unsafe, don’t hesitate to call an electrician. Your safety always comes first! ⚡

Changing the circuit breaker panel can be simple if done step by step. Focus on safety and follow instructions carefully to succeed. If you face problems or feel unsure, ask a licensed electrician for help. A well-installed panel keeps your home safe and powers it efficiently for a long time. Work slowly, stay neat, and feel proud of completing the task. ⚡

Reminder: Always put safety first. Unsure? Call an expert.

FAQ

How much does it cost to replace a circuit breaker panel?

Replacing a panel costs between $1,500 and $3,000. The price depends on the panel size, labor, and extra upgrades. If permits or rewiring are needed, the cost may increase. Always ask licensed electricians for exact quotes.

Can I replace a circuit breaker panel myself?

You can, but only if you know electrical work well. If you’re unsure about safety or local rules, hire an expert. Mistakes can cause fires or injuries. When in doubt, it’s safer to call a professional.

How long does it take to replace a circuit breaker panel?

It usually takes 4 to 8 hours to replace a panel. The time depends on the wiring and panel size. If problems come up, it might take longer. Experts finish faster because they have more experience.

Do I need a permit to replace my circuit breaker panel?

Most places require permits for replacing panels. Check with your local building office to be sure. Permits make sure the work is safe and follows rules. Skipping this step could lead to fines or trouble selling your house.

What if I install the wrong panel size?

The wrong panel size can overload your system or not give enough power. This can harm appliances or cause electrical dangers. Always pick a panel that fits your home’s power needs. Ask an electrician if you’re not sure.

The following information may be of interest to you

How to Trace and Locate a Circuit Breaker Easily

How to replace the circuit breaker correctly

Can I replace a fuse with a circuit breaker?

How to Replace a Surge Protector Safely and Efficiently
