RCBO vs RCCB+MCB: Which one saves more distribution box space

You want to fit more devices in your distribution box. RCBO gives you the most space. See how these two options compare in the table below:

Saving space makes installation easier and keeps your panel neat.

Key Takeaways

• RCBO helps save room in your distribution box. It puts two protections into one device.
• Using RCBO makes installation easier. It lowers wiring problems and mistakes.
• RCBO can cost more at first. But it might save money when you install or upgrade later.
• RCCB and MCB need more space and wires. This makes them not as good for small panels.
• Pick RCBO for small setups. It is also good if you want to add more circuits later.

Quick Comparison

Space at a Glance

You want to use your distribution box well. Picking the right device helps you save space and stay organized. Here is a simple look at RCBO and RCCB+MCB:

• RCBO takes up one slot in your panel.
• RCCB and MCB need two slots, so they use more space.

If your panel is small or you want more circuits, RCBO gives you extra room for later.

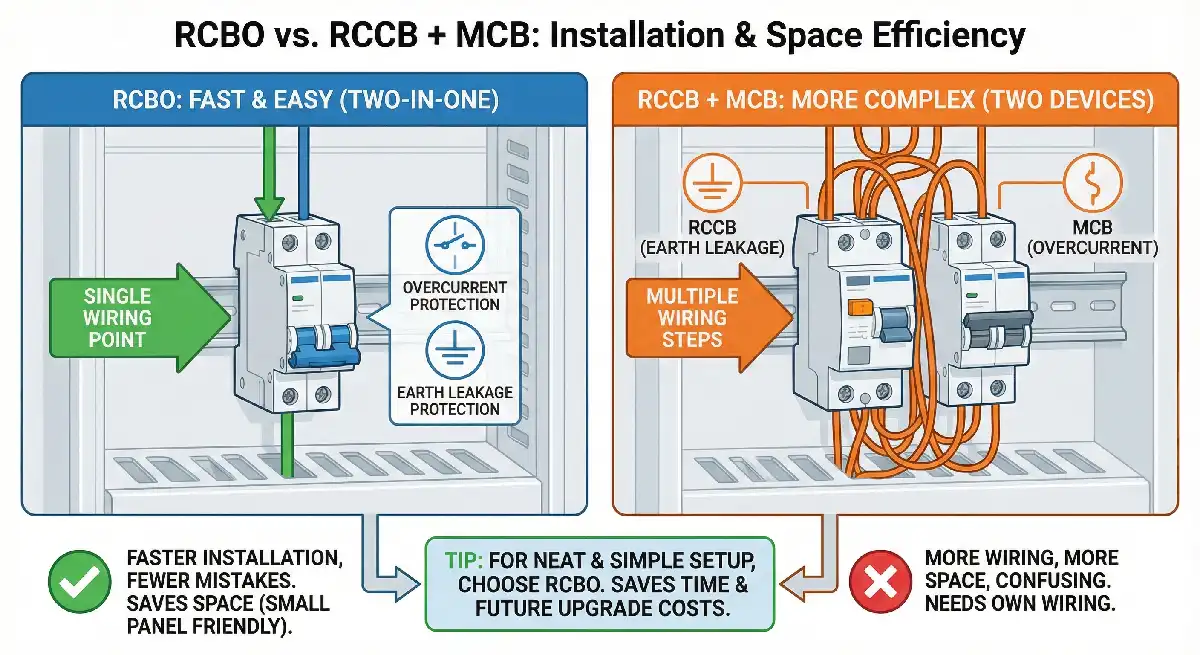

Installation Differences

You want to finish installation fast and easy. RCBO puts two protections in one device. You only need to wire one unit. This saves time and helps you make fewer mistakes.

RCCB and MCB need their own wiring. You must connect both and check if they work together. This takes more work and can be confusing.

Tip: If you want your setup neat and simple, RCBO makes things faster and easier.

Here are the main differences:

• RCBO saves space in your panel, so it is good for small places.
• RCBO makes wiring easier because it has earth leakage and overcurrent protection in one.
• RCCB+MCB needs more space and more wiring steps.
• RCBO costs more at first, but you might save money on work and upgrades later.

You can see RCBO is better if you want to save space and finish faster.

RCBO Space Efficiency

Compact Design

You want your distribution box to look neat. RCBO helps because it is small. This device gives two types of protection in one unit. You do not need to put two devices in your panel. This saves space when your box is crowded.

• RCBO does the job of both an MCB and an RCD.
• You only need one slot for each circuit you protect.
• The small size is good for homes and buildings with little space.
• New RCBOs are even slimmer, so they are great for new setups or upgrades.

You can see how much space you save in this table:

RCBOs fit into most electrical panels. This makes them easy to use almost anywhere.

Installation Steps

You want to finish installing fast and easy. RCBO helps you do this. You only need to put in one device for each circuit. This means less wiring and fewer mistakes. You save time and keep your panel neat.

Here is how RCBO and RCCB + MCB are different:

Tip: RCBOs help you finish your work faster and make wiring less confusing.

The small size and easy steps make RCBO a smart pick if you want to save space and keep your box neat.

RCCB+MCB Combination

Device Size

You need two devices when you pick RCCB+MCB. The MCB stops too much current. The RCCB protects against earth leakage. Each device takes up space in your box. We measure their size in module units. Here is a table that shows the usual size:

Even the smallest setup uses at least three modules for one circuit. If you add more circuits, you use even more space.

Space Usage

You must plan your box well with RCCB and MCB. Each circuit needs both devices, so you use more slots. This can fill your panel fast, especially if you have many circuits. You might run out of space before you finish adding protection. If you compare this to RCBO, RCCB+MCB uses more room for the same job.

Note: If your box is small, you may not have enough space for all the RCCB and MCB units you need.

Installation Process

It is harder to install RCCB and MCB together than using one device. You must connect both devices for each circuit. This means more wiring and more chances for mistakes. Here are some common problems you might face:

• Overloading circuits can cause failures if you go over the MCB’s rated current.
• Ignoring earthing can lead to electric shocks.
• Mixing wire sizes can make wires too hot.
• Skipping labels makes fixing problems harder.
• Using fake MCBs can cause dangerous failures.

You need to be careful with every step. Good labels and neat wiring help you avoid problems. The extra work can make installation slower and less neat.

Space Comparison

Slot Requirements

You want to know how much space each option takes in your distribution box. You measure space in “slots” or “modules.” Each device uses a certain number of slots. If you use fewer slots, you can fit more circuits or keep your box smaller.

Here is a simple table to help you compare:

You see that RCBO uses only one slot for each circuit. RCCB + MCB uses two slots for each circuit. If you have a small box, you can fit more RCBOs than RCCB + MCB pairs.

Tip: If you plan to add more circuits in the future, using fewer slots now gives you more options later.

Real-World Scenarios

Let’s look at some real examples. Imagine you have a home with six rooms. You want to protect each room with its own circuit.

• If you use RCBO, you need six slots for six circuits.
• If you use RCCB + MCB, you need twelve slots for the same six circuits.

Now, think about a small apartment panel with only eight slots. If you use RCBO, you can protect up to eight circuits. If you use RCCB + MCB, you can only protect four circuits because each one needs two slots.

Here is another example. You want to upgrade your old panel, but you do not want to buy a bigger box. You can switch to RCBO and fit more circuits without changing the panel size. This saves you money and time.

Note: Saving space in your distribution box helps you avoid costly upgrades and keeps your setup neat.

You can see that choosing the right device makes a big difference. RCBO helps you use your space better, especially when you have many circuits or a small panel.

Other Factors

Cost Impact

You want to know how much you will spend. The price of each device matters when you plan your electrical panel. Here is what you should consider:

• An RCBO usually costs more than an RCCB.
• An RCBO can cost about the same as an RCD and ten times the price of an MCB.
• Many people choose the RCCB and MCB combination because it costs less at first.

You may pay more for RCBOs at the start. If you want to save money right away, the RCCB and MCB setup looks better. If you want to save space and time, you may find the higher price of RCBO worth it.

Tip: Think about both the cost of the devices and the cost of installation. Fewer devices can mean less work and lower labor costs.

Protection Level

You want your circuits to stay safe. Each device gives a different level of protection. Look at this table to see what each one does:

• RCBO gives you both earth fault and overcurrent protection in one device.
• RCCB only protects against earth leakage.
• MCB protects against overloads and short circuits.

You get full protection for each circuit with RCBO. If you use RCCB and MCB, you must use both to get the same safety.

Application Suitability

You want to pick the right device for your needs. Some setups work better with RCBOs, while others fit the RCCB and MCB combination. See where each works best:

You should use RCBOs in new buildings or when you want to save space. You also need them for circuits that must not fail, like medical equipment or alarms. If you have a large panel and want to save money, RCCB and MCB may work for you.

Note: Always check your local electrical codes before you choose.

RCBO vs RCCB+MCB: Recommendation

Best Choice for Space

You want to make the most of your distribution box. If you need to save space, you should choose RCBO. Industry experts say that RCBOs work better for modern distribution boxes. They combine two functions in one device. This means you use less space and keep your panel neat. You can add more circuits without worrying about running out of room. You also make your installation look tidy and easy to manage.

Tip: If you plan to upgrade your electrical system or add more circuits later, picking RCBO now gives you more options.

When to Use Each Option

You should use RCBO when you have a small panel or want to keep your setup simple. RCBO works well in new homes, apartments, and places where space matters. You also get full protection for each circuit. This helps you avoid problems and makes your system safer.

You can use RCCB and MCB if you have a large panel and want to save money at first. This setup works in older buildings or places where space is not a problem. You may also choose RCCB and MCB if you need to protect many circuits with one device. This can help you lower your costs, but you will use more space.

Here is a quick guide:

You should always check your local rules before you decide. Pick the option that fits your needs and keeps your system safe.

You want to use your distribution box in the best way. RCBO helps you save space because it has two protections in one device. New reports say this design makes your panel smaller and easier to handle. If your panel is small or you need both overload and shock protection, RCBO is the best choice. Sometimes, RCCB and MCB are better for big panels or special circuits. Look at this table to see which device fits your needs:

Think about how much space you have, how safe you want to be, and how much money you can spend before you pick.

FAQ

What is the main benefit of using RCBO in my distribution box?

You save space because RCBO combines two protections in one device. You also make installation easier and keep your panel neat.

Can I replace RCCB+MCB with RCBO in an old panel?

You can switch to RCBO if your panel supports it. Check the slot size and wiring before you start. RCBO helps you upgrade without needing a bigger box.

Does RCBO cost more than RCCB+MCB?

RCBO usually costs more upfront. You may save money on installation and future upgrades because you use fewer devices.

Which option gives better protection for each circuit?

You get full protection for each circuit with RCBO.
