You can find many industrial circuit breaker types available in the market. Some common industrial circuit breaker types include MCB, MCCB, RCCB, ACB, VCB, SF6, Oil, ICCB, hydraulic-magnetic, magnetothermal, enclosed, and multi-pole breakers. These industrial circuit breaker types are categorized by voltage levels, which can be low, medium, or high voltage. Each voltage group serves different applications.
Choosing the right industrial circuit breaker type is essential for protecting both people and equipment. Features such as adjustable trip settings enhance safety, while arc fault detection helps prevent fires. Additionally, remote monitoring capabilities allow you to oversee breakers from a distance, improving overall safety and performance.
| Voltage Level Segment | Market Share / Growth | Market Size (2024) |
|---|---|---|
| Low Voltage (<1 kV) | Largest share | USD 6.0 billion |
| Medium Voltage (1–36 kV) | Moderate share | Included in total |
| High Voltage (>36 kV) | Fastest growth rate | Included in total |
Key Takeaways
- Industrial circuit breakers can be low, medium, or high voltage. Each type is made for certain jobs and safety rules. You must pick the right breaker for the job. The breaker must match the voltage, current, and interrupting power. This keeps people and machines safe. Low voltage breakers include MCBs and MCCBs. MCBs are for small loads in homes and factories. MCCBs are for bigger machines. Medium and high voltage breakers use special methods. They use vacuum, SF6 gas, or air to stop faults. Modern breakers have digital monitoring and settings you can change. These features help keep things safe and lower downtime. They also work well in hard places.
Industrial Circuit Breaker Types
Industrial circuit breaker types are grouped by voltage. There are low voltage, medium voltage, and high voltage types. Each group has different breaker designs. Each design has its own features and uses. You must pick the right type for your job. This keeps people and equipment safe.
Low Voltage Types
Low voltage industrial circuit breaker types protect circuits up to 1,000 volts. You see them in factories and big buildings. They are also in control panels. Here are the main types:
- Miniature Circuit Breaker (MCB)
MCBs stop too much current and short circuits. You use them in lights and small machines. They trip fast when there is a problem. MCBs are small and simple to put in.Tip: MCBs are best for loads up to 125 amps.
- Molded Case Circuit Breaker (MCCB)
MCCBs handle bigger currents, up to 1,000 amps. You use them for big machines and main panels. MCCBs let you adjust trip settings for better protection.Note: MCCBs need more space and cost more than MCBs. They protect heavy equipment better.
- Residual Current Circuit Breaker (RCCB) and Residual Current Device (RCD)
These breakers keep people safe from electric shock. They find earth leakage currents. You use them where safety is very important, like wet places or near special equipment. - Hydraulic-Magnetic and Magnetothermal Breakers
Hydraulic-magnetic breakers trip by current, not heat. They work well when temperatures change a lot. Magnetothermal breakers use both magnetic and thermal trips. This gives better overload and short-circuit protection. - Enclosed and Multi-pole Breakers
Enclosed breakers have cases to protect them in tough places. Multi-pole breakers control many circuits at once. This helps in complex systems.
Here’s a table that compares MCBs and MCCBs:
| Feature | MCCB (Molded Case Circuit Breaker) | MCB (Miniature Circuit Breaker) |
|---|---|---|
| Interrupt Capacity | Up to 100kA or more | Few thousand to tens of thousands amps |
| Physical Size | Larger, robust, multi-pole options | Compact, smaller, limited modularity |
| Tripping | Adjustable, handles motor inrush | Fast, sensitive to minor overloads |
| Application | Industrial machinery, large buildings | Residential, small commercial, light industrial |
| Installation | Fixed, professional wiring | DIN rail, easy retrofit |
| Maintenance | Needs inspection every 3-5 years | Sealed, replaced at end of life |
| Cost | 25%-50% more expensive | More affordable |
Low voltage industrial circuit breaker types protect most buildings and equipment. These breakers follow strict IEC rules and pass hard tests. Makers test them for strength and how well they work in tough places. Digital features help you watch them from far away. You can also use tools to find problems early and stop downtime.
Medium Voltage Types
Medium voltage industrial circuit breaker types work from 1,000 to 36,000 volts. You use them in substations and big factories. They are also in large commercial sites. The main types are:
- Vacuum Circuit Breaker (VCB)
VCBs use a vacuum to stop arcs. They last a long time and need little care. VCBs are safe for the environment. They work well in dusty or dirty places. - Air Circuit Breaker (ACB)
ACBs use air to put out arcs. You use them for big loads and main power. ACBs can stop up to 6,300 amps. They let you control and watch them from far away. - SF6 Circuit Breaker
These breakers use SF6 gas to stop arcs fast. You find them where you need high reliability. SF6 breakers handle up to 52 kV and 4,000 amps. They can stop faults up to 50 kA. - Oil Circuit Breaker (OCB)
OCBs use oil to cool and stop arcs. You may see them in old places. Many companies now replace them because of fire risks. - Withdrawable and Enclosed Breakers
Withdrawable breakers let you disconnect and fix equipment safely. Enclosed types keep out dust, water, and chemicals.
Note: Medium voltage breakers must pass hard tests. These include insulation and contact resistance checks. You can use thermal cameras to find hot spots and stop failures.
Medium voltage industrial circuit breaker types use new technology. AI tools help you find problems by checking timing and resistance. Automation makes tests better and faster. These changes make your system safer and more reliable.
High Voltage Types

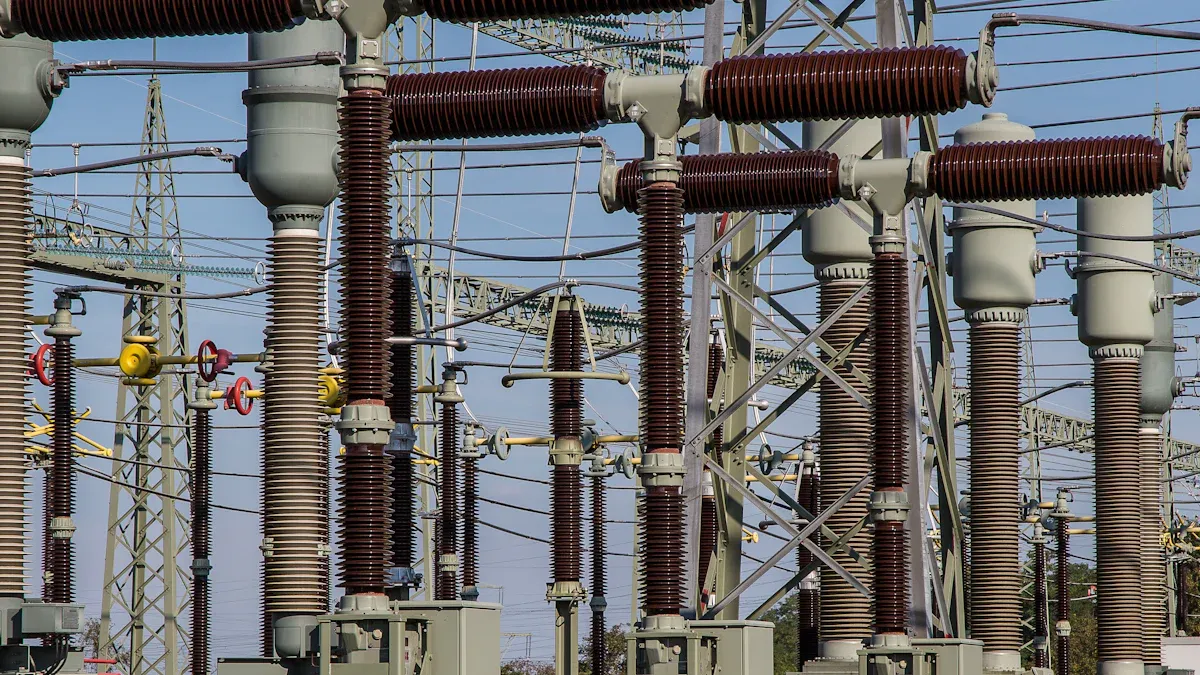

High voltage industrial circuit breaker types work above 36,000 volts. You use them in power plants and transmission lines. They are also in big substations. The main types are:
- SF6 High Voltage Breakers
These use SF6 gas to stop arcs fast. They are very reliable and handle big fault currents. SF6 breakers are common in new transmission systems. - Vacuum and Oil High Voltage Breakers
Vacuum breakers are good for switching and protection in networks. Oil breakers are not used much now because of safety worries. - Gas-Insulated and Enclosed Breakers
Gas-insulated breakers save space and protect from bad weather. Enclosed types keep out dust and water.
Studies show high voltage industrial circuit breaker types are very reliable. Researchers use deep learning to watch vibration data. They can find faults with over 95% accuracy. New designs have backup systems and smart monitoring for safety. You can use smart tools to find problems before they cause outages.
Tip: High voltage breakers need regular checks. You should use sensors and software to watch how they work and plan repairs.
Industrial circuit breaker types are sorted by voltage level. Each place has its own risks. Studies show voltage sags and faults are different for each class. You must pick the right breaker for your system. This keeps your equipment safe and your work running well.
How Circuit Breakers Work
Operating Principles
Circuit breakers stop dangerous electrical currents. They open the circuit if something is wrong. Most industrial circuit breakers sense trouble in two ways. The first way is thermal protection. A bimetallic strip heats up if too much current flows. If the current stays high, the strip bends and trips the breaker. This breaks the contacts and stops electricity. For example, a miniature circuit breaker rated at 16A will trip if the current goes over 16 amps for too long.
The second way is electromagnetic protection. When a short circuit happens, the current rises very fast. This strong current makes a magnetic field in a coil inside the breaker. The magnetic force moves a lever and opens the contacts almost right away. You see this in miniature circuit breakers with ratings from 6A to 50A and voltage from 100V to 240V AC. After the breaker trips, you can reset it by hand after fixing the problem.
Tip: Circuit breakers use both thermal and electromagnetic systems. These protect against different types of faults.
Protection Mechanisms
Circuit breakers protect people and equipment from electrical dangers. They use several protection mechanisms to do this job well.
- Overload protection keeps wires from getting too hot. The bimetallic strip reacts to slow, steady increases in current.
- Short circuit protection acts very fast. The electromagnetic coil trips the breaker in milliseconds when a sudden surge happens.
- Some breakers, like RCCBs, find earth leakage. They trip if they sense current flowing where it should not, like through a person.
Technical studies show you can make breakers more reliable by tracking failure patterns. Researchers use physics-based models and AI tools to guess when a breaker might fail. For example, you can use machine learning to spot problems in high-voltage SF6 breakers before they cause outages. You also get help from condition-based maintenance, which uses real-time data to plan repairs and keep your system safe.
Note: Modern circuit breakers often have sensors and digital monitoring. These features help you find faults early and reduce downtime.
Comparison Table
Advantages and Limitations
There are many ways industrial circuit breaker types are different. Each type has things it does well and things it does not. The table below shows what you get with Vacuum, SF6 Gas, and Air Circuit Breakers:
| Aspect | Vacuum Circuit Breaker (VCB) | Gas Circuit Breaker (SF6) | Air Circuit Breaker (ACB) |
|---|---|---|---|
| Arc Quenching Method | Vacuum interrupter extinguishes arc | Sulfur hexafluoride gas cools and extinguishes arc | Uses air as insulating medium |
| Voltage Range | Medium voltage (up to ~33 kV) | High voltage (35 kV to 500 kV) | Low to medium voltage (0-33 kV) |
| Maintenance | Low, but can degrade from metal in vacuum | Low, longer life than ACB | Higher, being replaced by VCB in medium voltage |
| Market Share (2024) | Fastest growth due to eco concerns | Largest share for high voltage breakers | Declining, replaced by VCB in medium voltage |
| Environmental Impact | Eco-friendly, SF6-free technology | SF6 is a strong greenhouse gas, facing regulations | Less reliable, less impact than SF6 |
| Challenges | High initial cost, complex retrofits | High cost, complex in old systems | Reliability issues in medium voltage |
| Rated Current Segment | 500 A to 1500 A leads market | N/A | N/A |
| Market Drivers | Grid upgrades, renewables, SF6 alternatives | Superior arc-quenching in high voltage | Phased out for vacuum breakers |
Tip: When you pick a breaker, think about how it works and how it affects the environment.
Typical Applications
You see different circuit breaker types in many places. The table below shows where each type works best and how the market uses them:
| Circuit Breaker Type | 2024 Market Value (USD Billion) | 2035 Projected Value (USD Billion) | Typical Application Contexts |
|---|---|---|---|
| Miniature Circuit Breakers | 3.0 | 4.15 | Residential and commercial overload protection |
| Molded Case Circuit Breakers | 2.5 | 3.4 | Industrial and commercial overcurrent protection |
| Air Circuit Breakers | 2.0 | 2.8 | High voltage substations and large-scale energy |
| Hydraulic Magnetic Circuit Breakers | 1.78 | 2.15 | Critical infrastructure, precise operation |
You can also see how the market is changing in this chart:
- Miniature Circuit Breakers (MCBs) keep homes and offices safe.
- Molded Case Circuit Breakers (MCCBs) protect factories and big buildings.
- Air Circuit Breakers (ACBs) are used in substations and heavy-duty places.
- Oil Circuit Breakers are still used for some high-voltage jobs, but not as much now.
Note: More renewable energy and better power grids mean people want advanced circuit breakers that work fast and handle big loads.
Selection Guide
Key Criteria
When you pick industrial circuit breaker types, you must check some important things. Each thing helps you find the right breaker for your system. This keeps people and equipment safe.
- Voltage Rating: The breaker must match your system’s voltage. If you use the wrong voltage, it can be unsafe or not work well.
- Current Rating: Pick a breaker that fits your system’s normal current. If the rating is too low, it will trip too often. If it is too high, it might not trip when needed.
- Interrupting Capacity: This is the biggest fault current the breaker can stop. Always pick a breaker with enough interrupting capacity for your system. This keeps your equipment safe if there is a short circuit.
- Frequency: The breaker’s frequency rating must match your system. Using the wrong frequency can make the breaker wear out faster.
- Trip Characteristics: Breakers have types like Type B, C, or D. Type B trips fast at low currents. Type D waits for bigger surges before tripping. Pick the type that fits your equipment.
- Number of Poles: Use single-pole breakers for simple jobs. Use multi-pole breakers for three-phase systems or to control many circuits.
- Environmental Resistance: Make sure the breaker can handle heat, dust, water, or chemicals. Look for IP ratings or special certificates for tough places.
- Testing and Maintenance: Choose breakers that are easy to test and fix. UL listing and regular checks help your system work well.
- Physical Size and Installation: The breaker must fit in your panel. It should be easy to put in, even if space is small.
Tip: You can adjust tripping levels on some breakers. This helps you protect your system better and stop false trips.
Application Considerations
Think about where and how you will use the breaker. Different places and systems need different breakers.
| Consideration Category | Key Points |
|---|---|
| Environmental Factors | High heat can make breakers trip early. Cold can make them less sensitive. Wet air can hurt breakers not made for it. |
| Application Recommendation | Pick breakers made for your environment. Use moisture-resistant ones for wet places or high-temp ones for hot areas. |
| System Compatibility | Make sure the breaker works with your wires and other parts. This stops false trips and keeps things safe. |
| Standards Compliance | Use breakers that meet IEC or UL rules. This makes sure they are safe and reliable in factories. |
Some new systems use AI and machine learning to change breaker settings as needed. These smart tools help you handle changing loads and find problems early. You can also use special tools to watch your breakers and plan repairs before something breaks. This keeps your system working longer and stops downtime.
Note: When you pick industrial circuit breaker types, think about the future. Choose breakers that are easy to upgrade and fix. This keeps your system safe and working well as your business grows.
There are many industrial circuit breaker types you can pick. Each type is best for certain places and jobs. You need to choose a breaker that fits your system.
- The interrupting capacity and frequency rating must match your setup.
- You can use adjustable trip levels to protect different loads.
- Breakers with environmental resistance work well in hard conditions.
- UL Listing and the right number of poles make things safer and more reliable.
If your system is complicated, ask an expert for help. This helps you stay safe for a long time.
FAQ
What is the main difference between MCB and MCCB?
MCBs are for small circuits with less current. MCCBs work with bigger currents and let you change trip settings. You use MCBs for things like lights and outlets. MCCBs are for big machines and main panels.
What should you check before choosing a circuit breaker?
Check the voltage and current ratings first. Look at the interrupting capacity and number of poles. Make sure the breaker fits your job and where you will use it.
What does “interrupting capacity” mean?
Interrupting capacity is the most fault current a breaker can stop. Pick a breaker with enough interrupting capacity for your system. This keeps people and equipment safe.
What makes SF6 circuit breakers special?
SF6 circuit breakers use a special gas to stop arcs fast. They work well in high-voltage systems. These breakers are very reliable and act quickly.
What maintenance do industrial circuit breakers need?
You should check, clean, and test breakers often. Watch for damage or signs of wear. Use sensors or digital tools to help plan repairs.
