The rcd electrical full name is residual current device. You use an rcd to help stop electric shock and fires. An rcd works by turning off power very fast. It does this if it finds a difference in the current between the live and neutral wires. This difference means electricity might be leaking. The leak could go through a person or bad wiring. Every rcd electrical full name shows its main job, which is to keep you safe. You often see a residual current device in homes and workplaces for extra safety. When you pick an rcd, you add a key safety layer to your electrical system.
Key Takeaways
- RCD means Residual Current Device. It helps keep people safe from electric shock and fires. It does this by turning off power fast when it finds dangerous electricity leaks.
- RCDs check the current in live and neutral wires. If they see a difference, they shut off power. This means electricity could be leaking through a person or bad wiring.
- Using RCDs at home or work adds extra safety. They are very helpful in wet or risky places like bathrooms and kitchens. This lowers the chance of getting hurt or having a fire.
- Devices like RCCBs, RCBOs, and MCBs have similar but different jobs. RCDs look for electricity leaks. The other devices protect against too much current or short circuits.
- You should test your RCD often with the test button. This makes sure it works right. It helps keep your electrical system safe and follows safety rules.
RCD Electrical Full Name
RCD Full Form
You might ask what the rcd electrical full name means. RCD means residual current device. This is the official name in many countries. You will see this name in Europe, Asia, and Australia. The rcd full form is important because it explains the device’s job. In North America, people often say GFCI. GFCI stands for ground fault circuit interrupter. Both names are for devices that stop electric shock. But the rcd electrical full name is used in most places.
Note:
The rcd electrical full name, residual current device, is in big electrical codes like IEC 60364 and BS 7671. These codes say you must use RCDs in places like consumer units and distribution boards. This is extra important for circuits in wet areas.
You may hear other names for a residual current device in different countries:
- Residual-Current Circuit Breaker (RCCB)
- Ground Fault Circuit Interrupter (GFCI)
- Earth Leakage Circuit Breaker (ELCB)
These names show that the same safety device has different names in different places.
Residual Current Device
A residual current device is a safety tool for your electrical system. Its main job is to stop electric shock and fires. The device checks the flow of electricity in the live and neutral wires. If it finds a difference, some current is leaking. The leak could be through a person or a bad wire. The rcd quickly turns off the power. This fast action keeps you safe.
The technical meaning of a residual current device comes from international standards like IEC 60755 and IEC 61008-1. These rules say an rcd must find different types of current, like AC and DC. The device uses coils and a magnetic core to sense any imbalance. When the live and neutral wires do not match, the rcd trips and cuts off the circuit.
Here is a simple table to help you learn the main parts of a residual current device:
| Part | What It Does |
|---|---|
| Current Transformer | Senses current in wires |
| Trip Mechanism | Disconnects power if fault detected |
| Test Button | Lets you check if RCD works |
The rcd electrical full name has been around for a long time. Early patents for these devices were made in the early 1900s. The name residual current device became common in the 1950s. Today, you see this name in safety rules and codes.
You use a residual current device to make your home or work safer. The rcd full form reminds you that it looks for dangerous leaks of electricity. When you see the rcd electrical full name, you know the device is there to keep you safe.
How RCDs Work
Detecting Leakage Currents
A residual current device helps find dangerous electricity leaks. The rcd checks current in both live and neutral wires. If the currents match, the device does nothing. If a leak happens, the currents do not match anymore. This can happen if electricity escapes through a bad wire or a person. The rcd notices this change.
Inside each residual current device is a toroidal current transformer. The live and neutral wires wrap around the core in opposite ways. If the currents are equal, no magnetic field appears. If there is a leak, a magnetic field forms. This field triggers the detection winding. The winding sends a signal to the trip mechanism.
Here is a table that shows the main parts and what they do:
| Component | Description and Operation |
|---|---|
| Current Transformer | Finds imbalance between live and neutral currents; helps detect leaks. |
| Detection Winding | Makes current when there is an imbalance; starts the trip mechanism. |
| Tripping Mechanism | Cuts off the circuit to stop harm or fire. |
| Test Button | Lets you check if the rcd works by making a fake leak. |
| Reset Button | Turns the device back on after it trips so you can use it again. |
Most rcds can find leaks as small as 5 to 30 milliamps. Household devices usually set at 30 milliamps for safety. The device acts fast, often in 25 to 40 milliseconds, to turn off power.
How RCDs Prevent Electric Shock
The main job of a residual current device is to keep you safe from electric shock. The rcd watches the current in your wires all the time. If you touch a live wire, some current may go through your body to the ground. The rcd finds this imbalance right away.
When the device sees a leak above its limit, it starts the trip mechanism. This opens the main contacts and shuts off power almost instantly. You stay safe because the rcd acts before the shock can hurt you. The device does not stop overloads or short circuits, but it does block most shocks from bad wiring or accidents.
Modern rcds work in single-phase and three-phase systems. You can test the device with the test button, which makes a pretend leak. After tripping, you reset the device to turn power back on. Rules like IEC 60364 say you need rcds in many places to lower the risk of injury or fire. No device is perfect, but using a residual current device makes electric shock much less likely at home or work.
Importance of RCDs
Safety in Homes and Workplaces
You want your home and work to be safe. An rcd is a special safety switch. It protects you and your family from electric dangers. Using an rcd gives you more safety than fuses or circuit breakers. The rcd finds small leaks of electricity. It shuts off power in just milliseconds. This quick action helps stop injury or death from electric shock.
Many safety rules say you must use rcds at home. They are needed in risky places like bathrooms, kitchens, garages, and outdoor outlets. You can put in at least two rcds to split your circuits. This way, you do not lose all power if one rcd trips. Some lights or outlets will still work. Portable rcds help when you need extra safety. Use them during repairs or with power tools outside.
At work, rcds are just as important. Safety rules say you must use rcds between power and equipment. This is extra important outdoors or in wet places. Bosses need to test and check rcds often. Workers should use electrical equipment safely and tell about any problems. Testing and changing rcds every 10 to 15 years keeps everyone safe.
Tip:
Test your rcd every month with the test button. This easy step makes sure your rcd works when you need it.

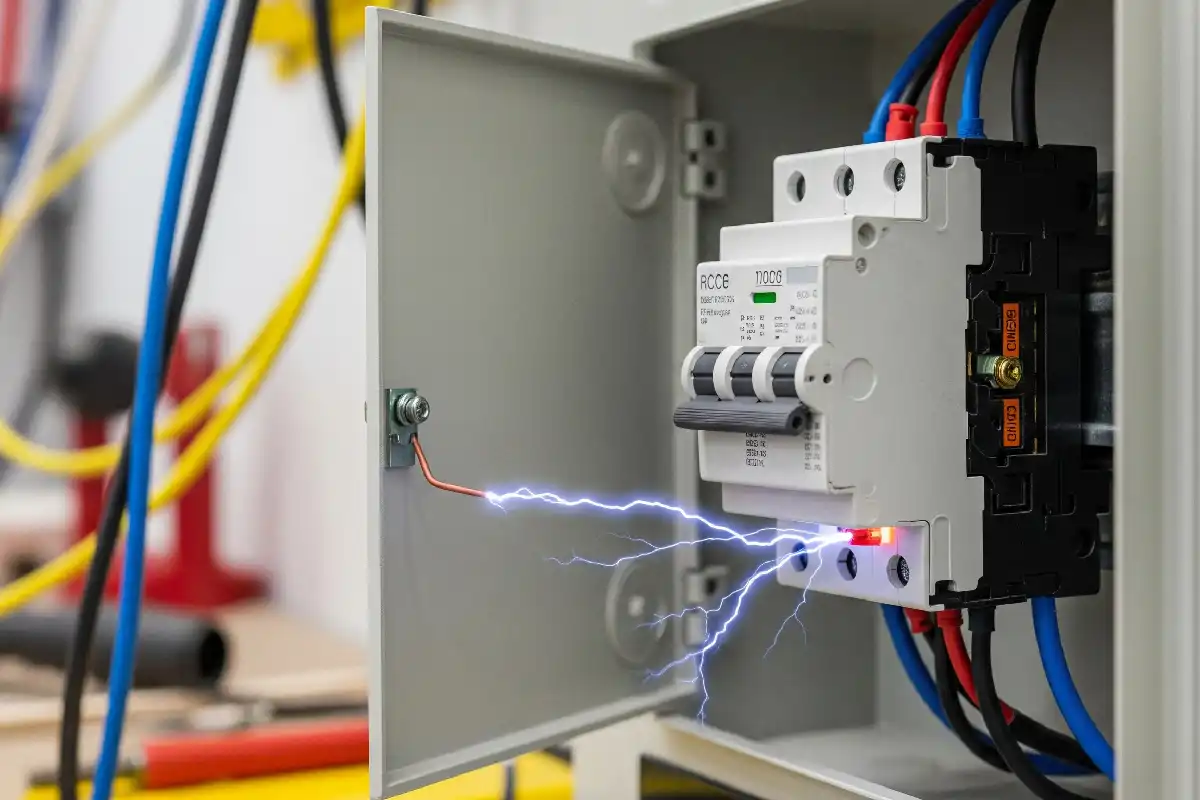

Fire and Shock Prevention
Rcds help stop fires and electric shocks. If there is a ground fault or bad insulation, the rcd turns off power fast. This device gives earth leakage protection. It stops dangerous currents from going where they should not.
Rccb devices are a type of rcd. They find even tiny leaks and trip quickly. They work better than old devices like elcbs. Rccb units protect against all kinds of residual currents. They are a smart choice for new homes. You also see rccb protection with electric car chargers or solar systems.
Rcds do more than stop shocks. They help find broken appliances early. This lowers the risk of fire. You can use rcds for fixed wiring or portable needs. This makes them cheap and easy to add at home or work. By using rcds, you follow new safety rules. You keep your family and coworkers safe.
RCD vs Similar Devices
RCD vs RCCB
You might ask how an rcd is different from an rccb. An rcd is any device that finds leakage currents and shuts off the circuit to stop electric shock. The rccb is a special kind of rcd. It only looks for residual currents and trips if it finds a problem. The rccb does not stop overloads or short circuits. You need another device for full protection. Some rcds can have more features, like overcurrent protection, based on their design.
| Aspect | RCD | RCCB |
|---|---|---|
| What it does | Detects leakage currents, may have extra features | Detects leakage currents only |
| Overcurrent protection | Sometimes (if combined with MCB, as in RCBO) | No |
| Use | Many types and uses | Earth leakage protection only |
| Complexity | Can be simple or advanced | Simple, focused on leakage detection |
Note: All rccbs are rcds, but not all rcds are rccbs.
RCD vs RCBO
An rcbo is another kind of rcd. It means residual current breaker with overcurrent protection. The rcbo does what an rccb and a miniature circuit breaker do together. It gives both earth leakage and overcurrent protection in one device. This makes the rcbo a smart pick for new homes and places where you want each circuit fully protected. The rcbo saves space and wiring since you do not need two devices.
| Feature/Aspect | RCCB | RCBO |
|---|---|---|
| Earth leakage | Yes | Yes |
| Overcurrent | No | Yes |
| Use | Needs extra MCB | All-in-one for each circuit |
| Best for | General protection | Modern panels, kitchens, bathrooms |
RCD vs MCB
You might see both an rcd and an mcb in your panel. The mcb, or miniature circuit breaker, stops too much current or short circuits. It does not find earth leakage or protect from electric shock. The rcd, including the rccb, looks for leakage currents and keeps you safe from shocks. You often use both for full safety.
| Aspect | MCB | RCD/RCCB |
|---|---|---|
| Main job | Stops overloads and short circuits | Stops earth leakage and shocks |
| Sensitivity | Rated by amps | Rated by milliamps |
| Test button | No | Yes |
| Use | Circuit protection | People protection |
RCD vs GFCI
In North America, you may hear ground fault circuit interrupter, or gfcI. The gfcI works just like an rcd. Both find current imbalances and trip the circuit to stop electric shock. The main difference is the name. You see gfcIs in the United States and rcds in other countries. Both work the same way and keep you safe from earth faults.
Tip: If you see gfcI or rcd, know both protect you from electric shock by finding leakage currents.
You might also hear about the earth leakage circuit breaker. This older device gave earth leakage protection but is not used much now. Today, you use rcds, rccbs, and rcbos for better safety.
You have learned that RCD stands for residual current device. This device keeps you safe from electric shock and fire. It works by turning off power very fast if it finds dangerous currents. Big safety groups say RCDs are very important for protecting people and buildings. To stay safe, pick the right device for your needs. Test your RCD often. Always follow expert tips when you install or take care of it. Using RCDs helps you follow safety rules and keeps your home or work safe.
FAQ
What does an RCD do in your home?
An RCD watches the flow of electricity. It turns off power if it finds a leak. This helps protect you from electric shock and fire.
What should you do if your RCD keeps tripping?
You should unplug all devices and reset the RCD. Plug in each device one at a time. If the RCD trips again, you may have a faulty device or wiring.
What is the difference between an RCD and a circuit breaker?
An RCD protects you from electric shock by detecting current leaks. A circuit breaker protects your wiring from too much current or short circuits. You need both for full safety.
What appliances need RCD protection the most?
You should use RCDs with appliances in bathrooms, kitchens, and outdoors. These places have more risk of electric shock because of water.
What is the test button on an RCD for?
The test button lets you check if your RCD works. Press it once a month. If the RCD trips, it works correctly. If not, you should replace it.
