The acdb electrical full name is Alternating Current Distribution Box. In electricity and solar panel systems, the ac distribution box sends AC power from the main source or inverter to different circuits. The acdb controls how electricity moves, gives isolation, and protects against surges. The ac distribution box uses things like circuit breakers and surge protection to keep the system safe. In a solar acdb, it links the inverter to home appliances and checks power levels. Unlike a direct current distribution box, the ac distribution box works with alternating current in homes and solar power plants. The acdb is important for safe and efficient solar power generation.
Key Takeaways
- ACDB means Alternating Current Distribution Box. It sends AC power safely to different circuits in homes and solar systems.
- The ACDB uses circuit breakers, surge protectors, and terminal blocks. These parts control electricity flow and protect devices from too much power and sudden spikes.
- It is important in solar power. It connects the inverter to appliances or the grid. This helps power move safely and efficiently.
- ACDBs follow strict safety rules. They use strong materials to stop fires, shocks, and damage to equipment.
- Picking the right ACDB makes electrical systems safer. It also makes fixing things easier. This helps power systems work better and last longer.
ACDB Electrical Full Name
Meaning of ACDB
The acdb electrical full name means “Alternating Current Distribution Board.” Some people also call it the “Alternating Current Distribution Box.” The acdb is important in moving electricity after the inverter changes DC to AC. It helps send AC power safely to different places or even to the grid. In solar panel systems, the acdb links the inverter to home devices or the grid. This makes sure electricity moves safely and works well.
You can find the acdb electrical full name in many standards and lists. Both “Alternating Current Distribution Board” and “Alternating Current Distribution Box” mean the same thing. The acdb helps control, protect, and watch how electricity moves in homes, businesses, and solar plants. The acdb panel has safety devices and meters to check and control electricity. People use the acdb in both regular and solar setups to keep things safe and working right.
AC Distribution Box Explained
The ac distribution box is set up in homes, businesses, and factories. It sends AC from the main source or inverter to different circuits. The ac distribution box has circuit breakers, meters, and sometimes smart parts. These help control and protect the electricity flow. In a solar acdb, the box handles AC power after the inverter changes DC from solar panels. The ac distribution box can also connect to the grid for safe power transfer.
Note: The ac distribution box is not the same as a direct current distribution box (dcdb). The dcdb works with DC before the inverter. The ac distribution box handles AC after the change.
The ac distribution box is different from other boxes. The table below shows the main ways they are not the same:
| Aspect | AC Distribution Box | Other Distribution Boxes (DC Combiner Box, Temporary Box) |
|---|---|---|
| Current Type | Handles alternating current (AC) after inversion | DC boxes handle direct current (DC) before inversion; temporary boxes are portable and ruggedized for short-term use |
| Voltage Range | Standard AC voltages (120V to 480V) | DC boxes handle higher DC voltages (600V-1500V); temporary boxes typically 220V-415V AC |
| Components | Use standard AC-rated breakers and components | DC boxes require specialized DC-rated components; temporary boxes have basic breakers and sockets designed for portability |
| Safety Features | Overcurrent protection, grounding, UL/NEC compliance | DC boxes need arc-fault detection and rapid shutdown; temporary boxes have quick-disconnect and GFCI protection |
| Application | Residential, commercial, industrial fixed installations | DC boxes mainly in solar PV systems; temporary boxes for construction sites, events, emergency response |
| Installation | Hardwired, permanent installation | DC boxes require specialized installation knowledge; temporary boxes are plug-and-play portable units |
| Portability | Fixed, permanent | Temporary boxes are portable with wheels and handles; DC boxes are fixed but specialized |
| Lifespan | Long-term (10-20 years) | Temporary boxes short-term (months to few years); DC boxes long-term but require careful maintenance |
The ac distribution box can handle more current, sometimes up to 2000A. It works with normal voltage levels from 120V to 480V. It uses AC-rated breakers and parts to keep things safe. The ac distribution board gives overcurrent protection and grounding. It follows safety rules like UL and NEC. The dcdb and solar dcdb work with DC and need special safety tools, like arc-fault detection.
In solar panel systems, the solar acdb makes sure power from the inverter gets to devices or the grid safely. The ac distribution board is a permanent part of a building. Temporary boxes are portable and used for short times. The ac distribution box helps manage power for many years. It is a trusted part of any ac dc distribution panel board.
The acdb electrical full name shows its main job: to send AC safely and well. The ac distribution box is needed for both regular and solar power systems. It keeps electricity moving smoothly and protects people and equipment from problems.
ACDB Functions
Power Control
The acdb is like the main center for electricity in buildings. It gets power from the main supply or from inverters. Then, it splits this power into different circuits. Each circuit sends electricity to a certain area or device. This makes sure every part of the building gets power safely. The ac distribution box uses bus bars and wires to guide the energy. This helps spread out the load so nothing gets too much power. In a solar acdb, the box handles power after the inverter changes DC to AC. It connects the solar plant to home devices or the grid.
The acdb also helps with checking and controlling power. Circuit breakers and fuses inside the box watch the flow of electricity. If there is too much current, they shut off that circuit. This stops damage and keeps things safe. The acdb puts all the important parts in one place. This makes it easy to check and fix things.
Protection Features
The ac distribution box has many ways to keep people and equipment safe. It has circuit breakers, fuses, and surge protectors. These protect against too much power, short circuits, and voltage spikes. The table below shows what each part does to keep the system safe:
| Component | Function |
|---|---|
| Circuit Breakers | Find overloads and short circuits; turn off power to stop danger |
| Fuses | Melt if there is too much current; cut off power to stop harm |
| Surge Protectors | Move extra current from lightning or faults; stop equipment damage |
| Isolator Switches | Let people disconnect power safely for repairs |
| Self-Resetting Over/Under Voltage Protectors | Turn off power if voltage is too high or low; turn it back on when safe |
The acdb sits between the inverter and appliances. This makes it very important for connecting the solar plant. It stops power from going backward during outages, which keeps workers safe. The acdb also helps keep wires neat and circuits easy to find. Both acdb and dcdb systems need regular checks and expert setup to stay safe. The ac distribution box and dcdb are key for safe electricity in solar and regular systems.

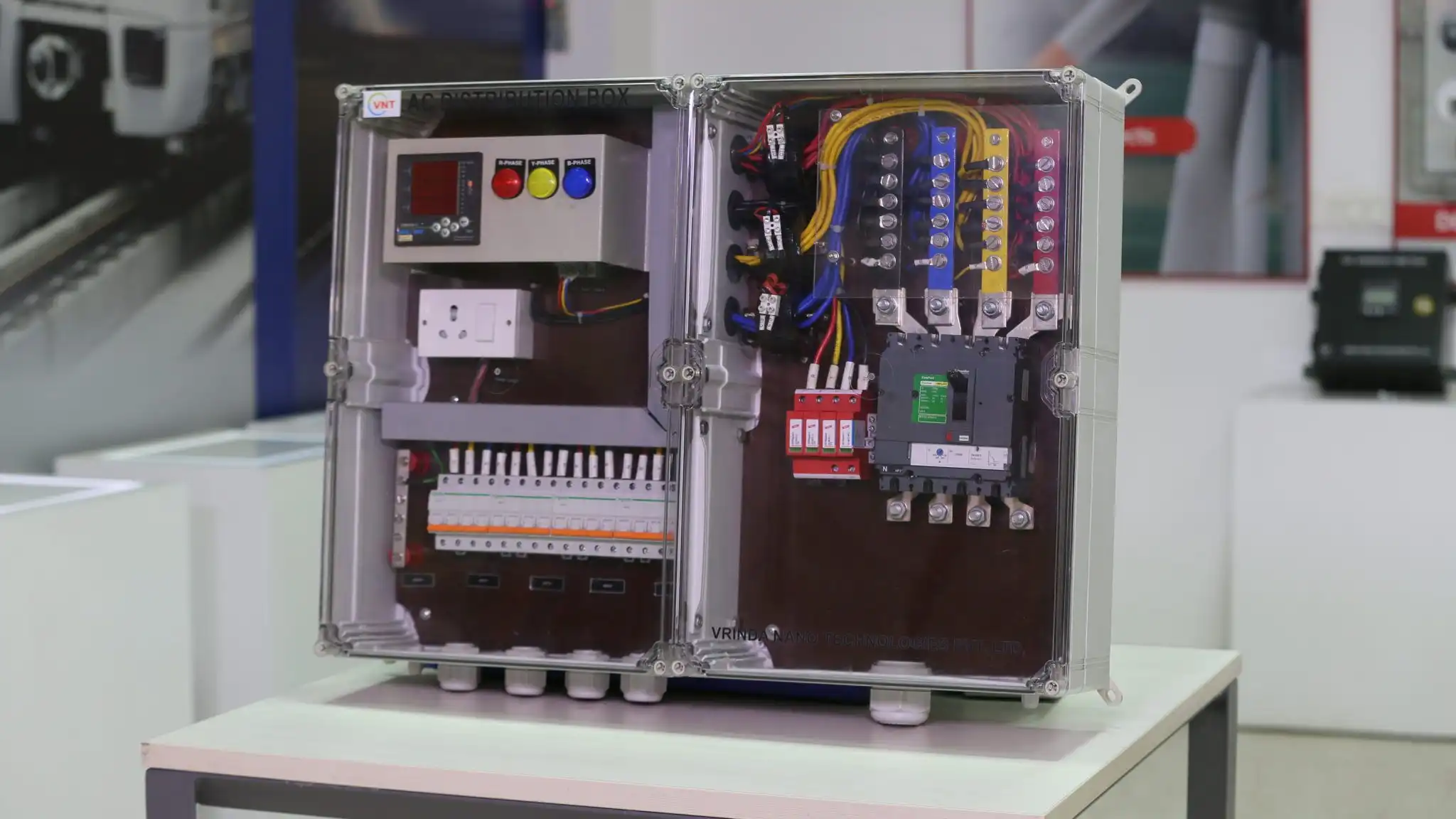

AC Distribution Box Components
An acdb has many parts that help send power safely. Each part has a job to keep people, equipment, and the system safe.
Circuit Breakers
Circuit breakers are the main safety parts in an acdb. They control how electricity moves and stop damage to circuits. The acdb uses mcb and mccb types. The mcb protects small things like lights and outlets. The mccb handles bigger currents and acts as the main switch. Breakers find overloads or short circuits and turn off power fast. This stops fires or damage to equipment. Each breaker controls a different circuit, like lights or air conditioning. This makes it easy to find and fix problems.
Tip: You can also use circuit breakers to turn power off by hand. Status lights show if a circuit is open or closed. This helps you check things quickly.
Surge Protection
Surge protection devices (SPDs) in the acdb stop sudden voltage spikes. These spikes can come from lightning or problems in the power grid. SPDs work very fast and send extra voltage safely to the ground. This keeps appliances and electronics safe from harm. It also saves money on repairs and lowers fire risk. Type 2 SPDs are common and protect all things connected to the panel.
- SPDs have special parts like metal oxide varistors and gas tubes.
- They are the first defense against bad surges.
- Good setup and the right size are needed for full safety.
Terminal Blocks
Terminal blocks keep wires neat and safe inside the acdb. They give safe spots for wires, making setup and fixing easier. Each block uses clamps to hold wires tight for good contact. Barriers between blocks stop wires from touching by mistake. This lowers the chance of shock. Labels on terminal blocks help you find circuits fast. This makes things safer and repairs quicker. Terminal blocks must be rated higher than the system’s top current and voltage. This stops them from getting too hot.
Note: Cable glands are also used in the acdb to protect cables coming in. They stop cables from pulling out and keep dust and water out. This helps keep connections safe.
All these parts—breaker, mcb, mccb, SPD, cable glands, and terminal blocks—work together to keep the acdb safe. They stop overloads, protect from surges, and keep wires neat. This helps deliver power safely in every electrical system.
Importance of ACDB
Safety
ACDB is very important for keeping people and equipment safe. It helps stop electrical dangers in homes and solar systems. The box is made from strong metal or weatherproof stuff. This makes it tough and hard to burn. Because of this, there is less chance of fire. ACDB also protects sensitive devices from electromagnetic waves. This keeps electronics safe.
- ACDB covers live parts so people do not touch them by mistake.
- Circuit breakers and fuses turn off power if there is too much current.
- Good grounding and earthing lower shock risk by more than 90%.
- Closed cabinets and the right height make fixing things safer.
- Easy setup and clear labels help workers not make mistakes.
ACDBs follow strict safety rules like UL, CE, and IEC codes. These marks show the box can stop fire, shock, and injury. Makers build ACDBs to meet local and world rules. This helps keep solar plants and other energy systems safe.
Efficient Distribution
ACDB helps send power the right way in homes and solar setups. It controls how energy moves from the main source or inverter to each circuit. Each circuit gets the right power. This stops overloads and keeps devices working well.
- ACDB sends power to lights, outlets, and machines in order.
- Circuit breakers protect each circuit and lower fire risk by almost 80%.
- The main breaker controls all power and lets you turn it off safely.
- Surge protectors stop voltage spikes and keep energy steady.
- Weatherproof and dustproof designs make ACDBs good for outdoor solar plants.
Modern ACDBs work with single-phase and three-phase systems. This makes them useful for many jobs. They help solar panels work safely and last longer. By following good rules, ACDBs make every system stronger and more reliable.
Knowing what AC Distribution Box means helps people understand why it matters. ACDBs keep things safe by stopping overloads and electrical problems. They help manage power better, especially in solar systems. ACDBs put safety parts together and make fixing things easier.
- ACDBs let you add more parts or upgrade later.
- They follow safety rules and use strong materials to last long.
- Neat wires and built-in safety parts lower danger and save energy.
Picking the right ACDB makes electrical systems safer and work better.
FAQ
What does ACDB stand for in electrical systems?
ACDB means Alternating Current Distribution Box. This box helps control and protect AC power. It is used in homes, businesses, and solar power systems.
What is the main function of an ACDB?
An ACDB sends AC power to different circuits. It also keeps devices safe from too much current, short circuits, and voltage spikes.
What components are found inside an ACDB?
Inside an ACDB, you find circuit breakers, surge protection devices, terminal blocks, and cable glands. These parts help keep the system safe and neat.
What makes an ACDB important in solar power systems?
The ACDB links the inverter to home devices or the grid. It makes sure AC power moves safely after the inverter changes DC from solar panels.
