A load wire carries electrical power from a switch to the device you want to use, like a light or an outlet. You need to know which wire is the load, because confusing it with the live or neutral wires can cause problems. When you work with wires, you stay safer and make better choices if you understand their differences.
Key Takeaways
- The load wire sends electricity from a switch to devices. It only has power when the switch is on. The live wire always has power from the source. It can be dangerous to touch at any time. The neutral wire sends current back to the power source. It helps keep devices safe. Always turn off power before touching wires. Test wires before you touch them. Do not trust wire color alone to know what it is. Mixing up load, live, and neutral wires is risky. It can cause shocks, damage, or fires. Always double-check and use the right tools. Call an electrician if you are not sure.

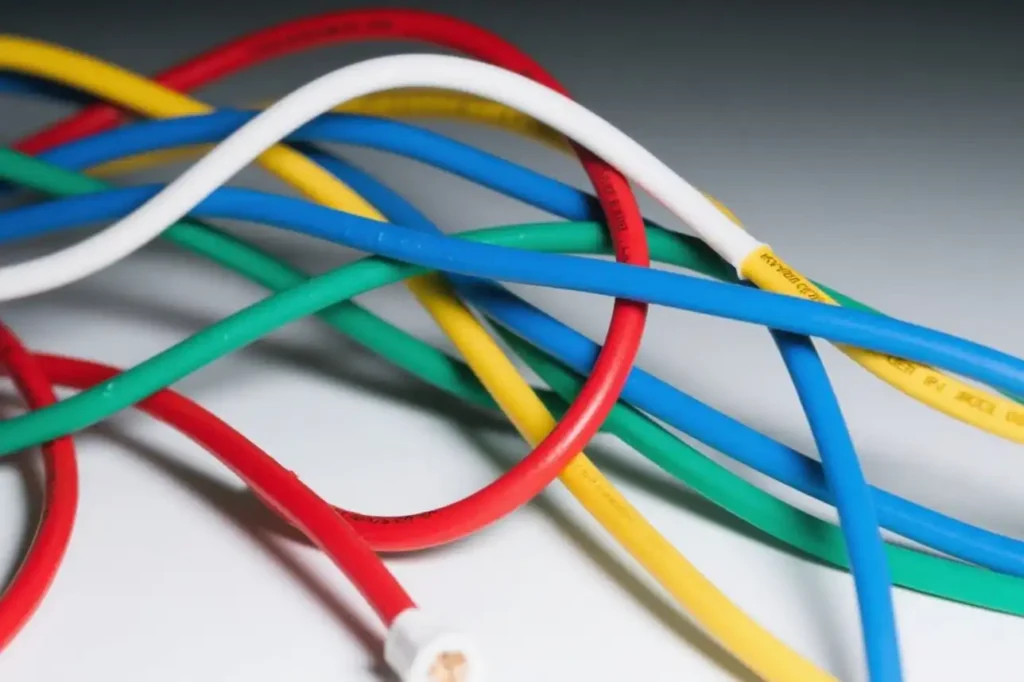

Load Wire
Definition
A load wire is an important part of your home’s wiring. You see it in switches and outlets. The load wire moves electricity from a switch or outlet to the next device. It is not the same as the line wire. The line wire brings power into the box from the main source. The load wire sends electricity out to other devices.
Tip: Think of the load wire as the “delivery route” for electricity after it goes through a switch or outlet.
Here is how a load wire works in a home:
- The load wire moves power from one device to the next.
- It sends electricity from switches or outlets to other lights or appliances.
- The load wire leaves an electrical box or device.
- The load wire for one outlet can become the line wire for the next outlet.
Function
The load wire only has power when the circuit is complete. This happens when you turn on a switch. Then, the load wire sends power to the device you want to use, like a light or fan.
- In a normal home, the load wire gets power only when it connects to the live wire and the switch is on.
- The load wire does not have power by itself. It needs the switch or outlet to finish the path.
- When the switch is off, the load wire does not move electricity.
- The load wire helps electricity reach more devices, so each one gets power when needed.
| Wire Type | Function in Energy Delivery to Appliances |
|---|---|
| Line (Live) | Brings power from the source into the box or device; always has power and gives electricity to the circuit. |
| Load | Moves power from switches or outlets to other appliances or lights; sends electricity onward after it comes in from the line wire. |
Note: In North America, the load wire is often black or red. In Europe, it is usually brown. Always check your local rules before working with wires.
If you connect a device to the wrong wire, it might not work or could be dangerous. For example, using the wrong wire can break the device, cause shocks, or start a fire. Always make sure you find the load wire before you start any electrical work.
Live and Neutral Wires
Live (Line) Wire
The live wire, also called the line or hot wire, brings electrical power into your home’s circuits. You can think of it as the main source of energy for your lights, outlets, and appliances. The live wire always carries voltage, even when a switch is off. This means you should treat it with care at all times.
- In most homes in the United States, the live wire carries 120 volts for regular outlets and lights.
- Large appliances, like ovens or dryers, often use 240 volts. These use two live wires together.
- The standard system in North America is called a 120V/240V split-phase system. Each live wire has 120 volts compared to the neutral wire. When you measure between two live wires, you get 240 volts.
Tip: The live wire is usually black or red in the United States. In Europe and the UK, it is brown.
Neutral Wire
The neutral wire completes the electrical circuit by carrying current back to the power source. You need the neutral wire for your devices to work. It works with the live wire to form a complete loop, so electricity can flow.
- The neutral wire provides a return path for electric current.
- It helps balance voltage and keeps your devices running safely.
- The neutral wire also helps protect you. If there is a problem, it gives a path for extra current, which lets circuit breakers or fuses shut off the power.
| Country/Region | Neutral Wire Color |
|---|---|
| United States | White or Gray |
| Canada | White or Gray |
| Europe (IEC) | Blue |
| UK | Blue |
| Indonesia | Blue |
Note: The neutral wire is not the same as the ground wire. The ground wire is only for safety during faults.
The live wire always has voltage and can shock you. The neutral wire should have little or no voltage, but it can still be dangerous if damaged or wired wrong. Always check wires before you touch them. Knowing the difference between live and neutral wires helps you stay safe and avoid mistakes when working with electricity.
Differences
Roles
You need to know the roles of each wire to work safely with electricity. The live wire brings power from the source to your switch or outlet. This wire always carries voltage and poses a shock risk. The load wire sends power from the switch or outlet to your device, such as a light or fan. The load wire only carries current when the switch is on. The neutral wire completes the circuit by carrying current back to the power source. Many people think the neutral wire is harmless, but it does carry current during normal operation. It helps keep voltage steady and ensures your devices work as they should.
Tip: The live wire always has voltage, the load wire only has voltage when the switch is on, and the neutral wire carries current back to the panel.
Here is a quick comparison:
| Wire Type | Main Role in Circuit | When It Carries Current |
|---|---|---|
| Live | Brings power from source to switch or outlet | Always |
| Load | Sends power from switch or outlet to device | Only when switch is ON |
| Neutral | Returns current to power source, completes the circuit | During normal operation |
Color Codes
You can identify wires by their color, but always check your local codes before starting any project. In most homes, the live wire is black or red. The load wire often uses the same colors as the live wire, especially in switch boxes. The neutral wire is white or gray. Ground wires are green or bare copper, but they serve a different purpose.
| Wire Color | Typical Use | Description and Notes |
|---|---|---|
| Black | Live (Hot) | Carries power from panel to devices; used for switches and outlets. |
| Red | Secondary Live (Hot) | Used for switch legs and special circuits. |
| White or Gray | Neutral | Returns current to panel; can be dangerous if mishandled. |
| White with Black/Red Tape | Hot (Re-identified) | White wire marked with tape to show it acts as a hot wire in some setups. |
| Green or Bare Copper | Ground | Connects to grounding system for safety. |
| Blue and Yellow | Hot (Special Use) | Used in conduit wiring for switches or special circuits. |
Note: The load wire may be black or red, just like the live wire. Always test wires before touching them.
Safety
You must never mix up load, live, and neutral wires. Mistakes can cause shocks, damage, or even fires. The live wire always has voltage, so it is dangerous to touch at any time. The load wire becomes energized when the switch is on. The neutral wire also carries current, so it can shock you if you disconnect it while the circuit is live. Many electrical fires start because of incorrect wiring, such as connecting the live or neutral wires to the wrong terminals. Loose or poor connections can cause overheating, sparks, and burning smells. These are early signs of a possible fire.
- Neutral wires can shock you if you interrupt the path or wire them wrong.
- If you disconnect a neutral wire, your body could become the return path, which is very dangerous.
- Always treat all wires as if they are energized until you test them.
- Label wires and use proper tools to avoid mistakes.
⚠️ Warning: Faulty wiring, including mistakes with load, live, or neutral wires, is a leading cause of electrical fires in homes. Always double-check your work and stop if you are unsure.
Wire Identification
Visual Clues
You can often spot the type of wire by looking at its color and markings. Electricians use standard color codes to help you identify wires in an electrical box. Here is a table to help you recognize each wire:
| Wire Color | Function |
|---|---|
| Black | Live (hot) wire, carries power to devices or loads |
| Red | Live (hot) wire, often used in multi-switch or multi-circuit setups |
| White or Gray | Neutral wire, returns current to the power source |
| White with Black or Red Tape | Used as switch legs or travelers in multi-switch setups |
| Green or Bare Copper | Ground wire, provides safety path to earth |
Note: In older homes, wire colors may not follow modern codes. Always check before you touch any wire.
Testing
You should never rely on color alone. Testing wires helps you know exactly which one is live, neutral, or load. Here are some tools and steps you can use:
- Use a non-contact voltage tester to check for live wires without touching them.
- Try a clamp ammeter to measure current and find neutral wires.
- Use a voltmeter to match live and neutral pairs.
- Apply an ohm meter to test for continuity between wires.
- Turn off breakers one by one and see which wires lose power.
- Use wire tracers or digital multimeters for more detailed checks.
Tip: Always test a known live circuit before and after using your tester to make sure it works.
Safety Tips
You must always put safety first when working with wires. Here are some important tips:
- Turn off the power at the breaker before you start.
- Test every wire before you touch it, even if you think it is safe.
- Never trust color alone, especially in older homes.
- Use insulated tools and wear rubber-soled shoes.
- Label wires after you identify them for future safety.
- Follow local codes and get permits if needed.
- If you feel unsure, call a licensed electrician.
⚠️ Warning: Misidentifying wires can cause shocks, fires, or damage to your devices. Always double-check your work and never rush.
Here is an easy way to tell the wires apart:
- The live wire gives power to things in your home.
- The load wire takes electricity from the switch to the device.
- The neutral wire sends current back and keeps voltage steady.
You should always turn off the power before you touch wires. Use the right tools and do not trust color only. If you are not sure, ask a licensed electrician for help. Groups like the Electrical Safety Foundation International share good safety tips.
FAQ
What happens if you mix up load and live wires?
If you mix up load and live wires, your device may not work. You could also create a shock or fire hazard. Always check and label wires before you connect anything.
What tool helps you find the live wire?
You can use a non-contact voltage tester. This tool lights up or beeps when it senses voltage. Always test the tool on a known live wire first.
What color is the load wire in most homes?
In most homes, the load wire is black or red. You should always check your local wiring codes. Some homes may use different colors.
What does the neutral wire do?
The neutral wire carries current back to the power source. It completes the circuit. You need it for your devices to work safely.
What should you do before touching any wire?
You should turn off the power at the breaker. Always test every wire with a voltage tester. Never trust color alone.
