You may ask why it is important to know rcbo breaker terminology. When you know these words, you can pick, set up, and use these devices safely. Recent studies say people who know how an rcbo breaker works can better keep their homes and jobs safe from electrical dangers. You learn how this device stops things like short circuits, ground faults, and electric shocks. This glossary will help you feel sure and safe when working with electrical systems.
Key Takeaways
- RCBO breakers have two safety features in one device. They help protect you from electric shocks and too much current. They can find earth leakage and overloads very fast. They turn off the power in milliseconds to stop fires and shocks. RCBO breakers take up less space than using two separate devices. They also give better protection than RCCBs and MCBs alone. You should test the RCBO breaker often with its test button. This helps it work well and keeps you safe. Always follow the wiring instructions carefully. Call a licensed electrician to install it or if your breaker trips a lot.
RCBO Breaker Basics
What Is an RCBO?
You might ask what an RCBO is and why it helps keep you safe. RCBO breaker means Residual Current Breaker with Overcurrent. This device has two safety features in one. It works as both a Residual Current Device and a Miniature Circuit Breaker.
Here is how an RCBO breaker helps you:
- It finds earth leakage, which means it notices when electricity goes somewhere wrong, like through water or a person.
- It guards against overcurrent, like when too many things use one circuit or if a short circuit happens.
- It turns off power very fast—within milliseconds—if it finds a problem.
- It helps stop electric shocks by cutting off electricity if it senses danger.
- It lowers the chance of electrical fires by watching for small leaks that could cause things to get too hot.
- It saves space in your panel because it puts two devices together.
Tip: You often see RCBO breakers in kitchens, bathrooms, offices, and hospitals. These places need extra safety because of water or special equipment.
How RCBO Breakers Work
An RCBO breaker uses smart parts inside to keep you safe. It has two main pieces: a thermal-magnetic trip and a core balance transformer.
| Component | What It Does | How It Works |
|---|---|---|
| Thermal-magnetic tripping | Finds overloads and short circuits | Uses a strip that bends when hot (overload) and a solenoid that reacts to high current (short circuit) to trip the breaker. |
| Core balance transformer | Finds earth leakage | Checks the difference between live and neutral wires. If the current does not match, it means electricity is leaking, so the breaker trips. |
| Combined RCBO function | Stops power during faults | Both parts work together. If either finds a problem, the RCBO breaker shuts off the electricity. |
When you use an RCBO breaker, it looks for two main dangers: too much current and electricity going to the wrong place. If it finds either, it shuts off the circuit right away. This quick action keeps you, your family, and your things safe.
You might wonder how fast these breakers work. The answer depends on the type, but most RCBO breakers trip in less than a second. Here is a chart that shows how quickly different types of breakers react:
This fast response means you get protection before a shock or fire can start.
RCBO vs. RCCB

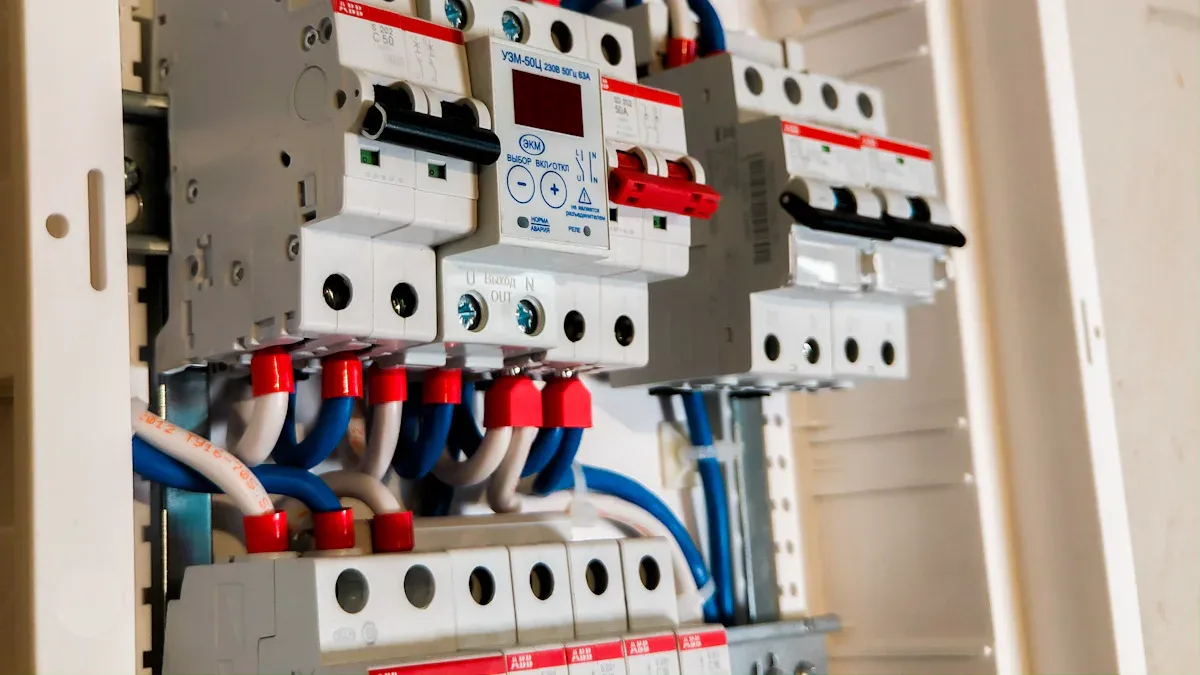

You may see both RCBO and RCCB devices in panels. It is good to know the difference so you can pick the right one.
| Device | Main Job | What It Protects Against | Where You Use It |
|---|---|---|---|
| RCCB | Finds earth leakage | Electric shock only | Places where you only need shock protection, often with another breaker for overloads |
| RCBO | Finds earth leakage and overcurrent | Electric shock, overload, and short circuit | Circuits that need full protection, like kitchens, bathrooms, or offices |
| MCB | Finds overcurrent only | Overload and short circuit | General circuits without earth leakage risk |
An RCCB only protects you from electric shocks caused by earth leakage. It does not stop problems like too much current or short circuits. You need another breaker for full safety.
An RCBO breaker gives you both kinds of protection in one device. You do not need a separate breaker for overloads or short circuits. This makes RCBO breakers a better choice for new homes and businesses, especially where space is small or you want the best safety.
Note: Experts say to use RCBO breakers in places where you need both shock and fire protection, like in new factories, offices, or homes with lots of appliances.
Key RCBO Breaker Terms
Circuit Breaker
A circuit breaker is a safety device that protects your electrical system from damage. It works by stopping the flow of electricity when it senses too much current. This can happen if you plug in too many devices or if there is a fault in the wiring. Unlike a fuse, which you must replace after it blows, you can reset a circuit breaker and use it again. Circuit breakers come in different types and sizes for homes, offices, and factories.
- Circuit breakers protect against overcurrent, such as overloads or faults.
- They automatically interrupt the current flow during dangerous conditions.
- You can reset them after they trip, making them reusable.
- Circuit breakers differ from contactors, which only switch loads on and off and cannot safely stop fault currents.
- Fuses melt and need replacement, but circuit breakers last for thousands of operations.
Tip: Always use the right type of circuit breaker for your needs. This helps prevent fires and keeps your equipment safe.
Residual Current
Residual current is the difference between the electricity going into a circuit and the electricity coming back out. In a safe system, the current in the live wire matches the current in the neutral wire. If there is a difference, it means some electricity is leaking, possibly through a person or water. This is dangerous and can cause electric shocks or fires.
An rcbo breaker measures this difference using a special sensor. If the imbalance gets too high, the breaker trips and cuts off the power. This quick action protects you from harm. The device also has a test button that lets you check if it works correctly by creating a small, safe imbalance.
Note: Even a small leakage current can be dangerous. That is why modern electrical systems use devices like rcbo breakers to watch for these problems.
Overcurrent
Overcurrent happens when too much electricity flows through a circuit. This can be caused by plugging in too many devices or by a short circuit. Overcurrent can heat up wires and start a fire if not stopped quickly.
- Overcurrent usually results from short circuits or excessive loads.
- The rcbo breaker uses two methods to detect overcurrent:
- A thermal strip bends when it gets hot from too much current.
- A magnetic coil reacts instantly to very high currents, like those from a short circuit.
- When either method senses danger, the breaker trips and disconnects the circuit.
- Some rcbo breakers have a time delay to ignore harmless surges, such as when a motor starts.
Alert: Overcurrent protection keeps your wiring and appliances safe. Always check that your breaker matches the needs of your circuit.
Trip
When you hear that a breaker has “tripped,” it means the device has turned off the power to a circuit. This happens when the breaker detects a problem, such as a current leak or too much current.
- The breaker trips to protect you from hazards like electric shock or fire.
- Common reasons for tripping include:
- Ground fault leakage currents.
- Faulty or damaged appliances.
- Moisture or dampness in the wiring.
- Incorrect breaker rating for the circuit.
- Sudden surges from motors or transformers.
- Wear and tear on the breaker itself.
Tip: If your breaker trips often, check your appliances and wiring. You may need to replace a faulty device or call an electrician.
Load and Line
When you install an rcbo breaker, you will see two important labels: “line” and “load.” These tell you where to connect the wires.
- The “line” terminal connects to the incoming power from the supply.
- The “load” terminal connects to the wires that go to your lights, outlets, or other devices.
- Always connect the incoming power to the “line” and the outgoing wires to the “load.”
- If you reverse these connections, the breaker may not work properly and could fail to protect you.
- The neutral wires also have their own terminals and must be connected correctly.
- Some breakers allow reversed connections, but only if the manufacturer says so.
- Proper wiring helps the breaker detect problems and keep you safe.
Note: Always follow the wiring instructions for your breaker. Correct connections are critical for safety and proper operation.
RCBO Breaker Components
Test Button
You will find a test button on every RCBO breaker. This button lets you check if the device works as it should. When you press the test button, it creates a small, safe fault inside the breaker. If the RCBO trips and turns off the power, you know it is working. If nothing happens, you must replace the breaker right away to stay safe.
- The test is easy and does not need special skills.
- Manufacturers recommend pressing the test button at least every six months.
- In places with higher risks, like factories, you should test it every month.
- If the breaker fails the test, record the failure and get it checked.
Tip: Regular testing helps you catch problems before they become dangerous.
Poles
The term “poles” tells you how many wires the RCBO can protect. Each pole is a path for electricity. The number of poles affects how many circuits or wires get protection.
- Single-pole RCBOs protect one live wire and monitor the neutral.
- Two-pole RCBOs can protect both live and neutral wires.
- Three-pole and four-pole RCBOs handle more wires, often used in larger or three-phase systems.
You should choose the right number of poles based on your wiring needs.
Rated Current
Rated current shows the maximum amount of electricity the RCBO can handle safely. You must pick a breaker with a rated current equal to or higher than the total current your devices use. For homes, you usually need a lower rating. For factories or places with big machines, you need a higher rating. The right choice protects your wires and stops the breaker from tripping too often.
Sensitivity
Sensitivity means how well the RCBO detects small leaks of electricity. This is measured in milliamps (mA). A common rating is 30 mA, which means the breaker trips if it senses a leak between 18 mA and 28 mA. This level of sensitivity helps protect people from electric shocks.
Note: Always check the sensitivity rating to make sure it matches your safety needs.
Breaking Capacity
Breaking capacity is the highest fault current the RCBO can stop without damage. Testing labs check this by running high currents through the breaker to see if it trips safely. Agencies like UL and BIS test and certify RCBOs to make sure they meet strict safety standards. This ensures your breaker will protect you even during serious faults.
RCBO Breaker Safety Features
Earth Leakage Protection
Earth leakage protection keeps you safe from shocks and fires. The rcbo breaker looks for small leaks in electricity. These leaks can happen if wires break or water touches them. When the breaker finds a leak, it shuts off power very fast, usually in less than 50 milliseconds. This quick action stops electricity from hurting you or starting a fire. Studies show most shocks and fires come from these small leaks. The rcbo breaker follows strict world rules, so you can trust it to keep your home or work safe.
Short Circuit Protection
A short circuit happens when electricity finds a shortcut. This can be from broken wires or bad devices. The rcbo breaker has a thermal-magnetic trip unit to sense too much current. If there is a short circuit or overload, the breaker trips right away. This keeps your wires and devices safe from harm. The rcbo breaker also protects against earth leakage, so you get more safety than with a regular circuit breaker.
| Feature/Aspect | MCB (Miniature Circuit Breaker) | RCBO Breaker |
|---|---|---|
| Overload Protection | Yes | Yes |
| Short Circuit Protection | Yes | Yes |
| Earth Leakage Protection | No | Yes |
| Application | General circuits | High-risk areas (kitchens, bathrooms) |
Manual and Automatic Reset
Most rcbo breakers let you reset them by hand after they trip. Some newer models can reset by themselves. When you reset by hand, you can check for problems first. Automatic reset brings back power after a small problem, but you should always find out why it tripped before using this.
Visual Indicators
Many rcbo breakers have lights or windows to show why they tripped. You might see a light or window if the trip was from an earth fault or if someone turned it off. These signs help you find and fix problems faster. Electricians use them to save time when checking your system.
- Earth fault lights show if a leak made the breaker trip.
- Manual trip lights show if someone turned off the breaker.
- Not all breakers have these, so check your model.
Regular Testing
Testing your rcbo breaker often keeps it working well. Press the test button every three months to make sure it trips fast. In busy places like factories, test it every day. A pro should check the trip time once a year. Write down all your tests and checks. This helps you find problems early and keeps your system safe.
Tip: Dust, water, and old age can make your breaker stop working. Clean your panel and change old breakers every 10-15 years.
Types of RCBOs and Their Applications
There are different types of rcbo breakers for different needs:
| RCBO Type | What It Detects | Where to Use It |
|---|---|---|
| Type AC | Regular AC leaks | Older homes, simple circuits |
| Type A | AC and pulsing DC leaks | Homes with electronics, computers, LED lights |
| Type B | All AC and DC leaks | Solar panels, EV charging, factories |
Type A and Type B give better safety for new devices and special equipment. Pick the right type for your home or business to stay safe.
Understanding breaker terminology helps you stay safe and make smart choices. When you use a glossary, you get clear definitions and simple explanations for tricky words. This makes you more confident when working with electrical systems.
- The glossary explains important safety terms and concepts.
- It helps you understand how breakers work and why they matter.
If you face complex problems, always ask a licensed electrician for help:
1. Electricians install and wire breakers the right way. 2. They test and maintain your system to catch problems early. 3. They spot loose wires or damage that you might miss. 4. They help you pick the best breaker for your needs. 5. Their work keeps your system safe and up to code.
Remember, knowledge keeps you and your home safe.
FAQ
What should you do if your RCBO breaker keeps tripping?
If your RCBO trips often, unplug all devices on that circuit. Plug them back in one at a time. If the breaker trips again, you may have a faulty device or wiring. Call a licensed electrician for help.
Can you replace an RCBO breaker yourself?
You should not replace an RCBO breaker yourself. Only a qualified electrician should do this job. Incorrect installation can cause electrical hazards and void your warranty.
How often should you test your RCBO breaker?
Manufacturers recommend pressing the test button every three months. In high-risk areas, test it monthly. Regular testing helps you catch problems early and keeps your system safe.
What is the difference between Type A and Type B RCBOs?
- Type A detects AC and pulsing DC faults.
- Type B detects AC, pulsing DC, and smooth DC faults.
You should use Type B for solar panels or EV chargers. Type A works for most home electronics.
