Household solar energy storage battery
This solar cell model is EBH. We are a professional solar cell manufacturer, providing a variety of specifications and customized solutions. For more information, please contact us for the complete product catalog.
Product Features：
Safety (including Level 1 LFP batteries)
After rigorous testing (IEC and UL certification)
Quick Stackable Plugin Design
Design with flexibility and configurability, 5 to 30kWh/individual cluster, 30 to 300kWh/multiple clusters * Wide inverter
compatibility (from 80-750V)
Black Start
Low temperature self heating
Easy to install (automatic cluster configuration)
Outdoor installation (IP55)
Continuous Upgrade (OTA)
10-year lifespan
Parameter specifications
| Type | EBS-100AH | ||
| Battery rating | 51.2V 100AH | 51.2V 200AH | 51.2V 300AH |
| Number of layers | 1 layers | 2 layers | 3 layers |
| Energy | 5.12KWh | 10.24KWh | 15.36KWh |
| Operating Voltage Range | 43.2V~56.16V | 43.2V~56.16V | 43.2V~56.16V |
| Dimension (L*W*H)mm | 600*210*440 | 600*210*740 | 600*210*1040 |
| Weight(KG) | 71 | 119 | 167 |
| Recommend charge current | 50A | 50A | 50A |
| MAX. charge/discharge current | 100A | 100A | 100A |
| Peak discharge current | 200A | 200A | 200A |
| LED Display | The information of Battery, such as SOC, battery working status. | ||
| Communication | Support RS485 / CAN | ||

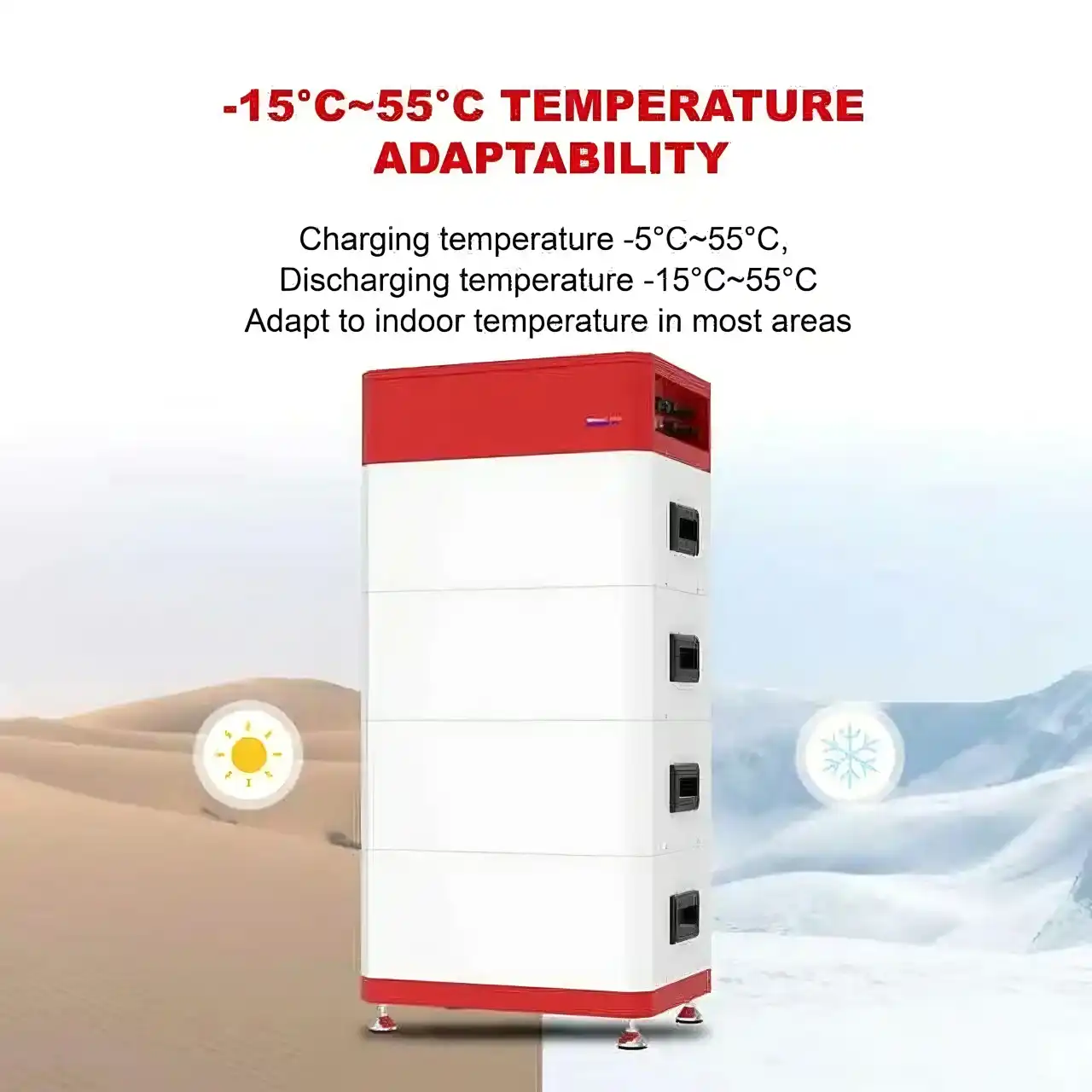

| Operating temperature | -20℃～55℃ | ||
| Environment | Indoor | ||
| Relative humidity | 5%∼95% | ||
| Cooling | Natural cooling | ||
| Cell technology | Lithium-iron phosphate (LiFePO4) | ||

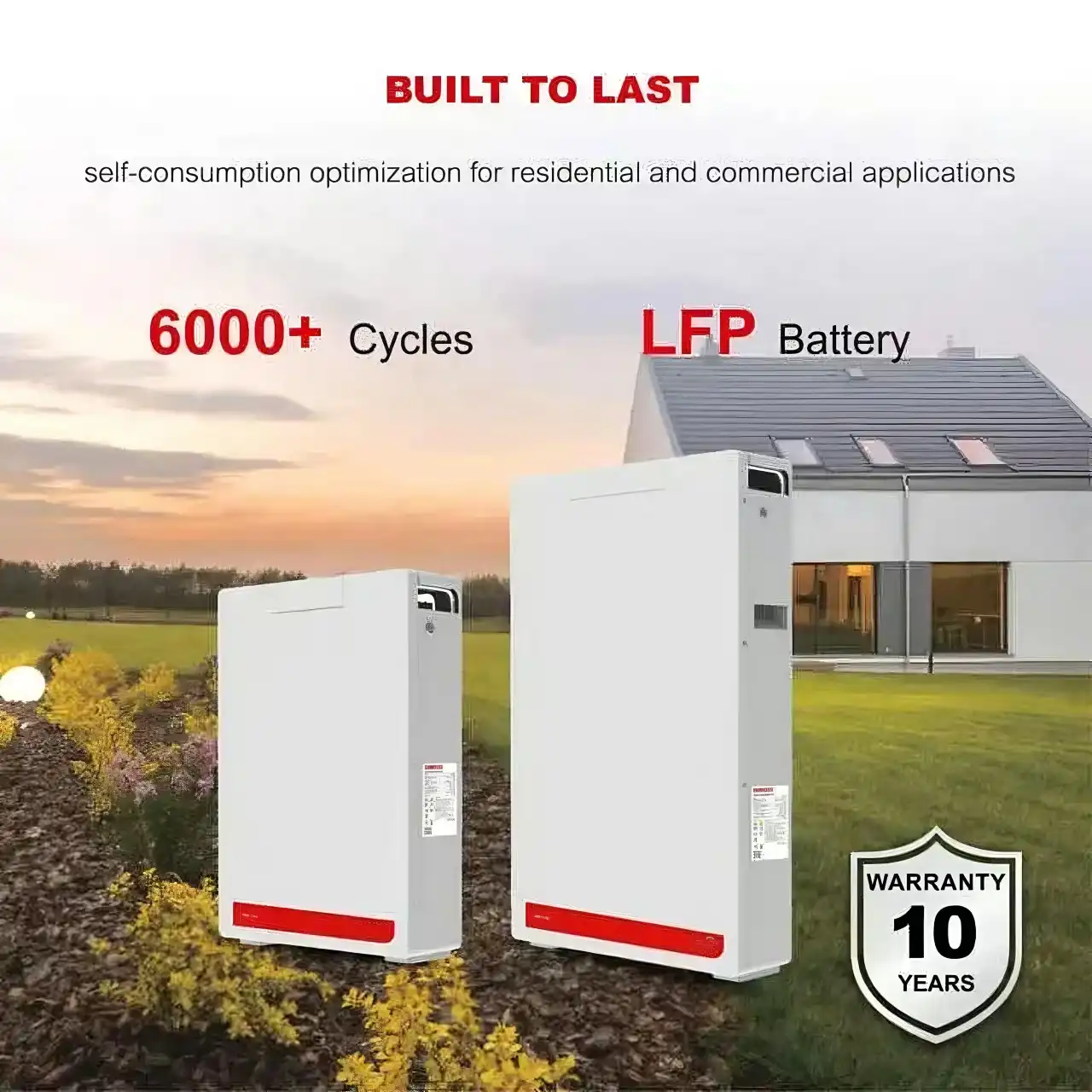

| Life cycle | 6000 times @80%DOD | ||
| Safety | IE62619 CB (ITS) IEC62040 CNAS, CE-EMC TUV,UN 38.3 | ||
| Certificates | Single module Technical Specification | ||
| Module | 51.2V 100Ah, 5.12kWh | ||
| Dimension (L*W*H) | 600*210*300mm | ||
| Battery module weight | 48KG | ||
WHY CHOOSE US
We possess a gigantic production plant with a size over 10000 square meters, which is endowed with high-grade research and development technology and is dedicated to improving the conversion rate and energy storage capacity of solar cells.
Our products are carefully designed to operate steadily in various environmental conditions and extensively used in different fields like homes, businesses, and factories, providing clean and efficient energy solutions.
We possess individual warehouses and logistics pipelines, through which we are able to closely interact with customers for freight forwarding and enable easy processing of orders. At the same time, we provide prompt delivery services to ensure that customer demands are answered and addressed in good time.
