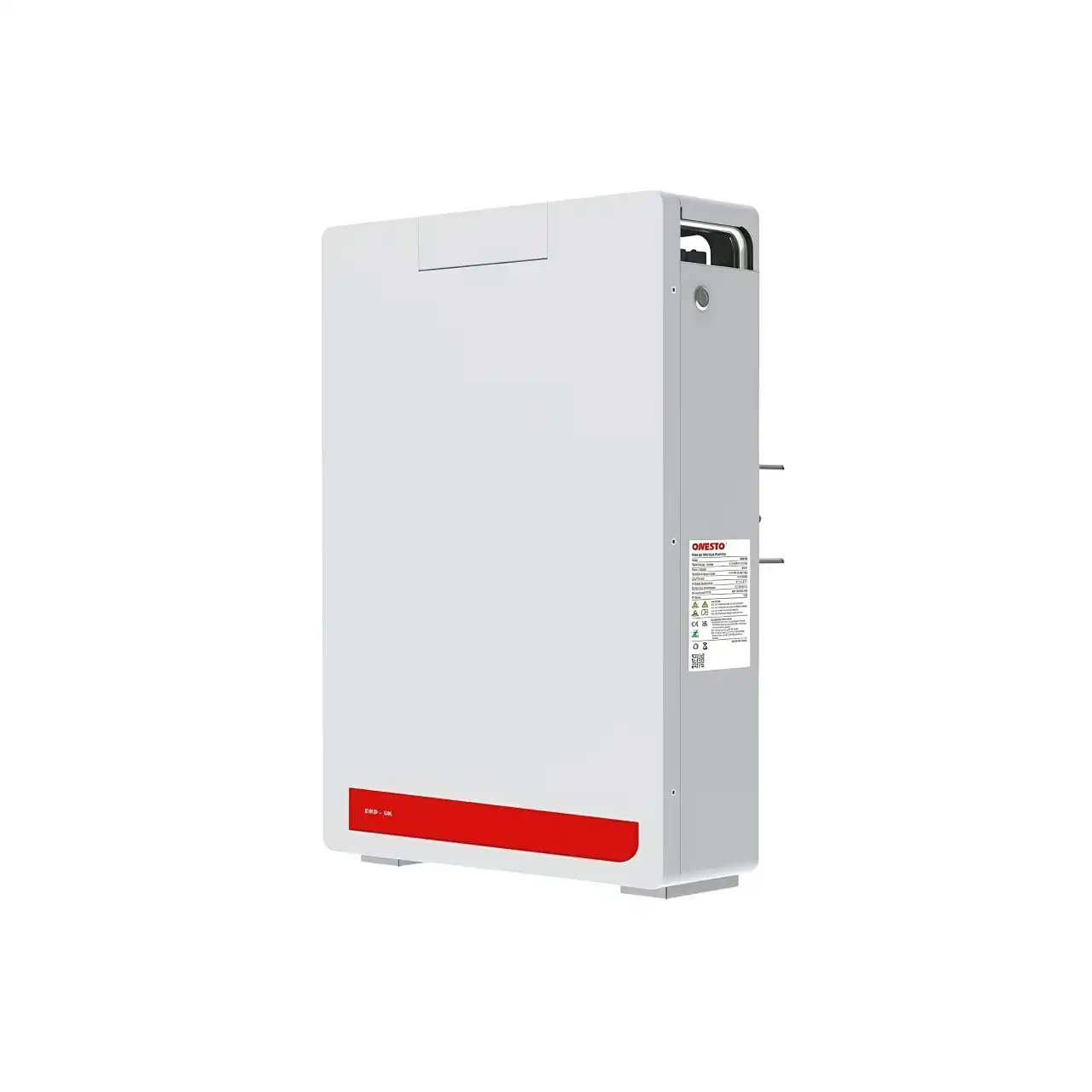

100Ah 5.12kWh 51.2V energy storage battery
Safety (with built-in first level LFP battery)
After rigorous testing (IEC and UL certification)
Flexible design, configurable (up to 32 units can be connected in parallel, supporting 160kWh at a time)
Low temperature self heating
Easy installation (automatic packaging level configuration)
Outdoor installation (IP65)
Continuous Upgrade (OTA)
10-year lifespan
Parameter specifications
| Model | EBD-5K | EBD-10K |
| Rated Capacity | 100Ah | 200Ah |
| Rated Voltage | 51.2 V | 51.2 V |
| Rated Current | 0.6C,60 A | 0.6C,120 A |
| Working Voltage Range | 44.8-58.4 V | 44.8-58.4 V |
| Rated Energy | 5.12kWh | 10.24kWh |
| Max. Parallel Quantity | Max. 32 sets in parallel ,163.84KWh | Max. 16 sets in parallel ,163.84KWh |
| Standard Charging Current | 0.6C (60A) | 0.6C , 120 A |
| Maximum Charging Continuous Current | 0.6C (60A) | 0.6C , 120 A |
| Standard Discharge Current | 0.6C (60A) | 0.6C , 120 A |
| Max Discharge Continuous Current | 1C (100A) (> 70% SOC) | 0.6C , 120 A |
| Battery Max Charge/Discharge Power | 3.07 kW/5.12 kW | 6.14 kW/6.14 kW |
| Max Discharge peak Current/Power | 105 A / 5.37 kW, 1min | 160 A / 8.19 kW, 1 min |
| Available SOC Range | 0% ~ 100% 90% (DOD is recommended) | |
| SOC Transportation Range | 50% | |
| Dimensions [W*D*H] | 460x165x652mm(±5) | 550x165x867mm(±5) |
| Weight | 50Kg | 94Kg |
| Operating Temperature1 | Charging Temperature：-5℃~55℃; Discharge Temperature：-15℃～55℃ | |
| Storage Temperature2 | -15°C ~ 55 °C | |
| Working Humidity | 5%-95% RH (Humidity Condition) | |
| Altitude | ≤2000m | |
| Communication | CAN / Rs485 / Dry Contact / WiFi(option) | |
| Certificate | IEC 62619/IEC62040/IEC61000/UN38.3 | |
| Designed Cycle Life | 6000 (0.5C/80%DOD/80%SOH/1 cycle per day) | |
| Designed Calendar Life | 15 Years | |
| IP Grade | IP65 | |
| Cooling | Natural cooling | |
| Heating Power | Max. 230.4W | |
| Environment protection standard | RoHS,REACH | |
This 100Ah 5.12kWh 51.2V energy storage battery is designed to provide efficient and reliable power storage solutions.
Adopting advanced lithium battery technology, it has excellent cycle life and stability, ensuring long-term efficient operation. Its high capacity and voltage combination make it highly suitable for energy storage needs in households, businesses, and solar energy systems.
This battery is compact in size, lightweight, easy to install and maintain, providing users with continuous and stable power support, and is an ideal choice for improving energy efficiency.
