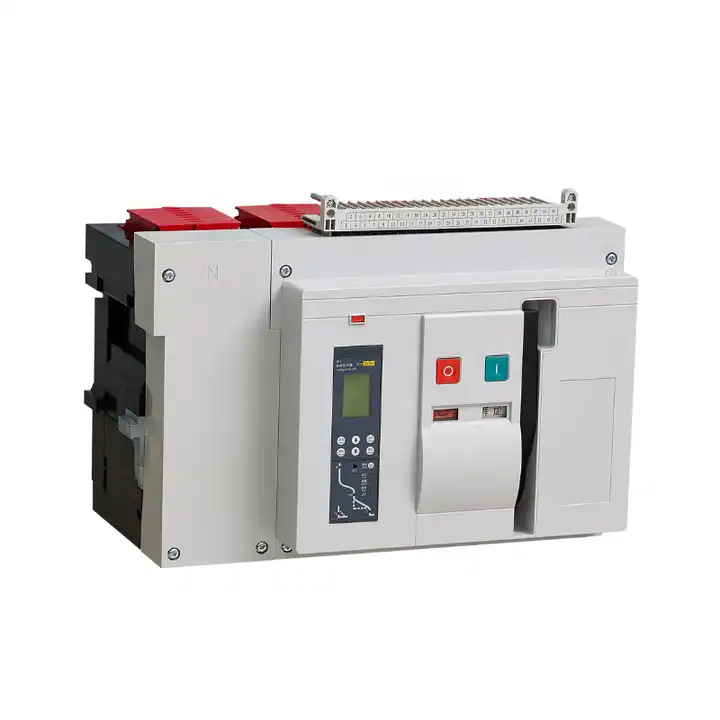

Product Introduction
Communication function: Supports different communication protocols such as Modbus, Profbus, Profinet, etc. Tang provides seamless integration with industrial automation systems.
Protection function: Provides comprehensive protection like overload, short circuit, undervoltage, and ground fault protection. Provide safe and reliable operation of the electrical system.
Measurement function: Provides measurement functions for important parameters such as current, voltage, power, and energy, enabling efficient monitoring and analysis of system performance.
Parameters and specifications
| Type | KACB1600 | KACB2500 | KACB3200 | KACB4000 | KACB6300 |
| Rated current Inm(A) | 200,400, 630,800,1000, 1250,1600 |
400,630,800, 1000,1250,1600, 2000,2500 |
2000,2500, 2900,3200 |
3200,3600, 4000 |
4000,5000, 6300 |
| Rated insulation voltage Ui(V) | 1250 | ||||
| Rated impulse withstand voltage Uimp(kV) |
12 | ||||
| Power frequency withstand voltage U(V)1min | 3500(2Ui+1000) | ||||
| Utilization category as per IEC60947-2 |
AC-3 | ||||
| Number of Poles | 3P,4P | 3P | |||
| Rated current Inm(A) for N pole | 100%In | 50%In | / | ||
| Rated working voltage Ue(VAC) | 400V / 690V | ||||
| Arc distance(mm) | 0 | ||||
| Full breaking time (without additional delay) (ms) |
30 | ||||
| Connecting time (ms) | 70(max) | ||||
Company Profile
ONESTOP Limited was established in 2007. We are a manufacturer of ACB electrical equipment. We look forward to providing our products at high quality and competitive prices, with good sales both domestically and internationally.
The company has formed an enterprise that combines production and scientific research, with strong technical strength and development capabilities. Intelligent air circuit breaker products have their own laboratories for testing. To ensure product quality.
Delivery capability
Our factory covers an area of over 10000 square meters and has multiple production workshops, allowing for fast production cycles and meeting urgent customer order needs. And it has its own large warehouse storage, which can provide sufficient production capacity and avoid supply chain interruptions
Intelligent protection
For simple installation and integration in distribution cabinets of low voltage, our intelligent air circuit breaker has developed three modular standards of design, with lower overall size and weight. Our air circuit breaker is integrated with intelligent protection function, and main components are equipped with intelligent release devices.
Customer trust
We always provide our customers with high-quality and reasonably priced products with a spirit of commitment and dedication. We are proud to say that since our establishment, our customer satisfaction has consistently remained at 98.9%.
We believe that we are your first choice for intelligent air circuit breakers, providing you with satisfactory service
